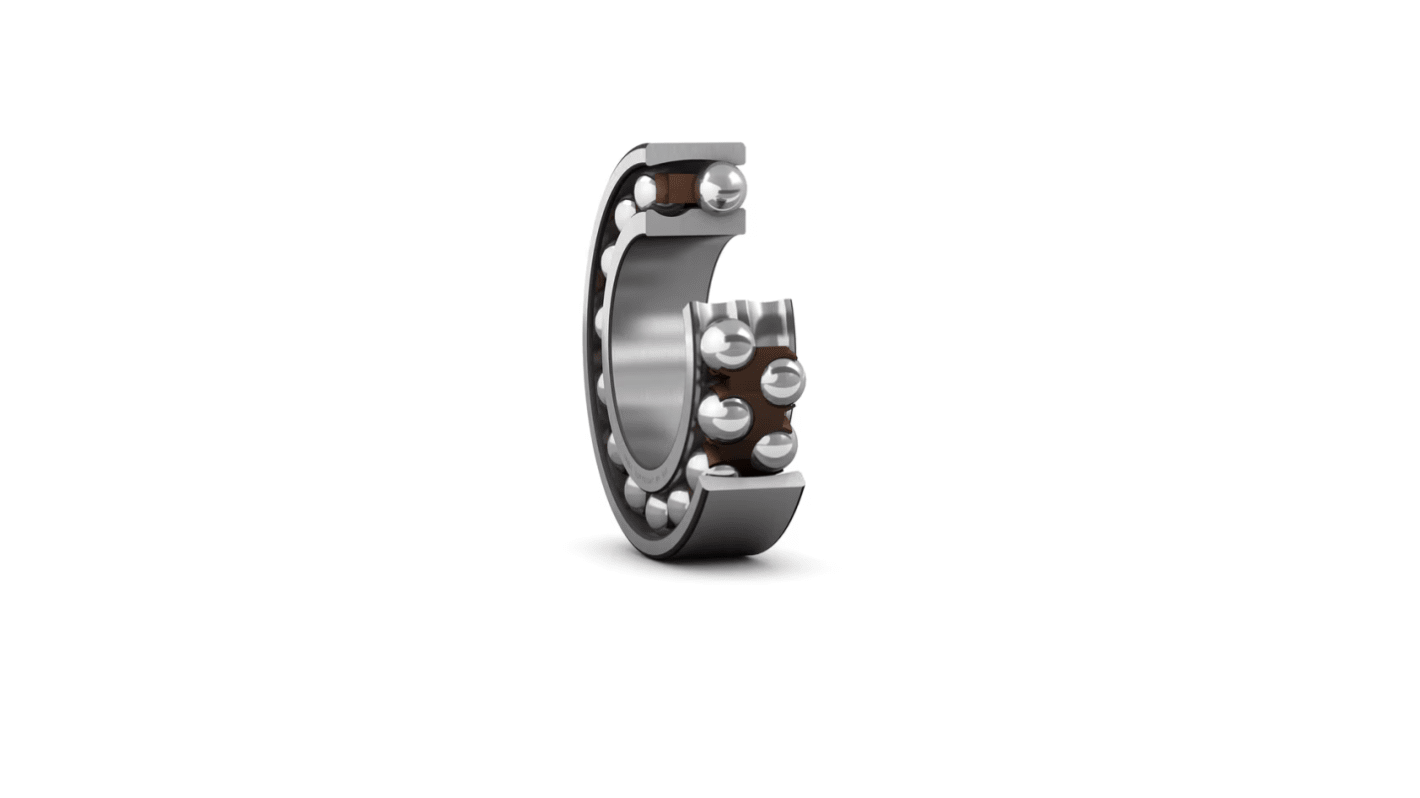

SKF 1306ETN9 Self Aligning Ball Bearing- Open Type 30mm I.D, 72mm O.D
- RS Stock No.:
- 505-805
- Mfr. Part No.:
- 1306ETN9
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£46.56
(exc. VAT)
£55.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £46.56 |
5 - 9 | £44.69 |
10 - 24 | £43.77 |
25 + | £42.87 |
*price indicative
- RS Stock No.:
- 505-805
- Mfr. Part No.:
- 1306ETN9
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 30mm | |
Outside Diameter | 72mm | |
Race Width | 19mm | |
Ball Bearing Type | Self Aligning Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 6.8kN | |
Dynamic Load Rating | 22.5kN | |
Clearance Code | CN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Race Type | Plain | |
Partial Bearing Code | 1306 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 30mm | ||
Outside Diameter 72mm | ||
Race Width 19mm | ||
Ball Bearing Type Self Aligning Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 6.8kN | ||
Dynamic Load Rating 22.5kN | ||
Clearance Code CN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Race Type Plain | ||
Partial Bearing Code 1306 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- SE
Double Row Self - Aligning
Radial Self-Aligning Ball Bearing
These bearings are designed to accommodate shaft deflection when running and will also cope with initial misalignment. The double row bearing is designed primarily to withstand radial load with a small capacity for axial load. Also available with ring seals (rubbing seals) made from oil-resistant, non-wearing synthetic rubber with steel reinforcement on both sides (Type 2RS1).
Open Bearings
ETN9 and KTN9 are Open self-aligning bearings without a seal available in parallel or Taper bores.
Sealed bearings
2RS1TN9 are sealed (NBR) bearings packed with grease with a lithium thickener suitable for temperatures from -40°C to + 100°C. They are sealed for life, so should not be heated above 80°C before mounting and must not be washed out under any circumstances.
TN suffix denotes polyamide cage
Supplied with
instruction leaflet.
SKF 3 Medium Series Self-Aligning Ball Bearing, 30mm Inside Diameter, 72mm Outside Diameter - 1306ETN9
This self-aligning ball bearing is designed for optimal performance in various mechanical applications. With an inside diameter of 30mm and an outside diameter of 72mm, this bearing features a race width of 19mm. Constructed from high-quality steel, it is specifically engineered to accommodate misalignment from mounting factors, making it a reliable choice for users across automation and mechanical industries.
Features & Benefits
• Open type design allows for easy maintenance and accessibility
• Dynamic load rating of 22.5kN supports high performance under heavy loads
• Two-row configuration enhances stability and load distribution
• CN clearance optimises operational performance in typical conditions
• Non-metallic cage minimises friction and enhances efficiency
• Dynamic load rating of 22.5kN supports high performance under heavy loads
• Two-row configuration enhances stability and load distribution
• CN clearance optimises operational performance in typical conditions
• Non-metallic cage minimises friction and enhances efficiency
Applications
• Used for electric motors for improved operational reliability
• Ideal for requiring self-aligning capabilities
• Suitable for conveyor systems for efficient transport
• Recommended for machinery in automated production lines
• Used for agricultural equipment for enhanced performance
• Ideal for requiring self-aligning capabilities
• Suitable for conveyor systems for efficient transport
• Recommended for machinery in automated production lines
• Used for agricultural equipment for enhanced performance
What is the significance of the two-row design for stability?
The two-row design enhances load distribution and stability, allowing the bearing to withstand higher radial loads without deforming, which is crucial in applications with varying loads.
How does the open type provide benefits in maintenance?
An open type design facilitates easy access, making it simpler to perform regular maintenance and inspections, which can lead to an extended service life.
Can this bearing handle misalignment effectively?
Yes, it is specifically designed to accommodate misalignment resulting from inaccuracies during installation, ensuring smooth operation in dynamic applications.
What is the impact of the CN clearance on operational performance?
CN clearance enables optimal fit and function even under normal thermal expansion conditions, ensuring the bearing operates efficiently without excessive play.
How does the non-metallic cage contribute to overall performance?
The non-metallic cage reduces friction during operation and provides better lubrication retention, which can improve the bearings overall efficiency and lifespan.
