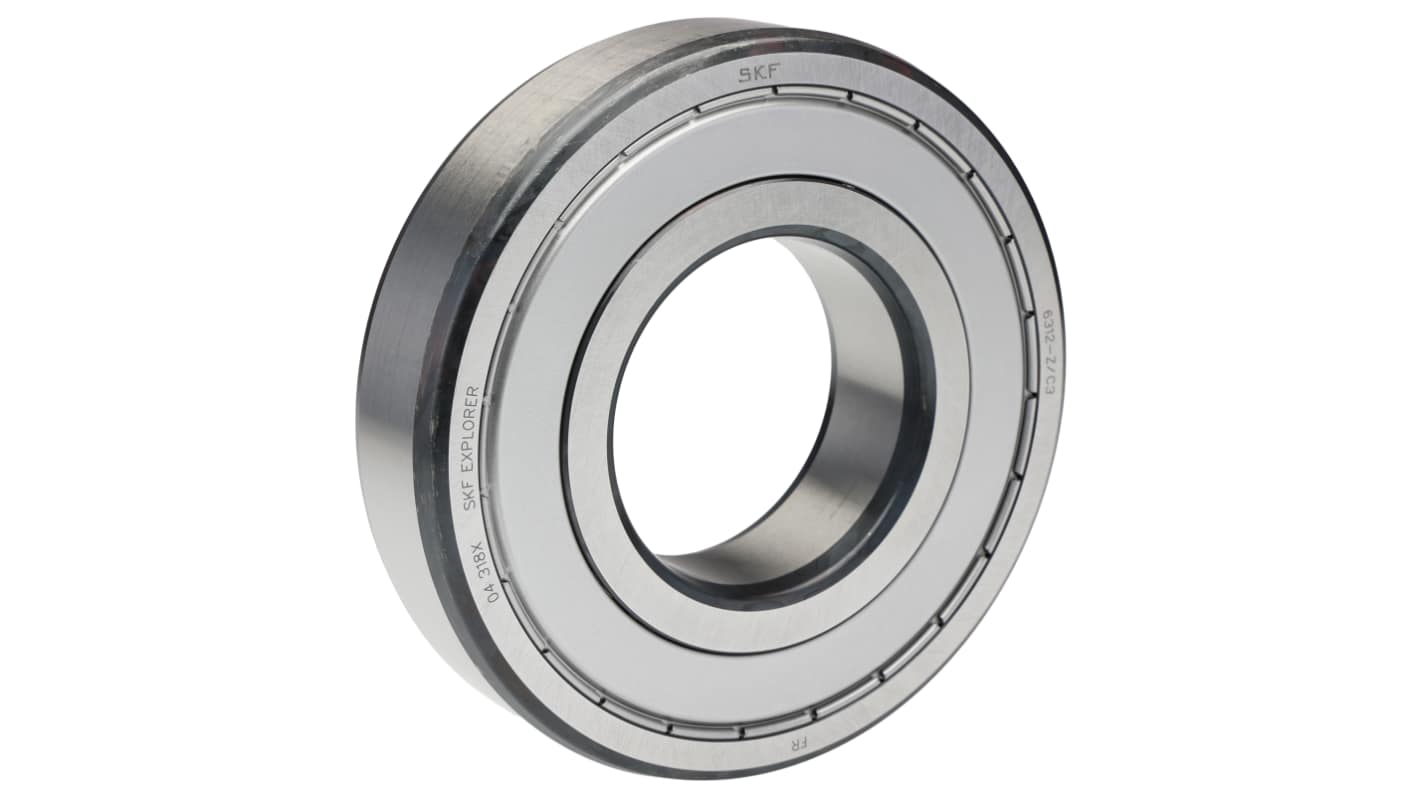

SKF 6312-Z/C3 Single Row Deep Groove Ball Bearing- One Side Shielded 60mm I.D, 130mm O.D
- RS Stock No.:
- 207-8368
- Mfr. Part No.:
- 6312-Z/C3
- Brand:
- SKF
Subtotal (1 unit)*
£123.98
(exc. VAT)
£148.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £123.98 |
*price indicative
- RS Stock No.:
- 207-8368
- Mfr. Part No.:
- 6312-Z/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 60mm | |
Outside Diameter | 130mm | |
Race Width | 31mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | One Side Shielded | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 52kN | |
Dynamic Load Rating | 85.2kN | |
Bore Type | Parallel | |
Clearance Code | C3 | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 6312 | |
Model Number p | 6312ZC3 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 60mm | ||
Outside Diameter 130mm | ||
Race Width 31mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement One Side Shielded | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 52kN | ||
Dynamic Load Rating 85.2kN | ||
Bore Type Parallel | ||
Clearance Code C3 | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 6312 | ||
Model Number p 6312ZC3 | ||
- COO (Country of Origin):
- FR
SKF Deep Groove Ball Bearing, 60mm Inside Diameter, 130mm Outside Diameter - 6312-Z/C3
This deep groove ball bearing is a robust solution designed for various applications in the mechanical and electrical industries. Known for its efficiency, it features a cylindrical bore with an inside diameter of 60mm and an outside diameter of 130mm. The shielded design ensures durability while minimising contamination from external elements. With a width of 31mm, this single row deep groove ball bearing effectively handles both radial and axial loads, making it an invaluable component in numerous machines.
Features & Benefits
• C3 bearing clearance allows for higher performance under load
• Steel construction provides enhanced strength and durability
• Shielded design reduces the risk of contamination
• Lightweight at 1.74 kg for easier handling
• Steel construction provides enhanced strength and durability
• Shielded design reduces the risk of contamination
• Lightweight at 1.74 kg for easier handling
Applications
• Used in industrial machinery requiring precise movement
• Ideal for automation systems needing reliable bearings
• Suitable for electric motor assemblies where space is premium
• Effective in conveyor systems demanding robust support
• Utilised in automotive to optimise functionality
• Ideal for automation systems needing reliable bearings
• Suitable for electric motor assemblies where space is premium
• Effective in conveyor systems demanding robust support
• Utilised in automotive to optimise functionality
What specifications ensure this component can support heavy loads effectively?
The product features a basic dynamic load rating of 85.2 kN along with a static load rating of 52 kN, making it suitable for heavy load applications.
How does the bearing's shielded design enhance its performance?
The shielded design effectively protects the bearing from dirt, dust, and other contaminants, ensuring optimal functionality and longevity.
What considerations should I take into account regarding speed limits?
It operates efficiently up to a reference speed of 11,000 r/min and a limiting speed of 7,000 r/min, which is important for maintaining performance under specific operating conditions.
