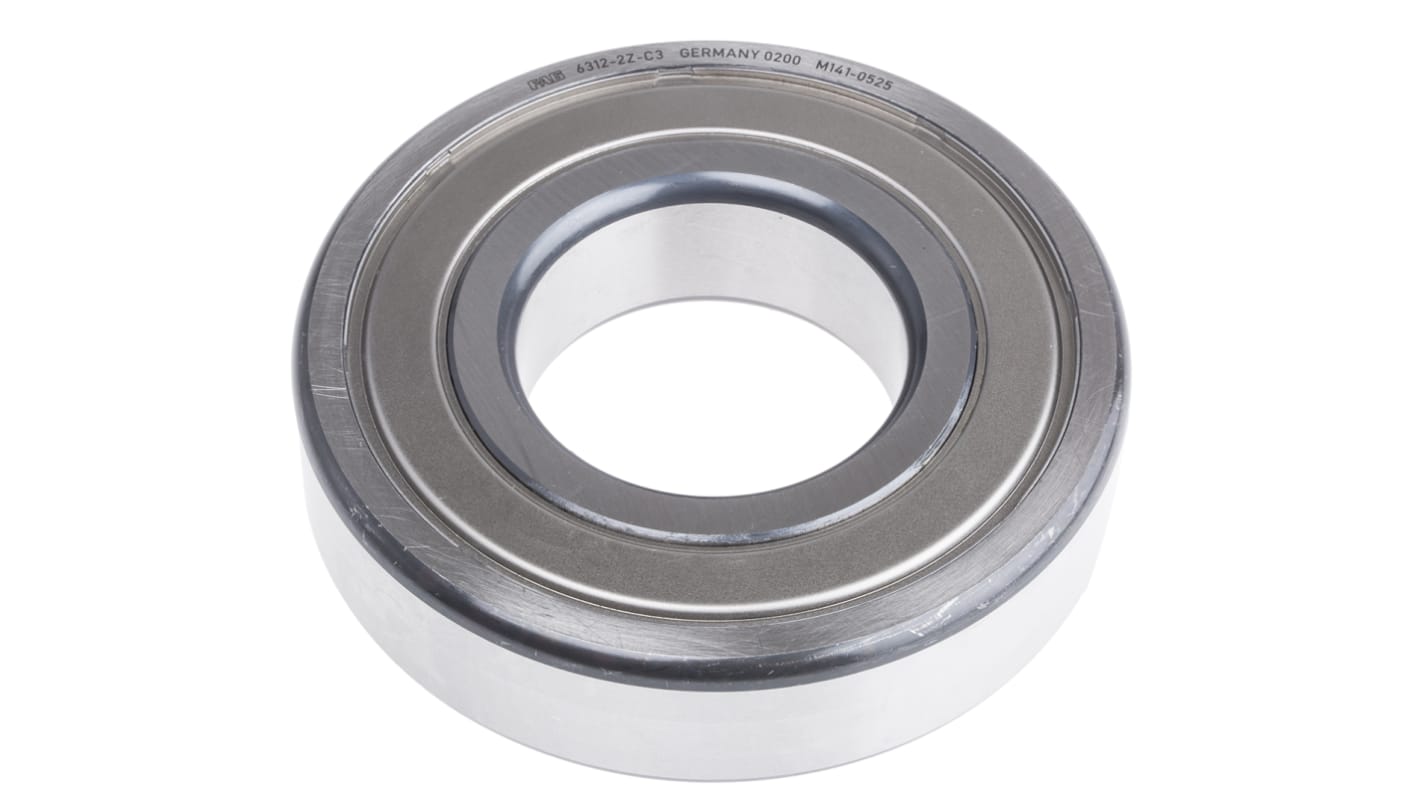

FAG 6312-C-2Z-C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 60mm I.D, 130mm O.D
- RS Stock No.:
- 137-1466
- Mfr. Part No.:
- 6312-C-2Z-C3
- Brand:
- FAG
Save 7% when you buy 25 units
Subtotal (1 unit)*
£56.95
(exc. VAT)
£68.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £56.95 |
5 - 9 | £54.65 |
10 - 24 | £53.53 |
25 + | £52.40 |
*price indicative
- RS Stock No.:
- 137-1466
- Mfr. Part No.:
- 6312-C-2Z-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 60mm | |
Outside Diameter | 130mm | |
Race Width | 31mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Steel | |
Number of Rows | 1 | |
Static Load Rating | 52kN | |
Dynamic Load Rating | 89kN | |
Bore Type | Parallel | |
Clearance Code | C3 | |
Bearing Series | 3 Medium | |
Race Type | Plain | |
Partial Bearing Code | 6312 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 60mm | ||
Outside Diameter 130mm | ||
Race Width 31mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Steel | ||
Number of Rows 1 | ||
Static Load Rating 52kN | ||
Dynamic Load Rating 89kN | ||
Bore Type Parallel | ||
Clearance Code C3 | ||
Bearing Series 3 Medium | ||
Race Type Plain | ||
Partial Bearing Code 6312 | ||
- COO (Country of Origin):
- DE
Schaeffler Deep Groove Ball Bearing, 60mm Inside Diameter, 130mm Outside Diameter - 6312-C-2Z-C3
This deep groove ball bearing is an essential component in numerous industrial applications, specifically designed to provide efficient performance in high-load environments. With a robust cylindrical bore, the bearing features a compact design, with an inside diameter of 60mm and an outside diameter of 130mm, complemented by a race width of 31mm. This product is engineered to facilitate smooth rotation while accommodating radial loads, making it ideal for various mechanical and electrical applications.
Features & Benefits
• Cylindrical bore design ensures smooth operation and alignment
• Single row configuration optimises space efficiency and operational performance
• Both sides shielded for enhanced protection against contaminants
• Features C3 bearing clearance for improved operational performance
• Single row configuration optimises space efficiency and operational performance
• Both sides shielded for enhanced protection against contaminants
• Features C3 bearing clearance for improved operational performance
Applications
• Used in electric motors for reliable movement
• Utilised in automation systems for precision
• Suitable for high-speed machinery requiring robust components
• Implemented in manufacturing equipment to reduce friction
• Applied in conveyor systems for efficient material handling
• Utilised in automation systems for precision
• Suitable for high-speed machinery requiring robust components
• Implemented in manufacturing equipment to reduce friction
• Applied in conveyor systems for efficient material handling
What materials are utilised in the construction of this component?
The component is primarily made of steel, with steel as the ball and sheet metal used for the cage, which ensures reliable performance and durability in demanding applications.
How does the shielded design benefit operational longevity?
The shielded design prevents debris and contaminants from entering the bearing, which helps maintain lubrication levels and reduces wear, thus enhancing the bearing's lifespan.
What load ratings should I expect from this type of bearing?
The bearing has a static load rating of 52 kN and a dynamic load rating of 89 kN, making it suitable for high-load applications.
What factors influence the choice of bearing clearance?
C3 bearing clearance is specified for applications where higher thermal expansion or misalignment may occur, allowing for smoother operation and extending the bearing's operational life.
