SKF 6311 NR 1 Row Ball Bearing - 55 mm ID, 120 mm OD
- RS Stock No.:
- 207-8363
- Mfr. Part No.:
- 6311 NR
- Brand:
- SKF
Subtotal (1 unit)*
£78.99
(exc. VAT)
£94.79
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £78.99 |
*price indicative
- RS Stock No.:
- 207-8363
- Mfr. Part No.:
- 6311 NR
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 55 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 120 mm | |
| Race Width | 29mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 45kN | |
| Dynamic Load Rating | 74.1kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Series | SKF Explorer | |
| Limiting Speed | 8000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 55 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 120 mm | ||
Race Width 29mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 45kN | ||
Dynamic Load Rating 74.1kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Series SKF Explorer | ||
Limiting Speed 8000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- FR

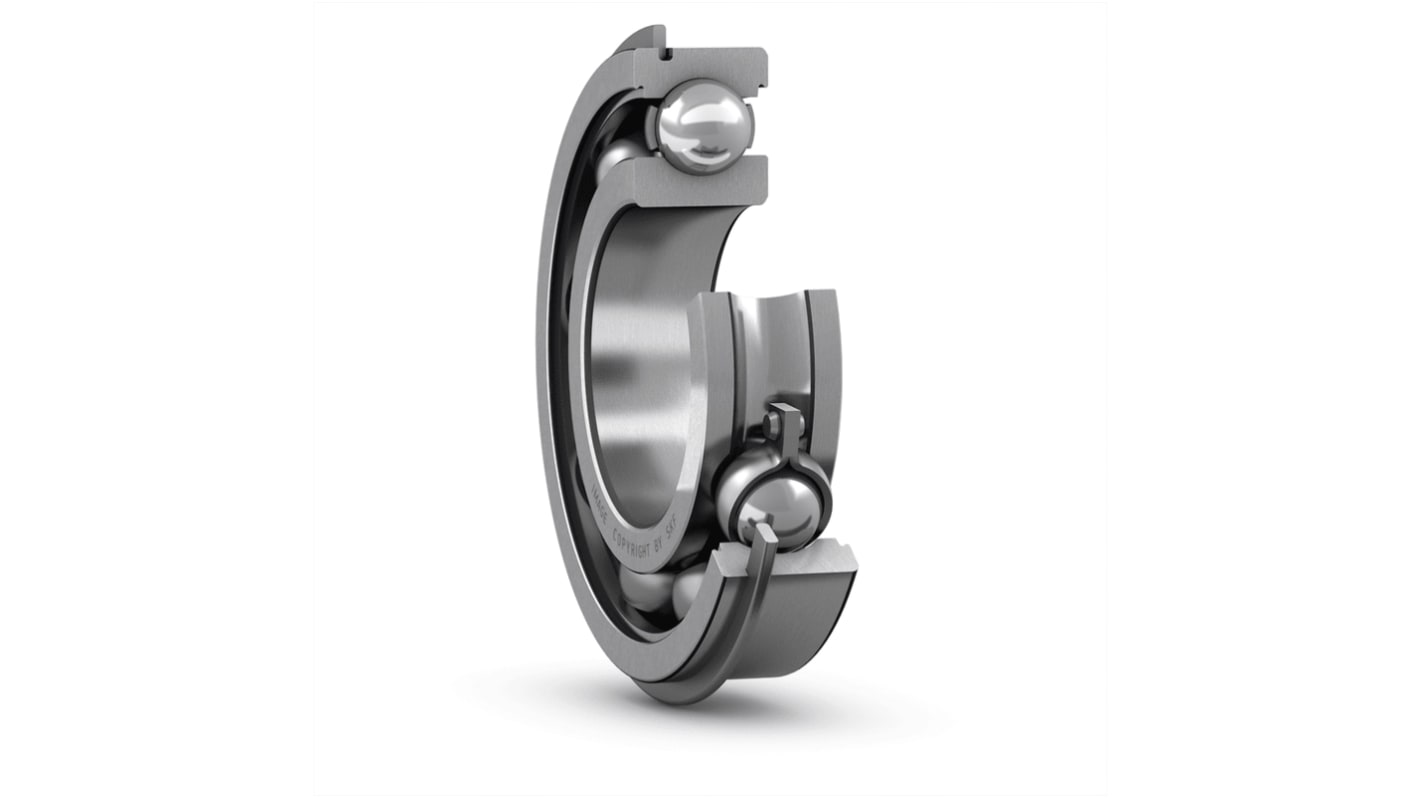

The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes. It has 55 mm ID and 129.7 mm OD.
Bearing is of bearing steel
Cylindrical bore type
