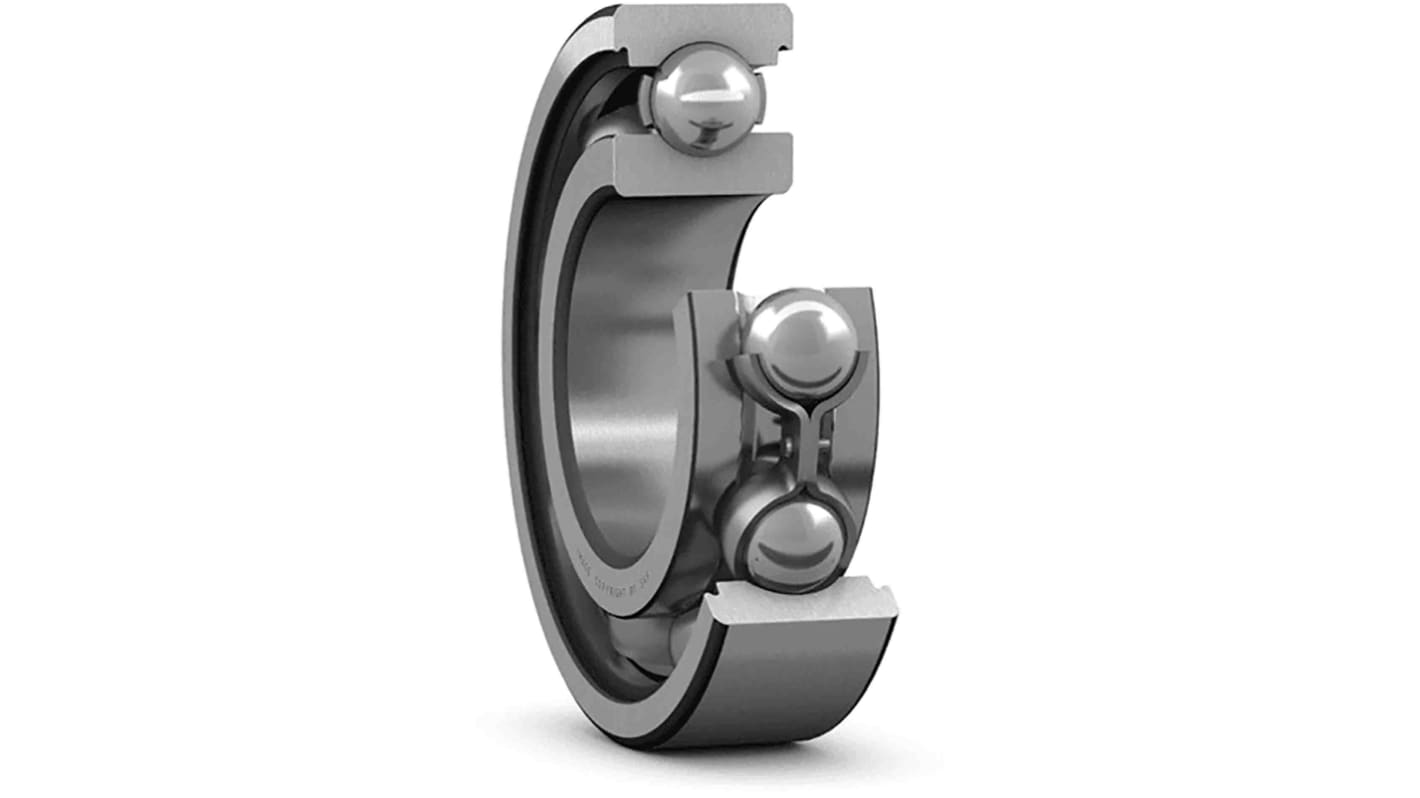

SKF 6311/C4 1 Row Ball Bearing - 55 mm ID, 120 mm OD
- RS Stock No.:
- 207-8296
- Mfr. Part No.:
- 6311/C4
- Brand:
- SKF
Subtotal (1 unit)*
£59.26
(exc. VAT)
£71.11
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £59.26 |
*price indicative
- RS Stock No.:
- 207-8296
- Mfr. Part No.:
- 6311/C4
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 55 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 120 mm | |
| Race Width | 29mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 45kN | |
| Internal Clearance | C4 | |
| Dynamic Load Rating | 74.1kN | |
| Standards/Approvals | No | |
| Series | SKF Explorer | |
| Bore Type | Parallel | |
| Limiting Speed | 8000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 55 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 120 mm | ||
Race Width 29mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 45kN | ||
Internal Clearance C4 | ||
Dynamic Load Rating 74.1kN | ||
Standards/Approvals No | ||
Series SKF Explorer | ||
Bore Type Parallel | ||
Limiting Speed 8000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- FR
The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes. It has 55 mm ID and 120 mm OD.
Bearing is of bearing steel
Cylindrical bore type
