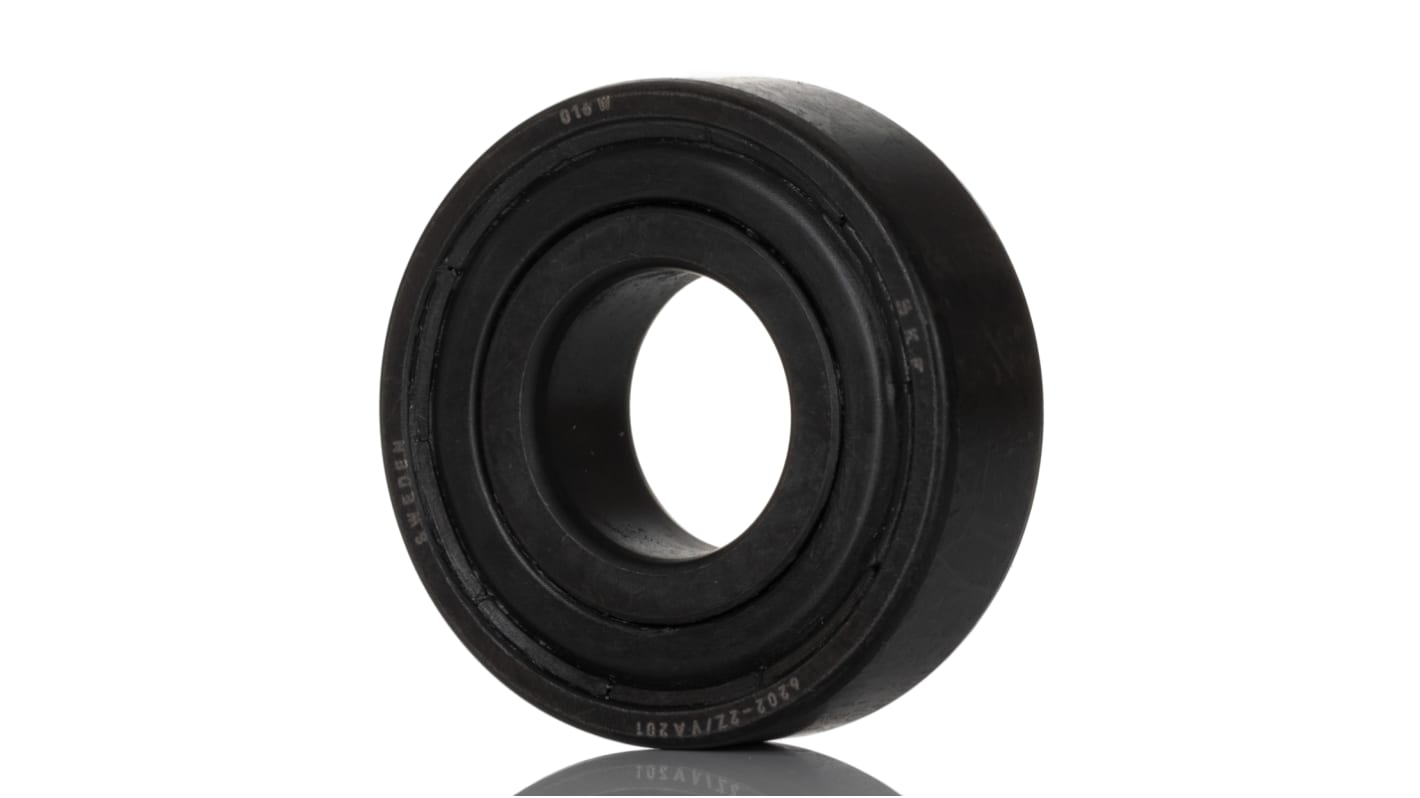

SKF 6202-2Z/VA201 1 Row Ball Bearing - 15 mm ID, 35 mm OD
- RS Stock No.:
- 207-7089
- Mfr. Part No.:
- 6202-2Z/VA201
- Brand:
- SKF
Subtotal (1 unit)*
£60.08
(exc. VAT)
£72.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 4 unit(s) shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £60.08 |
*price indicative
- RS Stock No.:
- 207-7089
- Mfr. Part No.:
- 6202-2Z/VA201
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 15 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 35 mm | |
| Race Width | 11mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Double Shielded | |
| Number of Rows | 1 | |
| Static Load Rating | 3.75kN | |
| Dynamic Load Rating | 8.06kN | |
| Standards/Approvals | No | |
| Series | 6202 | |
| Bore Type | Parallel | |
| Limiting Speed | 180rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 15 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 35 mm | ||
Race Width 11mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Double Shielded | ||
Number of Rows 1 | ||
Static Load Rating 3.75kN | ||
Dynamic Load Rating 8.06kN | ||
Standards/Approvals No | ||
Series 6202 | ||
Bore Type Parallel | ||
Limiting Speed 180rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- SE
SKF Ball Bearing, Deep-Groove Bearing Type, 15mm ID, 35mm OD, 8.06 kN Dynamic Load Rating - 6202-2Z/VA201
Get your equipment on a roll with this versatile ball bearing from SKF. With a generous C5 bearing clearance, it's suitable for rotating components at high speeds or in situations where thermal expansion or dynamic loading conditions need to be accommodated. As both sides are shielded, the race and rolling parts are protected from contamination, making this an ideal choice for use in dusty or damp environments. It's made from bearing steel for strength and durability to give you reliable performance in the long term.
Features & Benefits
• Deep-groove design supports a degree of radial load in addition to a larger axial load
• Sheet metal cage maintains the separation of the balls for efficient operation
• Steel rolling parts stand up to wear and tear for high performance and durability
Applications
• Automotive sector
• High-speed conveyors
• Aviation industry
What kind of bore does this bearing have?
This bearing has a parallel bore, making it easy to fit onto a shaft without the need for a bearing sleeve. The cylindrical outer race also helps to distribute the load evenly along the shaft for consistent operation.
