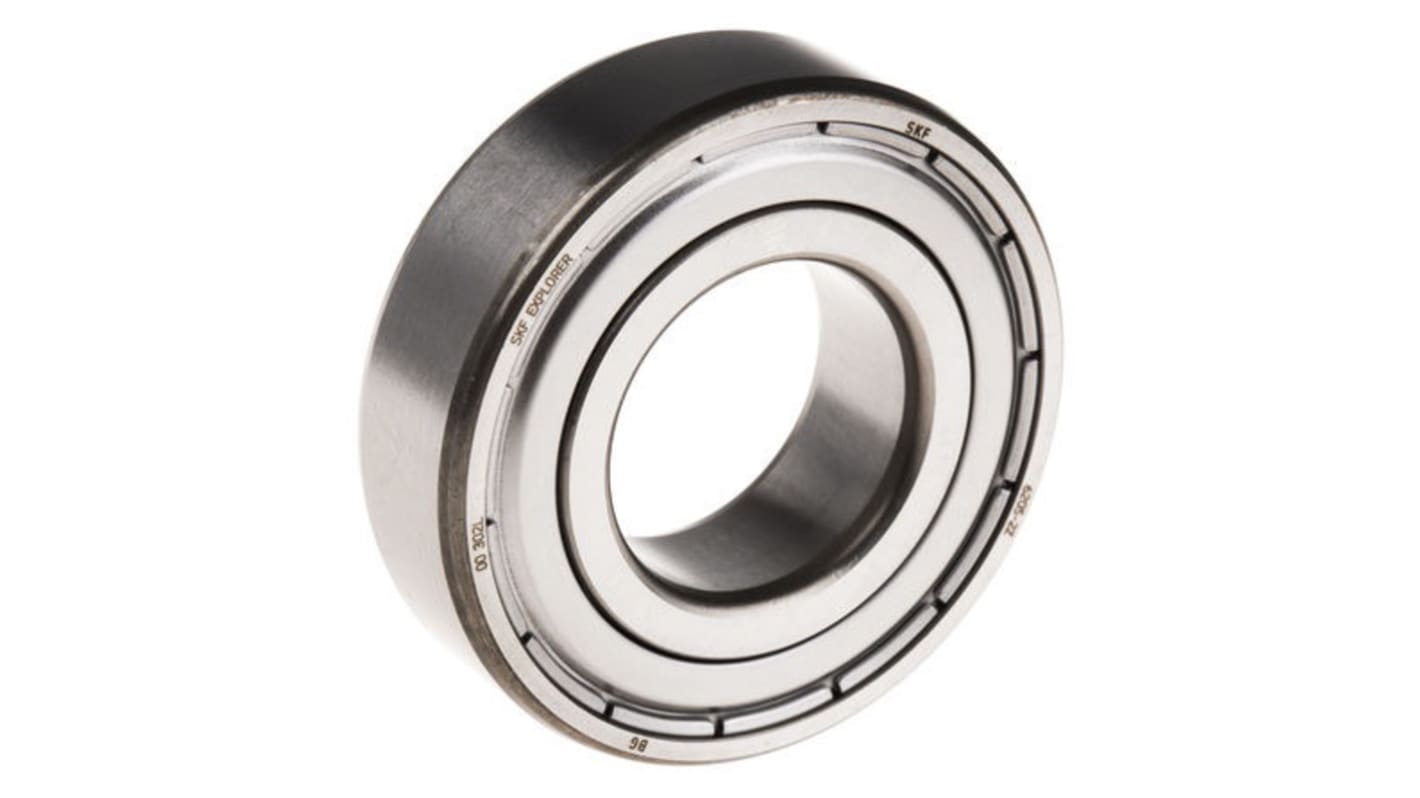

SKF 6202-2Z/C3GJN Single Row Deep Groove Ball Bearing- Both Sides Shielded 15mm I.D, 35mm O.D
- RS Stock No.:
- 123-4822
- Mfr. Part No.:
- 6202-2Z/C3GJN
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£10.85
(exc. VAT)
£13.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 45 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £10.85 |
5 - 9 | £10.42 |
10 - 24 | £10.20 |
25 + | £10.00 |
*price indicative
- RS Stock No.:
- 123-4822
- Mfr. Part No.:
- 6202-2Z/C3GJN
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 15mm | |
Outside Diameter | 35mm | |
Race Width | 11mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 3.75kN | |
Dynamic Load Rating | 8.06kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 6202 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 15mm | ||
Outside Diameter 35mm | ||
Race Width 11mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 3.75kN | ||
Dynamic Load Rating 8.06kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 6202 | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, Deep-Groove Bearing Type, Shielded, 15mm ID, 35mm OD - 6202-2Z/C3GJN
When machine temperatures rise, this ball bearing from SKF is hot to trot. Wide internal clearance means there's plenty of room for the metal to expand in the heat, so your wheels won't grind to a halt. The balls are lubricated with thickened grease, so the unit performs well in temperatures up to +150°C. As it's capable of 22,000 revolutions per minute, it has no trouble keeping up with fast-moving machines. Thanks to the deep-groove design, this bearing can support axial and radial loads in both directions. Constructed from steel, it's strong and resistant to corrosion.
Features & Benefits
• Low friction and vibration to keep machines running smoothly and quietly
• Dynamic load rating of 8.06kN means it takes the strain of demanding tasks
• Dynamic load rating of 8.06kN means it takes the strain of demanding tasks
Applications
• Industrial automation
• Motors and gears
• Domestic appliances
• Agricultural machines
• Motors and gears
• Domestic appliances
• Agricultural machines
What's the benefit of shielded ends?
This ball bearing has shields on both sides to limit the amount of dust and dirt that gets inside. It also stops the lubricant from escaping, which stops grease from being wasted and cuts maintenance out of your schedule.
Deep Groove Ball Bearings
