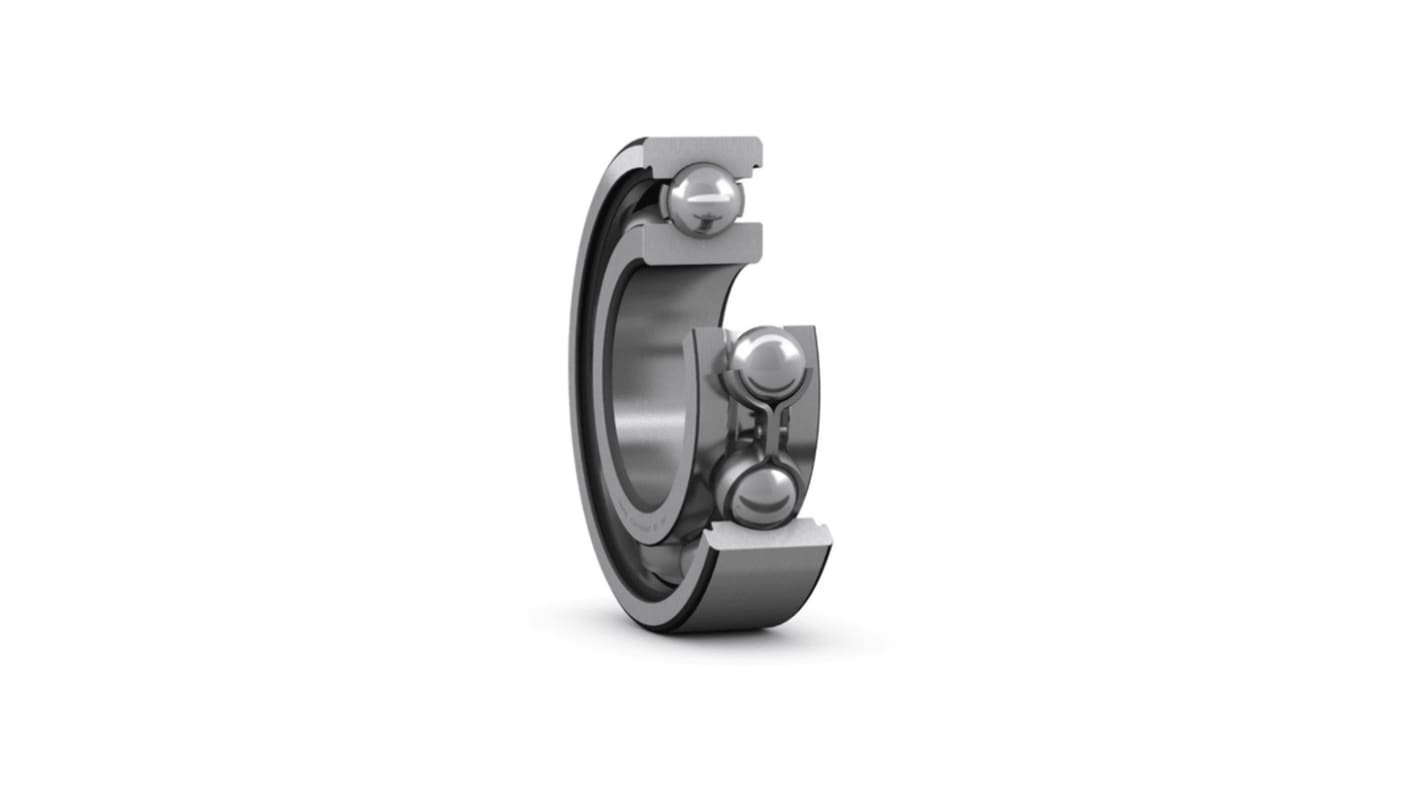

SKF 61904 Single Row Deep Groove Ball Bearing- Open Type 20mm I.D, 37mm O.D
- RS Stock No.:
- 207-7041
- Mfr. Part No.:
- 61904
- Brand:
- SKF
Subtotal (1 unit)*
£16.32
(exc. VAT)
£19.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 182 unit(s) ready to ship
- Plus 32 unit(s) ready to ship from another location
- Plus 999,999,817 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £16.32 |
*price indicative
- RS Stock No.:
- 207-7041
- Mfr. Part No.:
- 61904
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 37mm | |
Race Width | 9mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 3.65kN | |
Dynamic Load Rating | 6.37kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Race Type | Plain | |
Partial Bearing Code | 61904 | |
Race Material | Steel | |
Model Number p | 61904 | |
Flange Outside Diameter | 37mm | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 37mm | ||
Race Width 9mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 3.65kN | ||
Dynamic Load Rating 6.37kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Race Type Plain | ||
Partial Bearing Code 61904 | ||
Race Material Steel | ||
Model Number p 61904 | ||
Flange Outside Diameter 37mm | ||
- COO (Country of Origin):
- FR
SKF Ball Bearing, Deep-Groove Bearing Type, Open Ends, 20mm ID, 37mm OD - 61904
Upgrade your equipment's ability to handle axial and radial loads by installing this ball bearing from SKF. It's a deep-groove type, so it can cope with high loads and keeps noise, friction and vibration to a minimum. This enables machines to run more efficiently. A limiting speed of 26,000r/min means it's well-suited to fast rotational speeds. As a single-row ball bearing with a cylindrical bore, it's quick and easy to fit on motor axles, machine spindles and crankshafts.
Features & Benefits
• Open ends to allow lubricants to travel freely around the moving parts
• Outer diameter of 37mm and race width of 9mm means it's compact
• Suitable for temperatures up to +120°C, for use in demanding environments
• Outer diameter of 37mm and race width of 9mm means it's compact
• Suitable for temperatures up to +120°C, for use in demanding environments
Applications
• Machine tools
• Industrial automation
• Domestic appliances
• Office equipment
• Medical instruments
• Industrial automation
• Domestic appliances
• Office equipment
• Medical instruments
What's this ball bearing made from?
The ball bearing is made with a sheet metal cage and stainless steel rolling parts to ensure it's strong, durable and resistant to corrosion. This helps to give the unit a long service life and reduces the need for machine maintenance.
