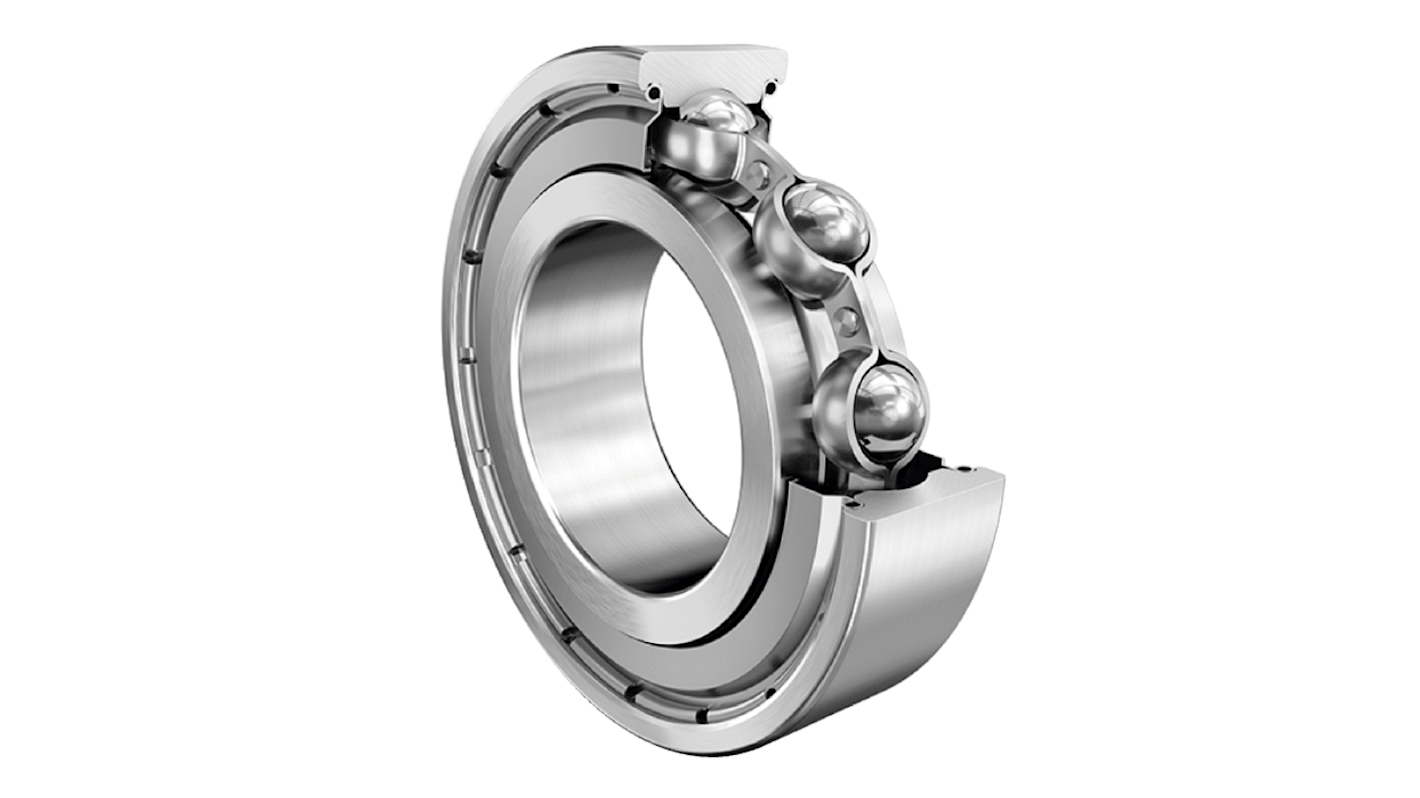

FAG 61904-2Z-HLC Single Row Deep Groove Ball Bearing- Both Sides Shielded 20mm I.D, 37mm O.D
- RS Stock No.:
- 260-0697
- Mfr. Part No.:
- 61904-2Z-HLC
- Brand:
- FAG
Subtotal (1 unit)*
£17.37
(exc. VAT)
£20.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 184 unit(s) ready to ship
- Plus 27 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £17.37 |
*price indicative
- RS Stock No.:
- 260-0697
- Mfr. Part No.:
- 61904-2Z-HLC
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 20mm | |
Outside Diameter | 37mm | |
Race Width | 9mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Steel | |
Number of Rows | 1 | |
Static Load Rating | 3.68kN | |
Dynamic Load Rating | 6.38kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Race Type | Plain | |
Partial Bearing Code | 61904 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 20mm | ||
Outside Diameter 37mm | ||
Race Width 9mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 3.68kN | ||
Dynamic Load Rating 6.38kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Race Type Plain | ||
Partial Bearing Code 61904 | ||
- COO (Country of Origin):
- JP
Schaeffler Deep Groove Ball Bearing, 20mm Inside Diameter, 37mm Outside Diameter - 61904-2Z-HLC
This deep groove ball bearing is designed to excel in various applications within the mechanical and electrical industries. It has an inside diameter of 20mm and an outside diameter of 37mm, making it a versatile choice for numerous setups. The single row design and steel construction ensure robust performance, while its shielded arrangement offers enhanced protection in demanding environments.
Features & Benefits
• Sturdy steel construction provides high durability for demanding uses
• Single row design enhances load distribution and reduces friction
• Shielded arrangement protects against contaminants for longevity
• High load capacity with a dynamic load rating of 6.38 kN
• Low weight of 37g facilitates easy installation in various usage
• Single row design enhances load distribution and reduces friction
• Shielded arrangement protects against contaminants for longevity
• High load capacity with a dynamic load rating of 6.38 kN
• Low weight of 37g facilitates easy installation in various usage
Applications
• Utilised in electric motor assemblies for efficient rotation
• Ideal for conveyor systems requiring minimal friction and noise
• Used in automotive for reliable performance
• Suitable for robotics and automation equipment requiring precision
• Can be used in industrial machinery to enhance operational efficiency
• Ideal for conveyor systems requiring minimal friction and noise
• Used in automotive for reliable performance
• Suitable for robotics and automation equipment requiring precision
• Can be used in industrial machinery to enhance operational efficiency
What load ratings should I expect from this component in a high-demand environment?
The radial dynamic load rating reaches 6.38 kN, while the static load rating is 3.68 kN, ensuring it can endure substantial stresses typical in demanding applications.
What is the significance of the shielded design in harsh environments?
The shielded design minimises the ingress of dust and other particles, which helps maintain optimal performance and extends the service life of the bearing.
How does the temperature range affect the bearing's application range?
With an operational temperature range from -30°C to 120°C, this bearing accommodates a variety of environments, making it suitable for both cold and hot operational conditions without compromising function.
