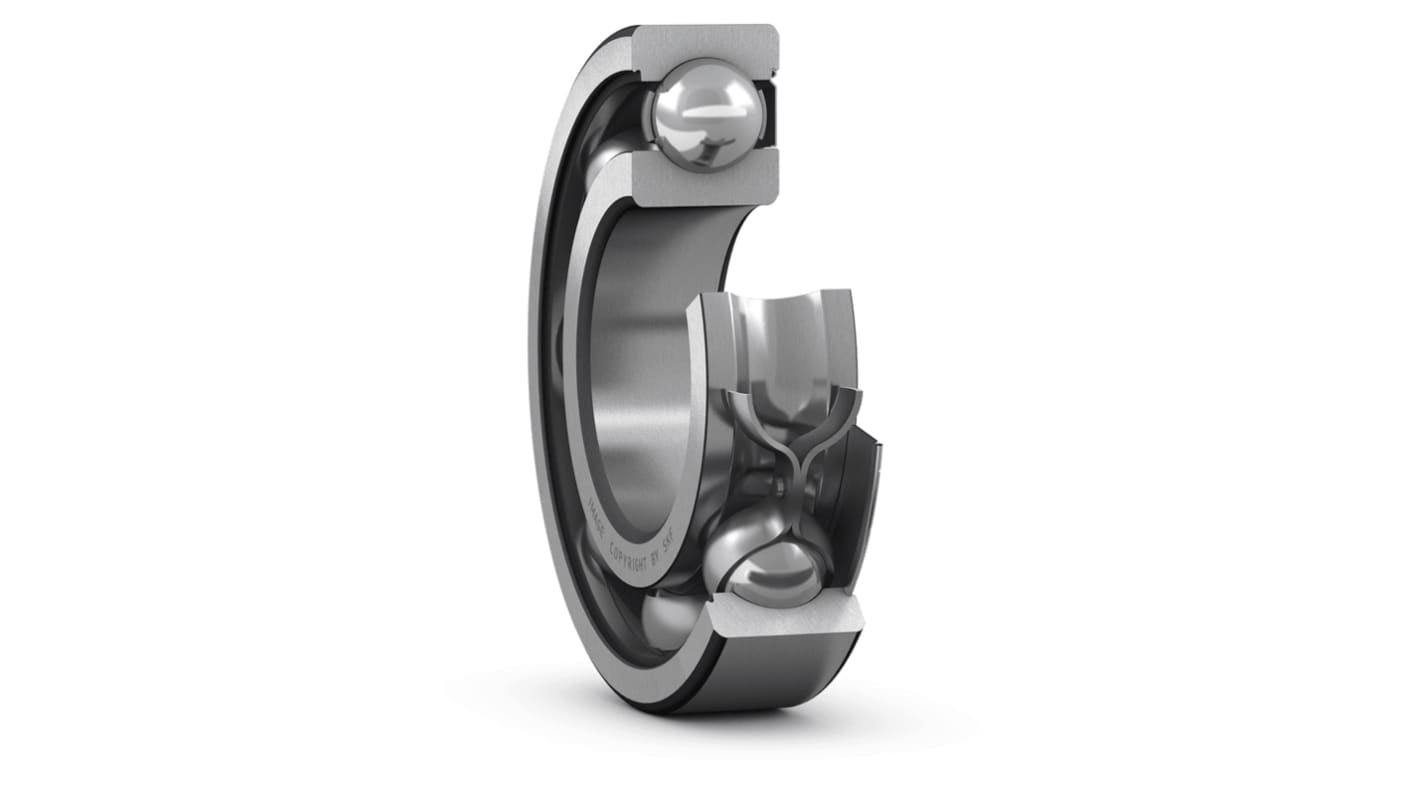

SKF 6005-Z Single Row Deep Groove Ball Bearing- One Side Shielded 25mm I.D, 47mm O.D
- RS Stock No.:
- 207-6379
- Mfr. Part No.:
- 6005-Z
- Brand:
- SKF
Subtotal (1 unit)*
£11.78
(exc. VAT)
£14.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 86 unit(s) shipping from 06 October 2025
- Plus 22 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £11.78 |
*price indicative
- RS Stock No.:
- 207-6379
- Mfr. Part No.:
- 6005-Z
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 25mm | |
Outside Diameter | 47mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | One Side Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 6.55kN | |
Dynamic Load Rating | 11.9kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Flange Outside Diameter | 47mm | |
Model Number p | 6005Z | |
Race Type | Plain | |
Race Material | Steel | |
Partial Bearing Code | 6005 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Outside Diameter 47mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement One Side Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 6.55kN | ||
Dynamic Load Rating 11.9kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Flange Outside Diameter 47mm | ||
Model Number p 6005Z | ||
Race Type Plain | ||
Race Material Steel | ||
Partial Bearing Code 6005 | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, Deep-Groove Bearing Type, 25mm ID, 47mm OD - 6005-Z
Looking for a versatile and reliable bearing? Try this deep-groove cylindrical ball bearing from SKF. Its optimised design helps to keep the unit running cool and reduces wear. As both sides are shielded, there's little chance of its lubricant leaking, which boosts performance and minimises environmental impact. Rolling elements manufactured to close tolerances give you the benefit of low vibration, which helps to keep your machinery operating smoothly and efficiently. With a light weight of just 8g, this bearing adds minimal strain to equipment.
Features & Benefits
• Can be used to handle both radial and axial loads in either direction
• Made from robust steel that resists corrosion, so it's suitable for humid or harsh operating environments
• Outer diameter of 47mm lets you downsize equipment for productivity
• Surface topography encourages the formation of a hydrodynamic lubricant film to maximise lubricant use for a light carbon footprint
• Made from robust steel that resists corrosion, so it's suitable for humid or harsh operating environments
• Outer diameter of 47mm lets you downsize equipment for productivity
• Surface topography encourages the formation of a hydrodynamic lubricant film to maximise lubricant use for a light carbon footprint
Applications
• Automated assembly lines
• Textile industry
• Paper and pulp mills
• Shipyards
• Textile industry
• Paper and pulp mills
• Shipyards
What's the maximum rotational speed of this ball bearing?
This bearing has a limiting speed of 20,000r/min, which is the maximum speed it rotates at safely without loss of performance.
