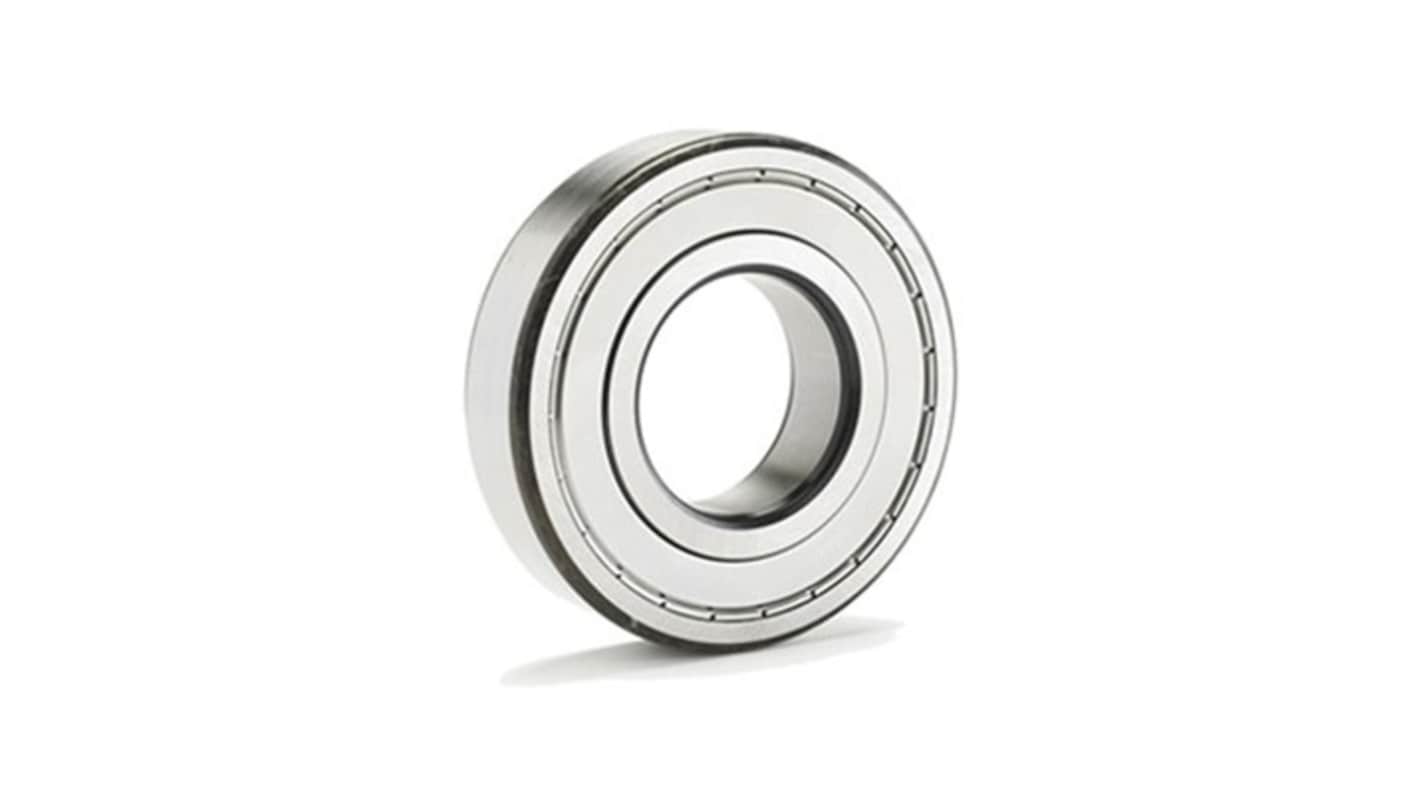

RS PRO 1 Row Ball Bearing - 25 mm ID, 47 mm OD
- RS Stock No.:
- 291-597
- Brand:
- RS PRO
Subtotal (1 unit)*
£7.54
(exc. VAT)
£9.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 4 unit(s) shipping from 01 December 2025
- Plus 35 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.54 |
*price indicative
- RS Stock No.:
- 291-597
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Inside Diameter | 25 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 47 mm | |
| Race Width | 12mm | |
| Cage Material | Steel | |
| Race Material | Steel | |
| Ball Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 6.55kN | |
| Dynamic Load Rating | 11.9kN | |
| Standards/Approvals | RoHS | |
| Series | 2 Light | |
| Bore Type | Parallel | |
| Limiting Speed | 16000rpm | |
| Race Type | Plain | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Inside Diameter 25 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 47 mm | ||
Race Width 12mm | ||
Cage Material Steel | ||
Race Material Steel | ||
Ball Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 6.55kN | ||
Dynamic Load Rating 11.9kN | ||
Standards/Approvals RoHS | ||
Series 2 Light | ||
Bore Type Parallel | ||
Limiting Speed 16000rpm | ||
Race Type Plain | ||
Bearing Type Deep Groove | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
RS PRO Deep Groove Ball Bearing – One Side Shielded
RS PRO deep groove ball bearings are celebrated for their adaptability and exceptional performance. As the most used bearing type, they serve applications across various industries and environments. Their design enables them to manage radial and axial loads, making them crucial components in numerous mechanical systems.
Why Opt for One-Side Shielded?
Shielded bearings are engineered to safeguard the internal components. They feature a metal shield on one side, which creates a small gap between the shield and the inner race. This design allows for high-speed operation without adding extra friction.
Features and Benefits
Applications
