SKF 51124 Thrust Ball Bearing- Open Type 120mm I.D, 155mm O.D
- RS Stock No.:
- 207-6283
- Mfr. Part No.:
- 51124
- Brand:
- SKF
Subtotal (1 unit)*
£194.60
(exc. VAT)
£233.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £194.60 |
*price indicative
- RS Stock No.:
- 207-6283
- Mfr. Part No.:
- 51124
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 120mm | |
Outside Diameter | 155mm | |
Race Width | 25mm | |
Ball Bearing Type | Thrust Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 305kN | |
Dynamic Load Rating | 85.2kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Partial Bearing Code | 51124 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 120mm | ||
Outside Diameter 155mm | ||
Race Width 25mm | ||
Ball Bearing Type Thrust Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 305kN | ||
Dynamic Load Rating 85.2kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Partial Bearing Code 51124 | ||

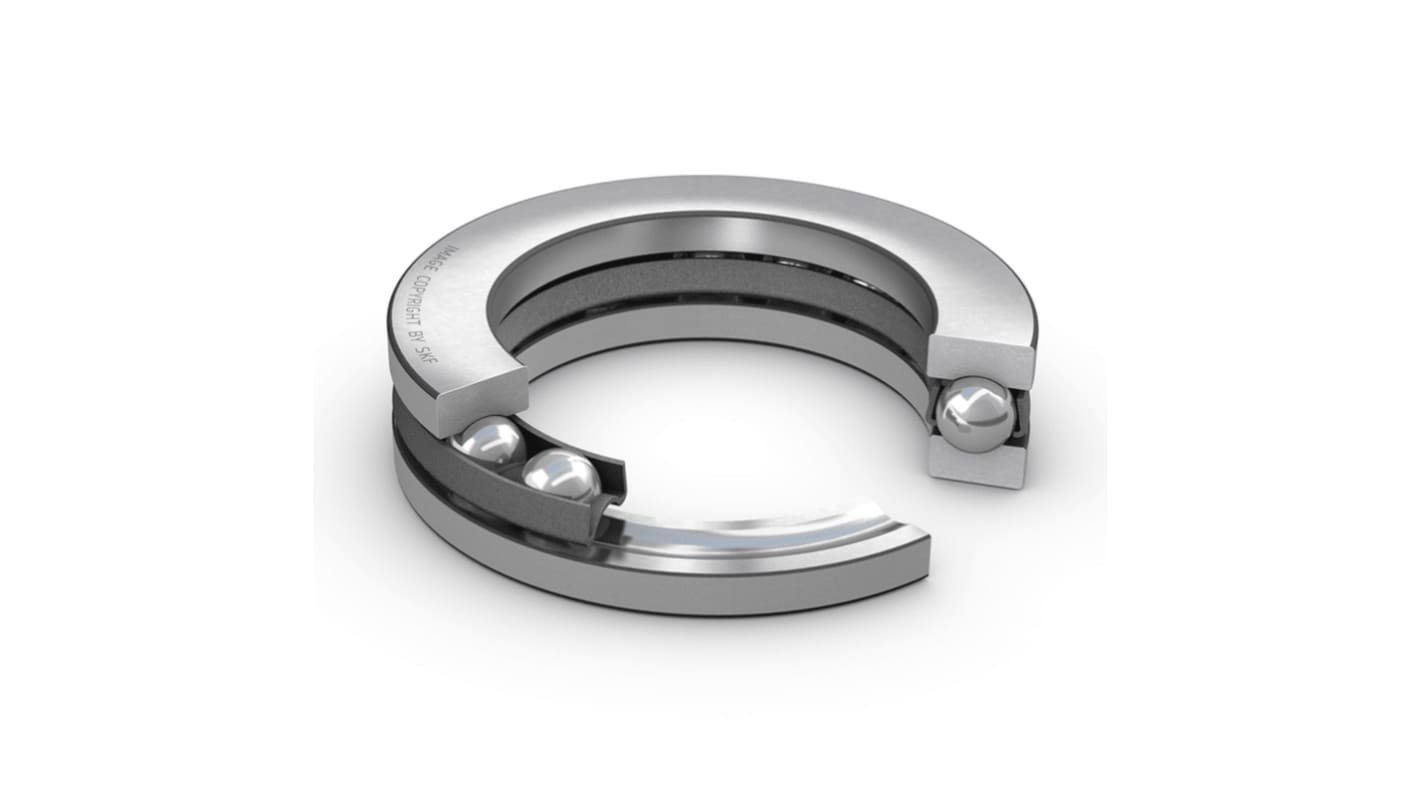

The SKF thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load. It has 120 mm ID and 155 mm OD.
Bearing material is of bearing steel
Cylindrical bore type
Cylindrical bore type
