- RS Stock No.:
- 207-6274
- Mfr. Part No.:
- 51111
- Brand:
- SKF
9 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£34.22
(exc. VAT)
£41.06
(inc. VAT)
Units | Per unit |
1 + | £34.22 |
- RS Stock No.:
- 207-6274
- Mfr. Part No.:
- 51111
- Brand:
- SKF
Legislation and Compliance
Product Details

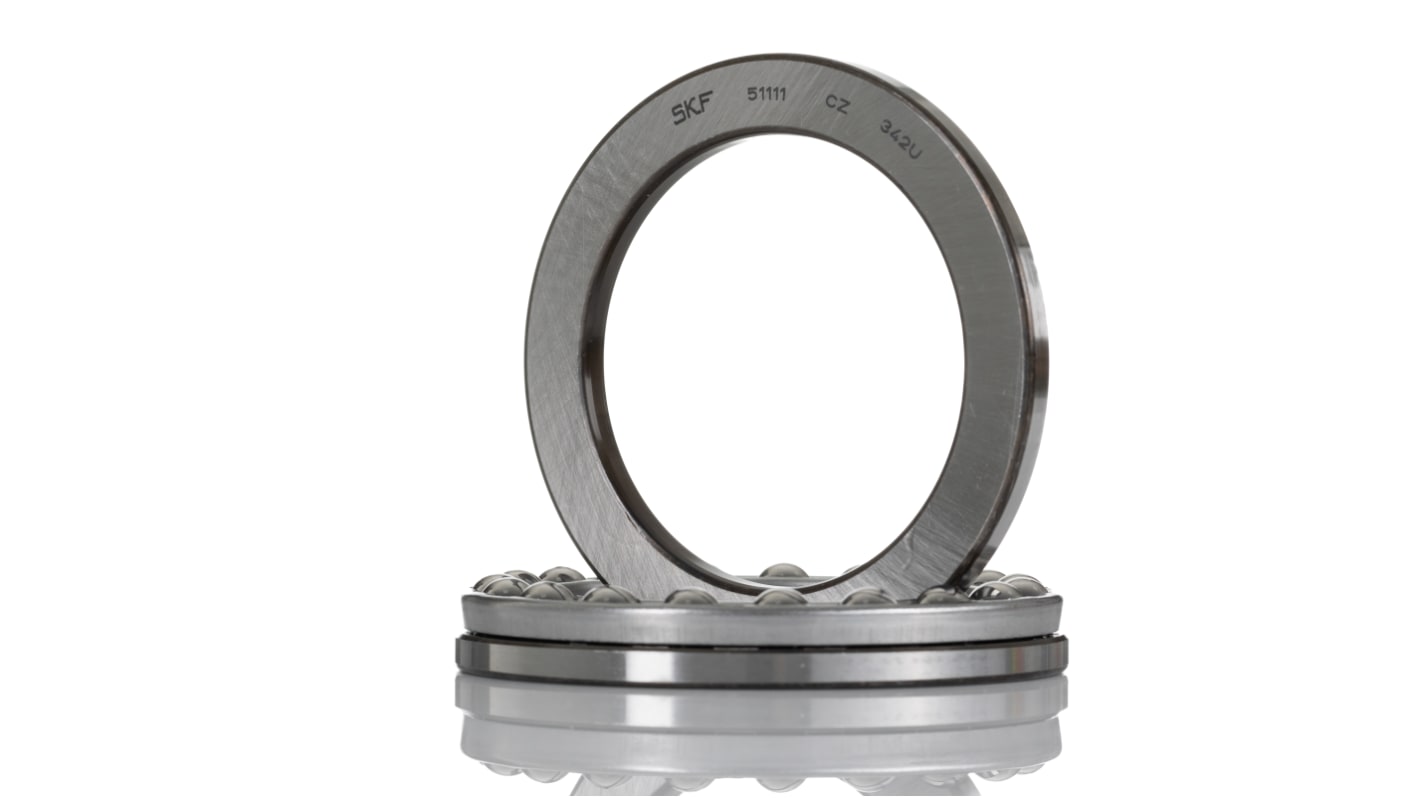

SKF Ball Bearing, Thrust Bearing Type, Open Ended, 55mm ID, 78mm OD - 51111
If your machine's movement is clunky, turn things around with this thrust bearing from SKF. This single-direction bearing has a cylindrical shape with rolling parts to support axial loads on horizontal and vertical shafts as they turn. Ground-bore washers give the bearing a snug fit and a cage keeps the balls evenly spaced. This means you can be sure vibrations are minimal and movement is smooth. To keep up with demanding applications, the bearing can handle a dynamic load rating of 30.2kN and has a limiting speed of 5,300 revolutions per minute.
• Bearing parts are interchangeable to make it versatile
• Hard-bearing steel ensures it's strong and durable under pressure
• Open-ended for easy relubrication
• Hard-bearing steel ensures it's strong and durable under pressure
• Open-ended for easy relubrication
Applications
• Machine tools
• Material handling
• Rotary compressors
• Fans and blowers
• Automotive industry
• Material handling
• Rotary compressors
• Fans and blowers
• Automotive industry
The SKF thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load. It has 55 mm ID and 78 mm OD.
Is this ball bearing easy to maintain?
Bearing material is of bearing steel
Cylindrical bore type
Cylindrical bore type
Yes. As the bearing pulls apart, it's easy to dismount it from shafts and inspect the components during servicing.
What size is this ball bearing?
An outer diameter of 78mm and height of 16mm means this is a compact option to fit inside smaller machines.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 55mm |
Outside Diameter | 78mm |
Race Width | 16mm |
Ball Bearing Type | Thrust Ball Bearing |
Sealing Arrangement | Open Type |
Bearing Clearance | CN |
Material | Steel |
Ball Material | Steel |
Cage Material | Sheet Metal |
Number of Rows | 1 |
Static Load Rating | 81.5kN |
Dynamic Load Rating | 30.2kN |
Bore Type | Parallel |
Bearing Series | 1 Extra Light Thrust |
Flange Outside Diameter | 78mm |
Partial Bearing Code | 51111 |
Race Material | Steel |
