SKF 7302 BEP 1 Row Ball Bearing - 15 mm ID, 42 mm OD 13 mm Race Width
- RS Stock No.:
- 207-5508
- Mfr. Part No.:
- 7302 BEP
- Brand:
- SKF
Subtotal (1 unit)*
£25.82
(exc. VAT)
£30.98
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 25 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £25.82 |
*price indicative
- RS Stock No.:
- 207-5508
- Mfr. Part No.:
- 7302 BEP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 15mm | |
| Outside Diameter | 42mm | |
| Race Width | 13mm | |
| Cage Material | Non-Metallic | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 6.7kN | |
| Internal Clearance | CN | |
| Contact Angle | 40° | |
| Dynamic Load Rating | 13kN | |
| Series | 7302 | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 20000rpm | |
| Bearing Type | Single Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 15mm | ||
Outside Diameter 42mm | ||
Race Width 13mm | ||
Cage Material Non-Metallic | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 6.7kN | ||
Internal Clearance CN | ||
Contact Angle 40° | ||
Dynamic Load Rating 13kN | ||
Series 7302 | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 20000rpm | ||
Bearing Type Single Row Angular Contact Ball | ||

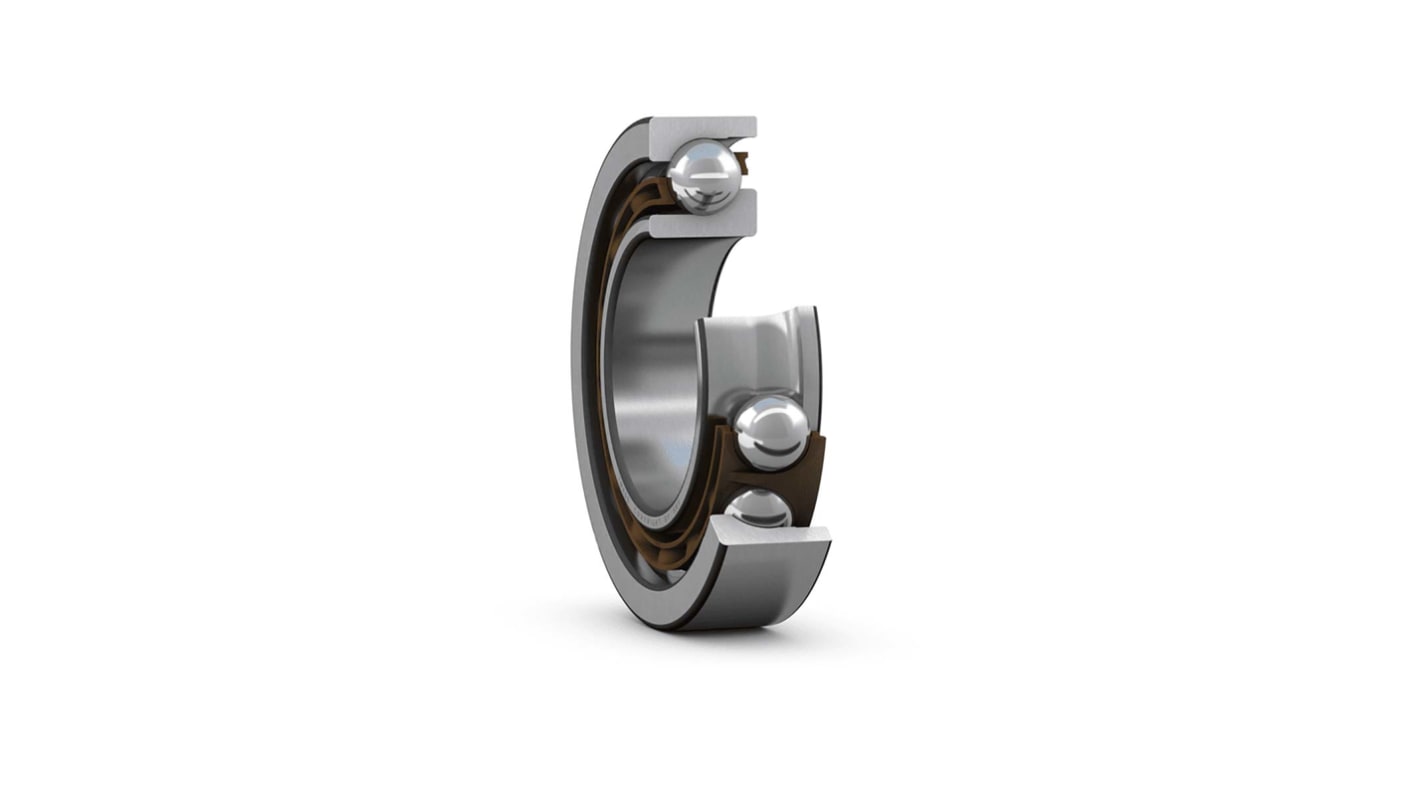

SKF Ball Bearing, 15mm Inside Diameter, 42mm Outside Diameter - 7302 BEP
This angular contact ball bearing is designed for efficient performance in dynamic applications. Measuring 15mm for the inner diameter and 42mm for the outer diameter, this single row ball bearing features a race width of 13mm and is constructed from Durable steel. Its non-metallic cage enhances operational reliability, making it suitable for various industrial uses.
Features & Benefits
• Constructed from high-quality steel for enhanced durability
• Designed for angular contact to support high radial loads
• Non-metallic cage reduces friction and wear during operation
• Rated for dynamic load capacity of 13kN for heavy-duty use
• Precision design ensures optimal performance at high speeds
• Standard tolerances ensure compatibility with various assembly setups
• Designed for angular contact to support high radial loads
• Non-metallic cage reduces friction and wear during operation
• Rated for dynamic load capacity of 13kN for heavy-duty use
• Precision design ensures optimal performance at high speeds
• Standard tolerances ensure compatibility with various assembly setups
Applications
• Utilised for precision motor assemblies for improved accuracy
• Employed in rotary requiring high-load support
• Ideal for equipment in the electrical and electronic sectors
• Suitable for mechanical systems demanding low friction components
• Employed in rotary requiring high-load support
• Ideal for equipment in the electrical and electronic sectors
• Suitable for mechanical systems demanding low friction components
What speed ratings does this component support?
This design is rated for a reference speed of 22000r/min and a limiting speed of 20000r/min, making it suitable for high-speed applications.
What kind of load ratings should I expect from this bearing?
The bearing offers a Basic static load rating of 6.7kN and a dynamic load rating of 13kN, ensuring reliability under various operational stresses.
How does the cage material impact performance?
The non-metallic cage contributes to reduced friction and facilitates smooth motion, which is critical in applications where efficiency is paramount.
Can this bearing be used in tandem arrangements?
Yes, calculation factors indicate suitability for single or paired arrangements, whether in tandem or back-to-back, enhancing versatility in applications.
What are the implications of using this bearing in high-load scenarios?
Its design allows it to effectively handle significant radial loads, making it an excellent choice for industries that require robust and reliable performance under demanding conditions.
