SKF 7302 BE-2RZP Single Row Angular Contact Ball Bearing- Non Contact Seals On Both Sides 15mm I.D, 42mm O.D
- RS Stock No.:
- 207-5506
- Mfr. Part No.:
- 7302 BE-2RZP
- Brand:
- SKF
Subtotal (1 unit)*
£37.66
(exc. VAT)
£45.19
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £37.66 |
*price indicative
- RS Stock No.:
- 207-5506
- Mfr. Part No.:
- 7302 BE-2RZP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 15mm | |
Outside Diameter | 42mm | |
Race Width | 13mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Non Contact Seals On Both Sides | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 1 | |
Static Load Rating | 6.7kN | |
Dynamic Load Rating | 13kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 7302 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 15mm | ||
Outside Diameter 42mm | ||
Race Width 13mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Non Contact Seals On Both Sides | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 1 | ||
Static Load Rating 6.7kN | ||
Dynamic Load Rating 13kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 7302 | ||

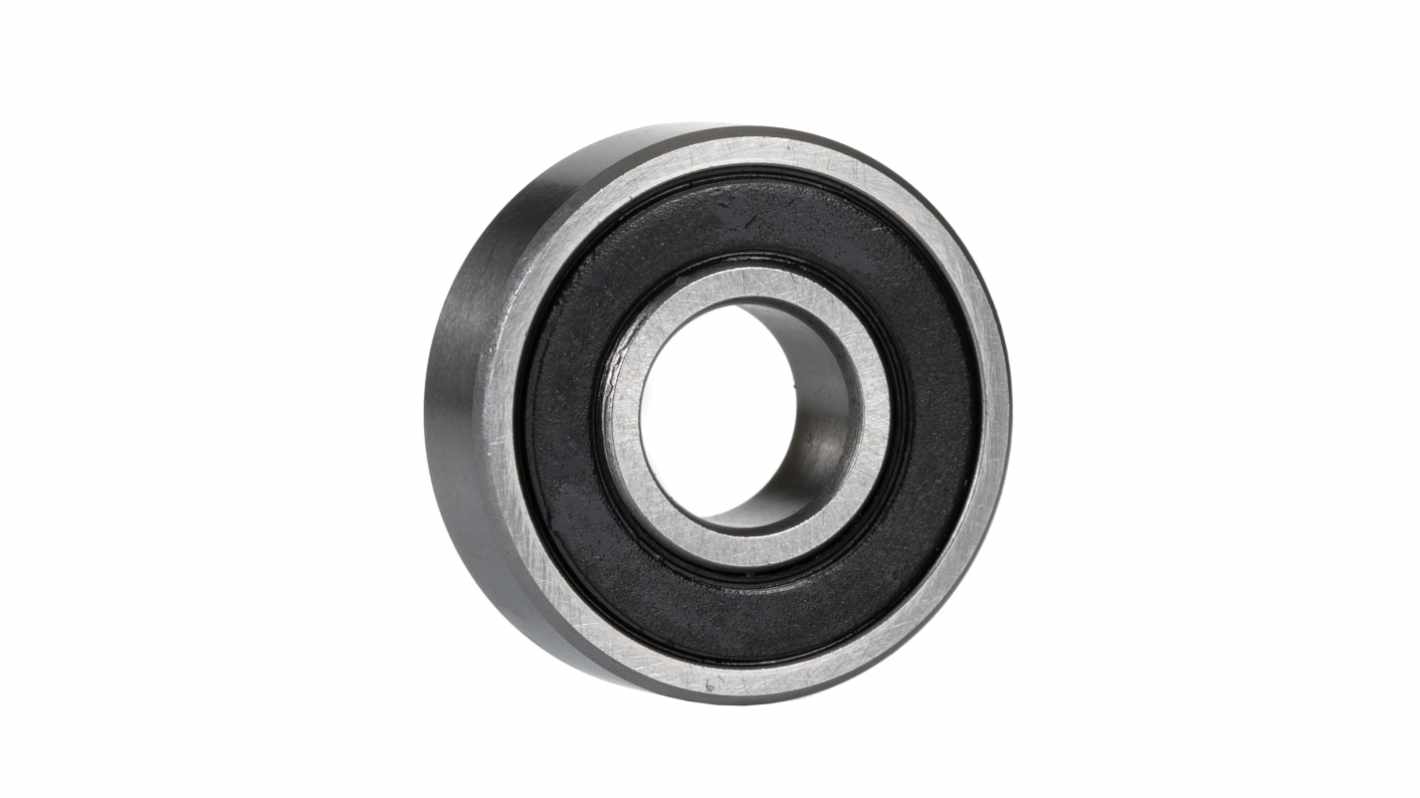

SKF Angular Contact Ball Bearing, 15mm Inside Diameter, 42mm Outside Diameter - 7302 BE-2RZP
This angular contact ball bearing belongs to the single row category and is designed for dynamic and static load applications. With an inside diameter of 15mm and an outside diameter of 42mm, it is suitable for high-speed operations. Its robust sealing arrangement protects against contaminants, enhancing longevity and performance reliability.
Features & Benefits
• Sealed at both sides to prevent contamination
• Steel construction ensures durability and strength
• Designed for normal internal clearance for smooth operation
• Lightweight design with a mass of 0.082kg
• Steel construction ensures durability and strength
• Designed for normal internal clearance for smooth operation
• Lightweight design with a mass of 0.082kg
Applications
• Utilised in automation equipment for reliable performance
• Effective in electrical machinery to minimise friction
• Suitable for use in mechanical systems requiring precision
• Can be used in high-speed rotating
• Installed in industrial setups where durability is essential
• Effective in electrical machinery to minimise friction
• Suitable for use in mechanical systems requiring precision
• Can be used in high-speed rotating
• Installed in industrial setups where durability is essential
What is the significance of the sealing arrangement in this bearing?
The sealing arrangement enhances the operational lifespan by preventing dirt and moisture ingress, which could lead to premature failure or reduced efficiency during performance.
How does the dynamic load rating affect performance in applications?
A dynamic load rating of 13 kN allows this bearing to withstand significant loads during operation without failure, making it ideal for various high-stress applications.
What is the impact of using steel as the bearing material?
Steel provides excellent mechanical properties, including strength and rigidity, which ensures stability under load and extends the bearing's service life, particularly in demanding environments.
How does this bearing perform at high rotational speeds?
With a reference speed of 22,000 r/min, this bearing is specifically designed for high-speed applications, ensuring smooth rotation and reduced friction at elevated speeds.
What advantages do single row angular contact bearings offer?
Single row angular contact bearings provide high axial and radial load support in compact designs, making them suitable for precision applications where space is limited while maintaining performance.
