Subtotal (1 unit)*
£619.07
(exc. VAT)
£742.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £619.07 |
*price indicative
- RS Stock No.:
- 207-5370
- Mfr. Part No.:
- 6321
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 105 mm | |
| Outside Diameter | 225 mm | |
| Race Width | 49mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 153kN | |
| Dynamic Load Rating | 182kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Series | 6321 | |
| Limiting Speed | 4000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 105 mm | ||
Outside Diameter 225 mm | ||
Race Width 49mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 153kN | ||
Dynamic Load Rating 182kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Series 6321 | ||
Limiting Speed 4000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- FR

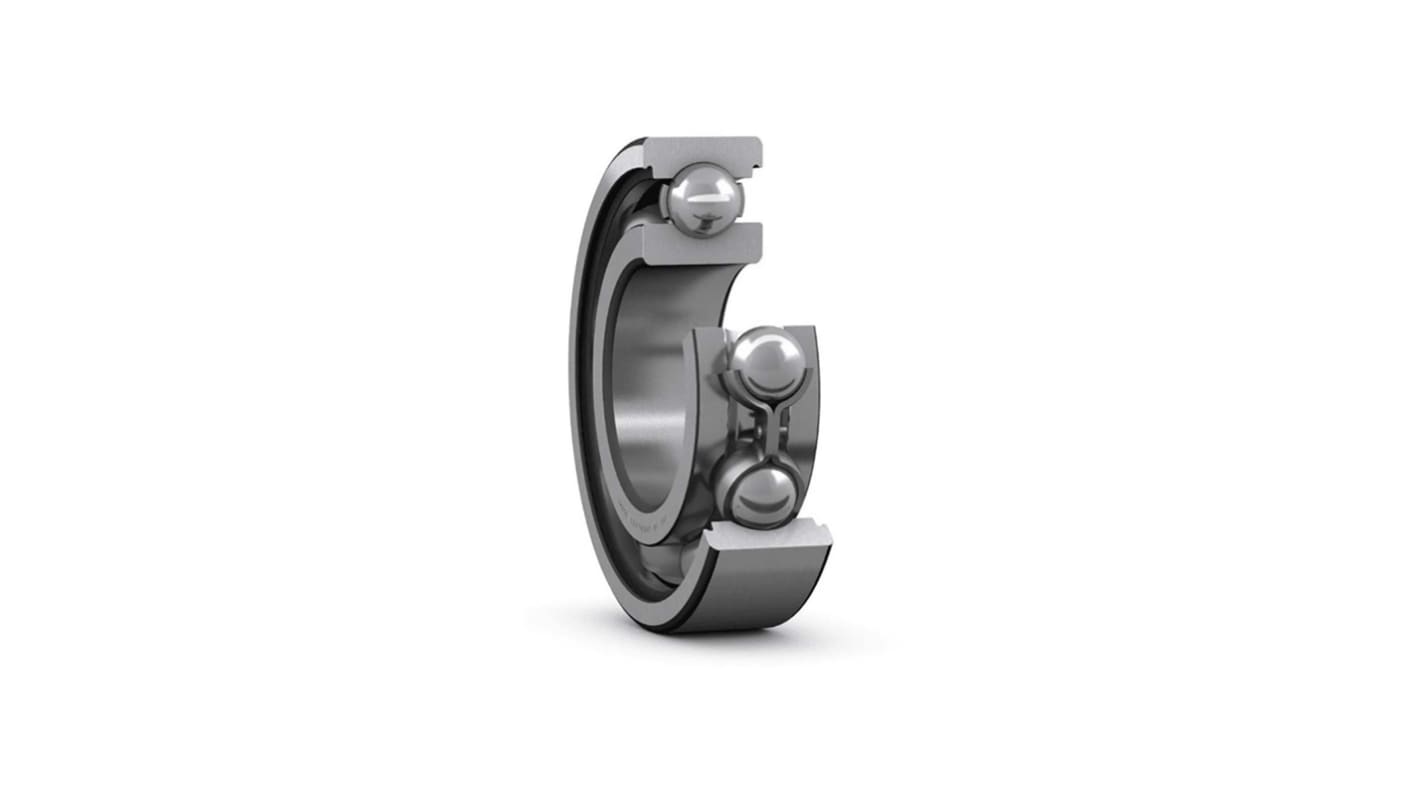

The SKF Deep groove ball bearing is particularly versatile. It has a 105mm bore diameter and 225mm outside diameter. This is suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes.
Single row
Cylindrical type bore
Steel type bearing
