MPN

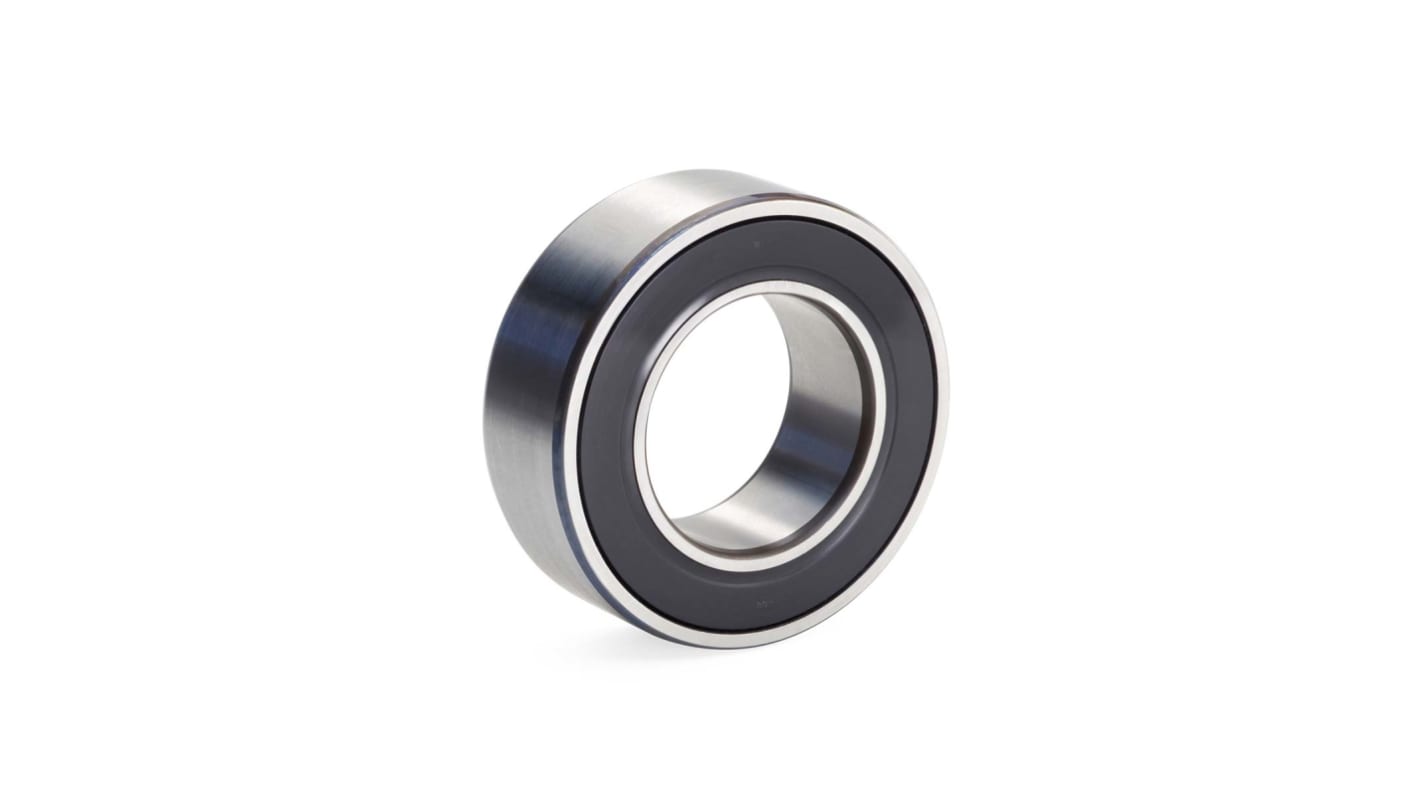

SKF 3208 A-2RS1TN9/C3MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 40mm I.D, 80mm O.D

RS Stock No.:: 195-9531
Mfr. Part No.:: 3208 A-2RS1TN9/C3MT33
Brand:: SKF

SKF 3208 A-2RS1TN9/C3MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 40mm I.D, 80mm O.D

View all Ball Bearings

Bulk discount available

Subtotal (1 unit)*

£99.42

(exc. VAT)

£119.30

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£99.42
5 - 9	£95.44
10 - 24	£93.43
25 +	£91.43

*price indicative

RS Stock No.:: 195-9531
Mfr. Part No.:: 3208 A-2RS1TN9/C3MT33
Brand:: SKF

SKF 2 Light Series Angular Contact Ball Bearing, 40mm Inside Diameter, 80mm Outside Diameter - 3208 A-2RS1TN9/C3MT33

This angular contact ball bearing is designed for high-performance applications within various sectors, including automation and mechanical systems. With an inside diameter of 40mm and an outside diameter of 80mm, it provides robust support for rotating parts. This double row angular contact bearing features a sealing arrangement on both sides for enhanced durability and reduced maintenance.

Features & Benefits

• Double row design enhances load-carrying capacity and stability
• Sealed ball bearings improve resistance to external contaminants
• C3 clearance bearings accommodate thermal expansions effectively
• Steel ball bearing specifications ensure long-lasting performance
• High basic dynamic load rating of 48kN for demanding operations
• Limiting speed of 5600 r/min allows for high-speed requirements

Applications

• Used for electric motors for reliable rotational support
• Ideal for gearboxes requiring heavy-duty bearings
• Suitable for robotics for precise movement and control
• Recommended for industrial machinery for enhanced performance
• Suitable for requiring sealed protection from dirt

What material is utilised in the construction of this bearing, and how does it enhance performance?

The bearing is primarily made of steel, which contributes to its durability and strength under load. This material choice ensures that the bearing can withstand various operating conditions without significant wear, prolonging its lifespan.

How does the C3 clearance benefit the bearing during operation?

The C3 clearance provides extra space that accommodates thermal expansion due to increases in temperature during operation. This helps maintain optimal performance and prevents excessive pressure on the rolling elements.

What range of loads can this bearing safely support?

With a basic static load rating of 36.5kN and a dynamic load rating of 48kN, it is engineered to handle significant loads, making it suitable for rigorous industrial applications.

What is the limiting speed for this bearing, and why is it important?

The limiting speed is 5600 r/min, which is crucial for applications that require high rotational speeds. It determines the maximum speed at which the bearing can operate efficiently without overheating.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SKF
	Inside Diameter	40mm
	Outside Diameter	80mm
	Race Width	30.2mm
	Ball Bearing Type	Double Row Angular Contact Ball Bearing
	Sealing Arrangement	Both Sides Sealed
	Bearing Clearance	C3
	Material	Steel
	Ball Material	Steel
	Cage Material	Non-metallic
	Number of Rows	2
	Static Load Rating	36.5kN
	Dynamic Load Rating	48kN
	Clearance Code	C3
	Bore Type	Parallel
	Bearing Series	2 Light
	Partial Bearing Code	3208
	Race Type	Plain

	Select all
	Brand SKF
	Inside Diameter 40mm
	Outside Diameter 80mm
	Race Width 30.2mm
	Ball Bearing Type Double Row Angular Contact Ball Bearing
	Sealing Arrangement Both Sides Sealed
	Bearing Clearance C3
	Material Steel
	Ball Material Steel
	Cage Material Non-metallic
	Number of Rows 2
	Static Load Rating 36.5kN
	Dynamic Load Rating 48kN
	Clearance Code C3
	Bore Type Parallel
	Bearing Series 2 Light
	Partial Bearing Code 3208
	Race Type Plain
