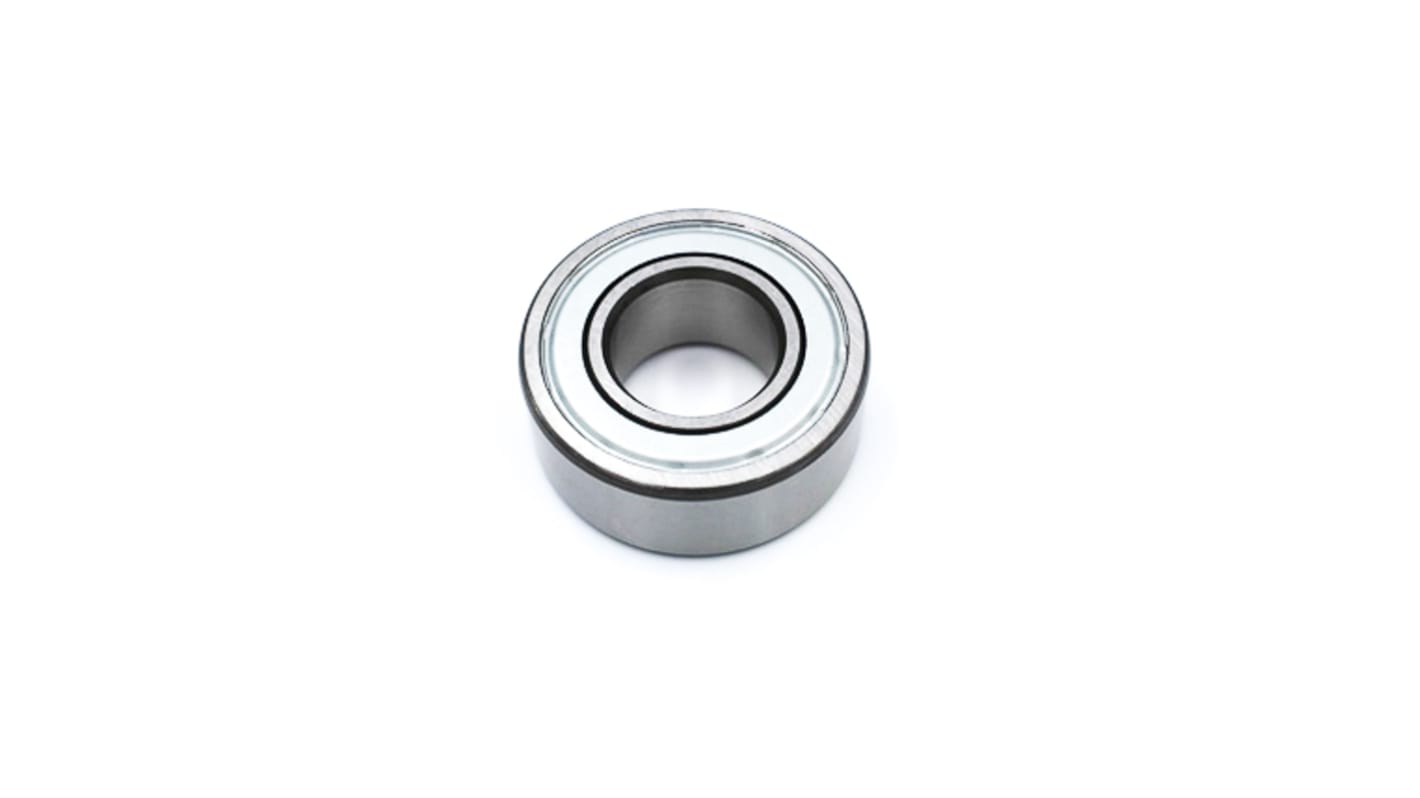

FAG 30072Z Double Row Angular Contact Ball Bearing- Both Sides Shielded 35mm I.D, 62mm O.D
- RS Stock No.:
- 190-8357
- Mfr. Part No.:
- 30072Z
- Brand:
- FAG
1 In stock - FREE next working day delivery available
Added
Price Each
£56.62
(exc. VAT)
£67.94
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £56.62 |
| 5 - 9 | £54.35 |
| 10 - 24 | £53.23 |
| 25 + | £52.09 |
- RS Stock No.:
- 190-8357
- Mfr. Part No.:
- 30072Z
- Brand:
- FAG
Technical Reference
Legislation and Compliance
Product Details
The design envelope is not sufficient under high loads for a pair of single row angular contact ball bearings
High radial and axial loads are acting simultaneously
Tilting moments must also be supported
A relatively rigid bearing arrangement is required
The bearing arrangement is to run quietly in addition to meeting the requirements stated above
High radial and axial loads are acting simultaneously
Tilting moments must also be supported
A relatively rigid bearing arrangement is required
The bearing arrangement is to run quietly in addition to meeting the requirements stated above
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 35mm |
| Outside Diameter | 62mm |
| Race Width | 20mm |
| Ball Bearing Type | Double Row Angular Contact Ball Bearing |
| Sealing Arrangement | Both Sides Shielded |
| Bearing Clearance | CN |
| Material | Steel |
| Ball Material | Steel |
| Cage Material | Steel |
| Number of Rows | 2 |
| Static Load Rating | 19.1kN |
| Dynamic Load Rating | 24kN |
| Bore Type | Parallel |
| Bearing Series | 0 Extra Light |
| Partial Bearing Code | 3007 |
| Race Type | Plain |
