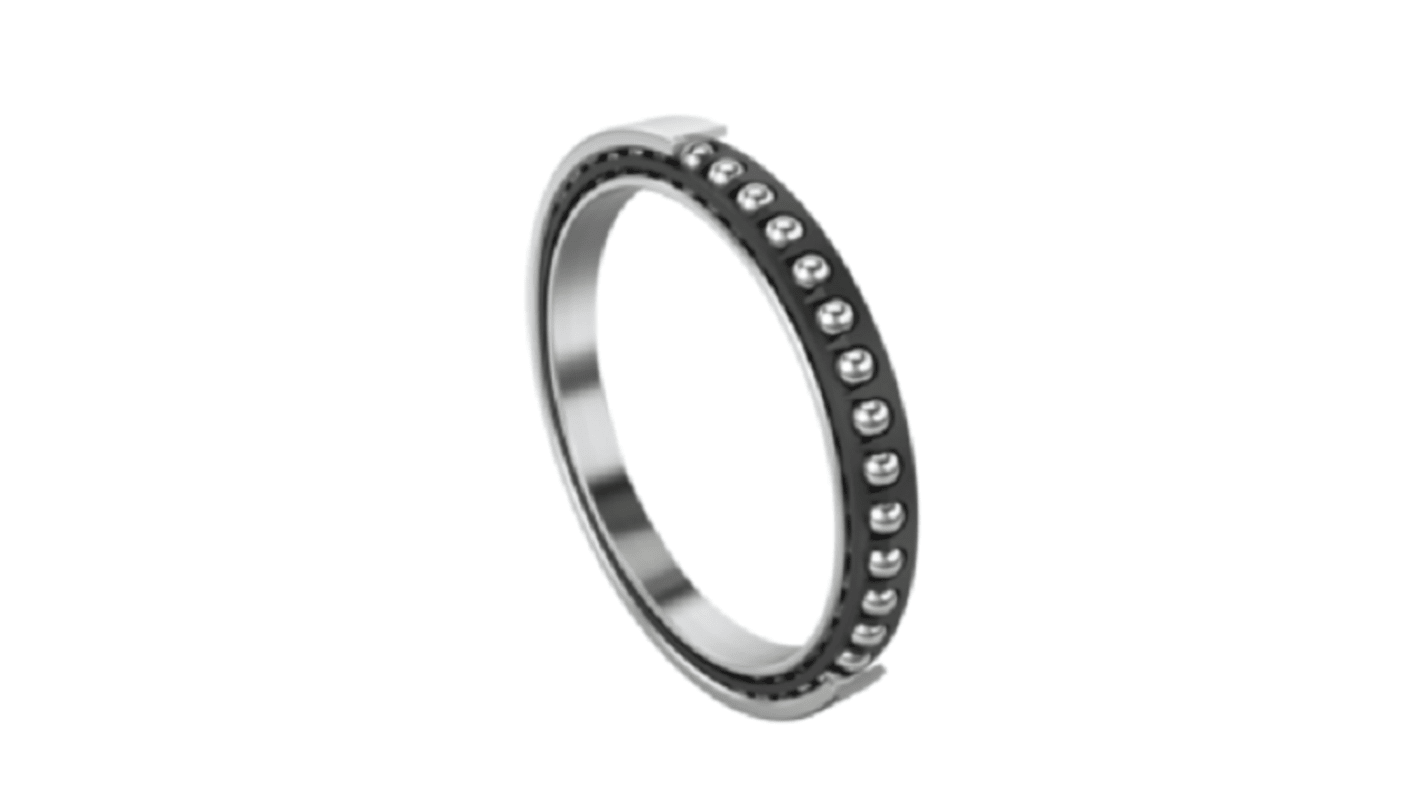

FAG 71812-TN Single Row Angular Contact Ball Bearing- Open Type 60mm I.D, 78mm O.D
- RS Stock No.:
- 187-9499
- Mfr. Part No.:
- 71812-TN
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£177.31
(exc. VAT)
£212.77
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £177.31 |
5 - 9 | £170.22 |
10 + | £166.67 |
*price indicative
- RS Stock No.:
- 187-9499
- Mfr. Part No.:
- 71812-TN
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 60mm | |
Outside Diameter | 78mm | |
Race Width | 10mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Polyamide | |
Number of Rows | 1 | |
Static Load Rating | 12.8kN | |
Dynamic Load Rating | 12.3kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Race Type | Plain | |
Partial Bearing Code | 71812 | |
Race Material | Steel | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 60mm | ||
Outside Diameter 78mm | ||
Race Width 10mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
Number of Rows 1 | ||
Static Load Rating 12.8kN | ||
Dynamic Load Rating 12.3kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Race Type Plain | ||
Partial Bearing Code 71812 | ||
Race Material Steel | ||
- COO (Country of Origin):
- DE
Bearing arrangements must support combined loads, i.e. radial and axial loads acting simultaneously
Moderate to high axial loads are present on one side
Rigid axial guidance is required
The bearing arrangement must be axially clearance-free or preloaded
High speeds are required under higher radial and axial loads
The bearing arrangement is to run quietly in addition to meeting the requirements stated above
Moderate to high axial loads are present on one side
Rigid axial guidance is required
The bearing arrangement must be axially clearance-free or preloaded
High speeds are required under higher radial and axial loads
The bearing arrangement is to run quietly in addition to meeting the requirements stated above
