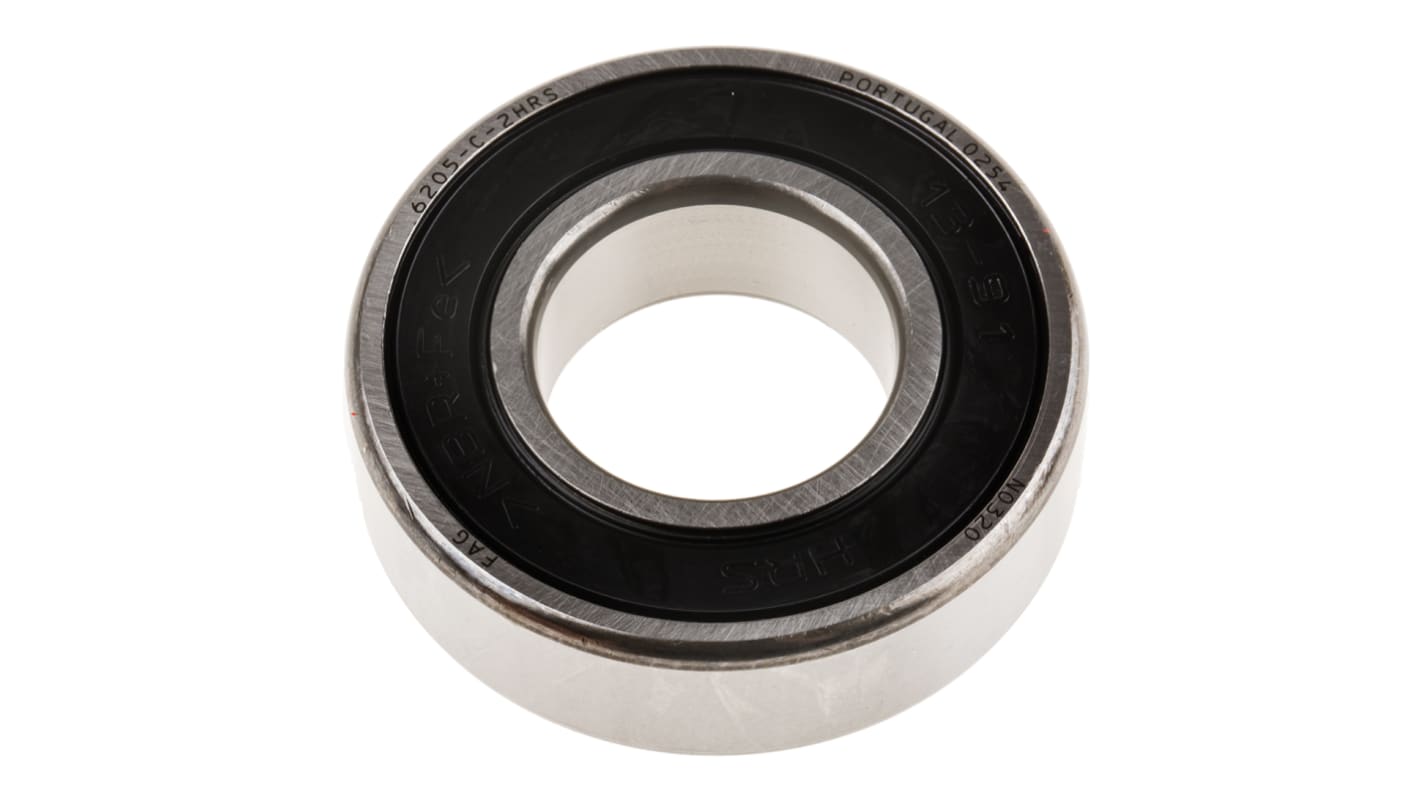

FAG 6205-C-2HRS Single Row Deep Groove Ball Bearing- Both Sides Sealed 25mm I.D, 52mm O.D
- RS Stock No.:
- 137-1660
- Mfr. Part No.:
- 6205-C-2HRS
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£6.79
(exc. VAT)
£8.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 145 unit(s) ready to ship
- Plus 39 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £6.79 |
5 - 9 | £6.52 |
10 - 24 | £6.37 |
25 + | £6.25 |
*price indicative
- RS Stock No.:
- 137-1660
- Mfr. Part No.:
- 6205-C-2HRS
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 25mm | |
Outside Diameter | 52mm | |
Race Width | 15mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Steel | |
Number of Rows | 1 | |
Static Load Rating | 7.8kN | |
Dynamic Load Rating | 15.9kN | |
Bore Type | Parallel | |
Clearance Code | CN | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 6205 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 25mm | ||
Outside Diameter 52mm | ||
Race Width 15mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 7.8kN | ||
Dynamic Load Rating 15.9kN | ||
Bore Type Parallel | ||
Clearance Code CN | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 6205 | ||
Schaeffler Ball Bearing, 25mm Inside Diameter, 52mm Outside Diameter - 6205-C-2HRS
This ball bearing is a single row deep groove type with a 25mm inner diameter and a 52mm outer diameter. Designed to provide excellent performance in a wide range of applications, this sealed ball bearing consists of high-quality steel materials that ensure durability. With a race width of 15mm, it is well-suited for demanding operational conditions, benefiting from an efficient sealing arrangement on both sides.
Features & Benefits
• Offers high static load rating of 7.8 kN for heavy loads
• Provides optimal dynamic load rating of 15.9 kN for reliability
• Features CN clearance for standard operating conditions
• Both sides sealed to prevent contamination and extend lifespan
• Constructed from steel for enhanced strength and durability
• Single row design facilitates easy installation and reduces friction
• Provides optimal dynamic load rating of 15.9 kN for reliability
• Features CN clearance for standard operating conditions
• Both sides sealed to prevent contamination and extend lifespan
• Constructed from steel for enhanced strength and durability
• Single row design facilitates easy installation and reduces friction
Applications
• Utilised in various automation systems for smooth motion
• Ideal for electrical equipment requiring compact bearings
• Employed in mechanical assemblies needing reliable performance
• Used in machinery where space is limited and load is high
• Suitable for in both industrial and commercial settings
• Ideal for electrical equipment requiring compact bearings
• Employed in mechanical assemblies needing reliable performance
• Used in machinery where space is limited and load is high
• Suitable for in both industrial and commercial settings
What kind of loads can this product manage effectively?
It can handle heavy static loads up to 7.8 kN and dynamic loads of 15.9 kN, making it suitable for demanding applications.
How does the sealing arrangement enhance its performance?
The double sealing prevents dirt and contaminants from entering, prolonging the bearing's operational life and maintaining performance.
What material is used for its construction and what advantages does it provide?
The bearing is made of high-quality steel, which offers superior strength, durability, and resistance to wear in various applications.
In what environments is this bearing typically effective?
It performs well in environments requiring reliability, such as automation systems and electrical machinery, where space and load are critical concerns.
How can the design of this bearing benefit its installation?
The single row design simplifies installation processes, allowing for quicker assembly while optimising performance with reduced friction.
