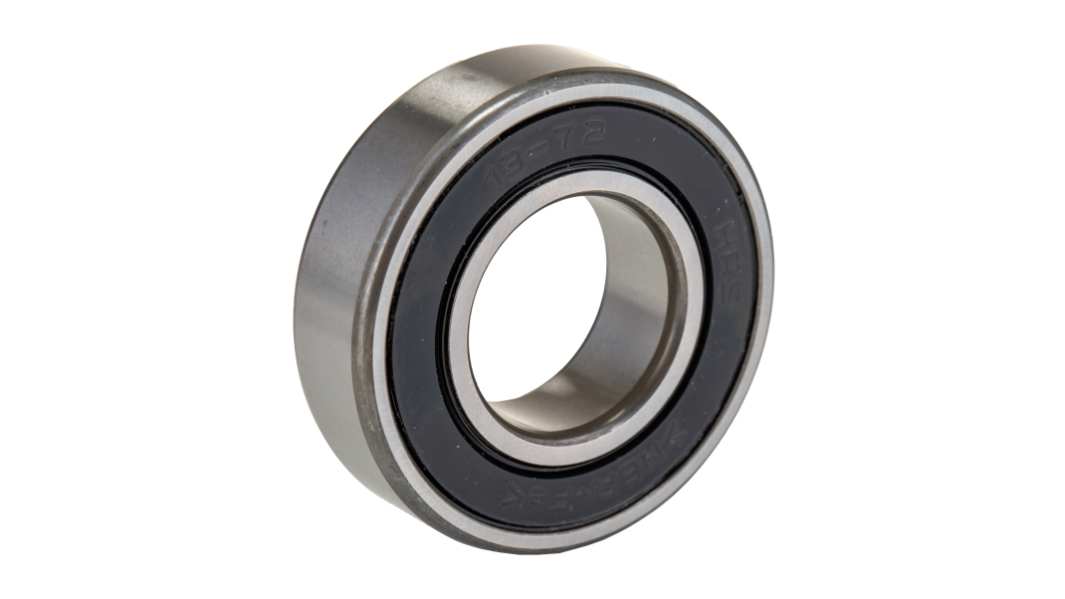

FAG 6205-C-2HRS-C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 25mm I.D, 52mm O.D
- RS Stock No.:
- 137-1659
- Mfr. Part No.:
- 6205-C-2HRS-C3
- Brand:
- FAG
Save 8% when you buy 25 units
Subtotal (1 unit)*
£6.79
(exc. VAT)
£8.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 50 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £6.79 |
5 - 9 | £6.52 |
10 - 24 | £6.40 |
25 + | £6.24 |
*price indicative
- RS Stock No.:
- 137-1659
- Mfr. Part No.:
- 6205-C-2HRS-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 25mm | |
Outside Diameter | 52mm | |
Race Width | 15mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Steel | |
Number of Rows | 1 | |
Static Load Rating | 7.8kN | |
Dynamic Load Rating | 15.9kN | |
Bore Type | Parallel | |
Clearance Code | C3 | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 6205 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 25mm | ||
Outside Diameter 52mm | ||
Race Width 15mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 7.8kN | ||
Dynamic Load Rating 15.9kN | ||
Bore Type Parallel | ||
Clearance Code C3 | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 6205 | ||
Deep Groove Ball Bearings
FAG from Schaeffler deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products are of simple design, durable in operation and easy to maintain. They are available in single and double row designs and in open and sealed variants. Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields.
Features and Benefits
• Low noise levels
• Improved sealing
• Lower friction
• Cost-effective
Product Application Information
Open bearings are suitable for high speeds. Due to the manufacturing process, they have turned recesses for sealing washers and sealing shields.
Suffixes
2Z - Gap seals on both sides. These bearings are greased using a high-quality grease, lubricated for life and suitable for high speeds
2HRS - Lip seals on both sides made from nitrile butadiene rubber. These bearings have an improved sealing function and retention in the outer ring. They are greased using a high-quality grease, lubricated for life and suitable for moderate speeds
2BRS - Non-contact seals on both sides. Their friction level is as low as with the gap seals. In addition, they offer better protection against the ingress of dust and the escape of lubricant
2RSR - Lip seals on both sides made from nitrile butadiene rubber NBR and are suitable for moderate speeds
C - Modified internal construction in Generation C
Schaeffler 2 Light Series Ball Bearing, 25mm Inside Diameter, 52mm Outside Diameter - 6205-C-2HRS-C3
This ball bearing is a reliable component ideal for various machinery applications. With an inside diameter of 25mm and an outside diameter of 52mm, this single row deep groove ball bearing features a sealed design for enhanced durability and performance. Its robust construction ensures longevity in demanding environments.
Features & Benefits
• Designed with both sides sealed for improved protection
• High load capacity rating of 15.9kN for dynamic applications
• C3 bearing clearance allows for thermal expansion and operational flexibility
• Constructed from steel for strength and efficiency
• Precision engineering ensures smooth operation in all conditions
• Ideal for high-performance machinery requiring low maintenance
• High load capacity rating of 15.9kN for dynamic applications
• C3 bearing clearance allows for thermal expansion and operational flexibility
• Constructed from steel for strength and efficiency
• Precision engineering ensures smooth operation in all conditions
• Ideal for high-performance machinery requiring low maintenance
Applications
• Used for automation systems to support rotating shafts
• Suitable for electric motors requiring reliable movement
• Employed in electronic devices where precision is crucial
• Utilised in mechanical assemblies to enhance moving parts
• Ideal for heavy machinery where load bearing is essential
• Suitable for electric motors requiring reliable movement
• Employed in electronic devices where precision is crucial
• Utilised in mechanical assemblies to enhance moving parts
• Ideal for heavy machinery where load bearing is essential
What is the significance of the C3 bearing clearance for this product?
The C3 bearing clearance allows for greater thermal expansion during operation, reducing the risk of seisure and enhancing reliability in fluctuating temperature conditions.
How does the sealed design enhance performance in industrial settings?
The sealed design of the bearing prevents contamination from dust and debris, which increases the lifespan and reduces maintenance needs in industrial applications.
What are the common uses for this type of deep groove ball bearing?
This type is frequently used in applications requiring smooth and efficient rotation, such as motors, conveyors, and in various machinery where load support is necessary.
What benefits does the steel material offer for this ball bearing?
The steel material provides high durability and strength, making it suitable for high-load applications while ensuring resistance against wear and tear.
