SKF 62/22 Single Row Deep Groove Ball Bearing- Open Type 22mm I.D, 50mm O.D
- RS Stock No.:
- 126-2354
- Mfr. Part No.:
- 62/22
- Brand:
- SKF
Subtotal (1 unit)*
£19.24
(exc. VAT)
£23.09
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 11 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £19.24 |
*price indicative
- RS Stock No.:
- 126-2354
- Mfr. Part No.:
- 62/22
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 22mm | |
Outside Diameter | 50mm | |
Race Width | 14mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 7.65kN | |
Dynamic Load Rating | 14kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Race Material | Steel | |
Partial Bearing Code | 62/22 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 22mm | ||
Outside Diameter 50mm | ||
Race Width 14mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 7.65kN | ||
Dynamic Load Rating 14kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Race Material Steel | ||
Partial Bearing Code 62/22 | ||
- COO (Country of Origin):
- IT

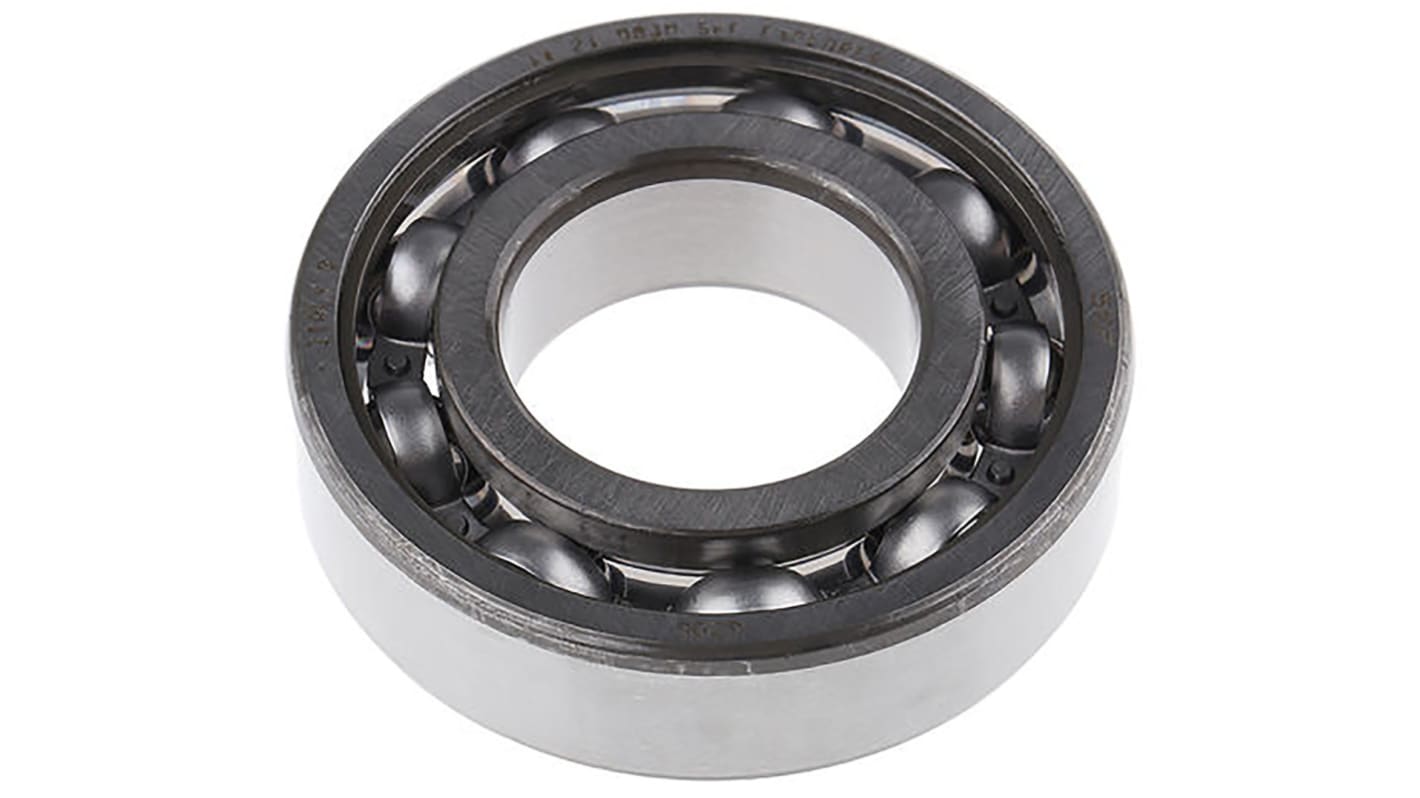

SKF Deep-Groove Ball Bearing, 22mm ID, 50mm OD - 62/22
This deep-groove ball bearing from SKF handles axial and radial loads in both forward and backward directions. It's a suitable choice for use in high-temperature applications as it's made from robust and long-lasting steel that won't corrode. The bearing is specifically designed to produce low friction, which helps to lower its operating temperature and permits faster rotational speeds. It resists vibration, which aids in keeping equipment functioning optimally to reduce downtime. A low-friction cage optimises the use of lubricant, so there's less need to grease the bearing.
• Resists chemicals for use in harsh operating conditions
• Low energy usage for efficient power consumption and improved productivity
• Runs quieter to reduce the operational noise of machinery
• Optimised internal geometry for reliability throughout its extended service life
• Low energy usage for efficient power consumption and improved productivity
• Runs quieter to reduce the operational noise of machinery
• Optimised internal geometry for reliability throughout its extended service life
Applications
• Food and luggage conveyors
• Textile machinery
• Electric motors and pumps
• Textile machinery
• Electric motors and pumps
Do I need to clean this bearing before I use it?
No, you don't need to clean this bearing before using it for the first time. It's washed multiple times as it moves through the manufacturing process in order to remove contaminants that could negatively affect it and reduce the it's service life.
