NSK 6312DDUC3 1 Row Deep Groove Ball Bearing - 60 mm ID, 130 mm OD
- RS Stock No.:
- 643-802
- Mfr. Part No.:
- 6312DDUC3
- Brand:
- NSK
Subtotal (1 unit)*
£57.94
(exc. VAT)
£69.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £57.94 |
*price indicative
- RS Stock No.:
- 643-802
- Mfr. Part No.:
- 6312DDUC3
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 60 mm | |
| Outside Diameter | 130 mm | |
| Race Width | 31mm | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 52000N | |
| Dynamic Load Rating | 90000N | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 3600rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 60 mm | ||
Outside Diameter 130 mm | ||
Race Width 31mm | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 52000N | ||
Dynamic Load Rating 90000N | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 3600rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
Non Compliant
- COO (Country of Origin):
- PL

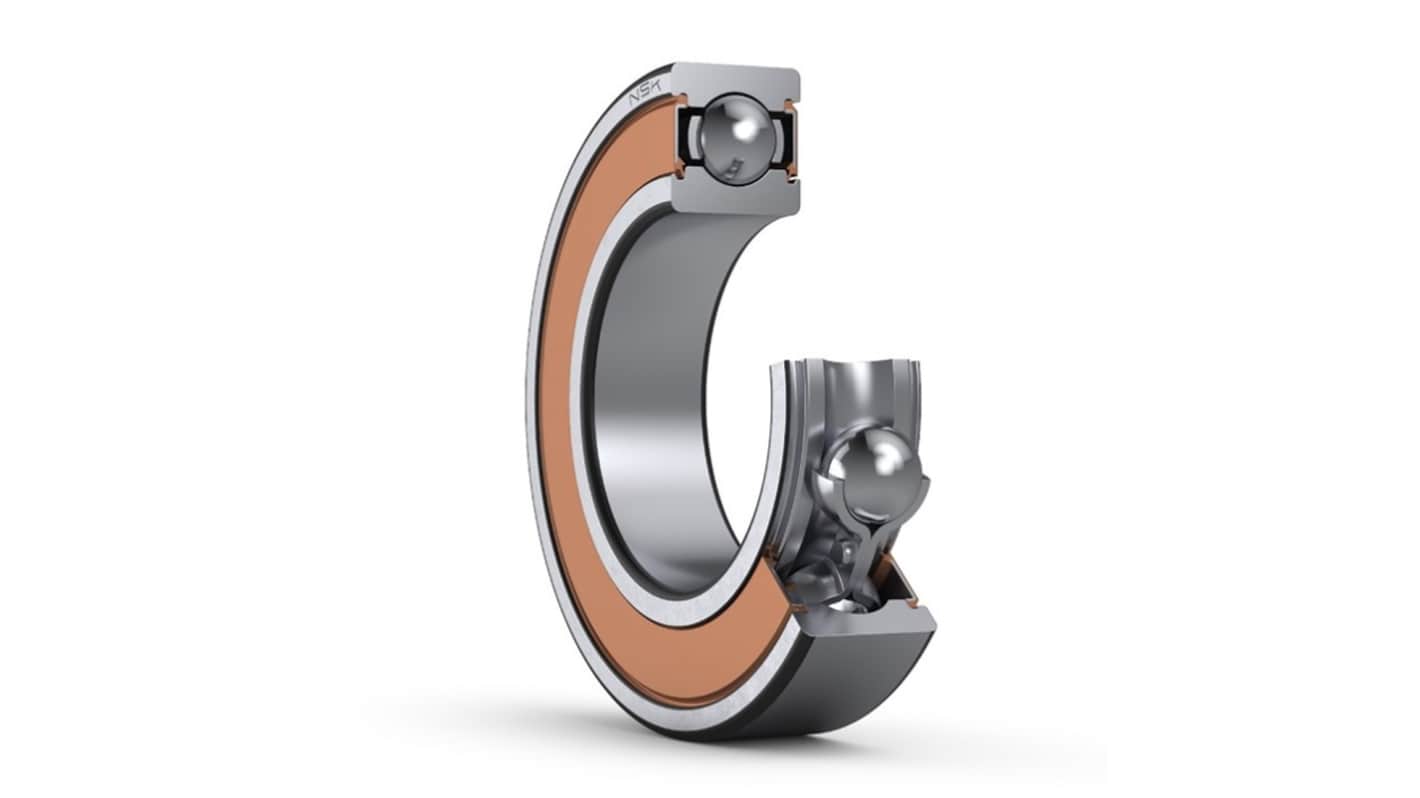

The NSK Single-row deep groove ball bearing engineered for durability and low maintenance in demanding applications. It features a 60 mm bore diameter, 130 mm outer diameter, and 31 mm width, making it well-suited for robust mechanical systems. The bearing is equipped with double contact rubber seals (DDU) and C3 internal clearance, offering enhanced protection against contaminants while accommodating thermal expansion. It delivers a basic dynamic load rating of 90,000 N and a static load rating of 52,000 N, ensuring reliable performance under heavy load conditions.
Robust and compact construction for space efficient installation
High quality bearing steel ensures excellent durability
Lightweight design
