SKF QJ 211 MA/C3 1 Row Angular Contact Ball Bearing - 55 mm ID, 100 mm OD 21 mm Race Width
- RS Stock No.:
- 463-554
- Mfr. Part No.:
- QJ 211 MA/C3
- Brand:
- SKF
Subtotal (1 unit)*
£169.74
(exc. VAT)
£203.69
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £169.74 |
*price indicative
- RS Stock No.:
- 463-554
- Mfr. Part No.:
- QJ 211 MA/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 55 mm | |
| Outside Diameter | 100 mm | |
| Race Width | 21mm | |
| Ball Material | Bearing Steel | |
| Cage Material | Machined Brass | |
| Number of Rows | 1 | |
| Contact Angle | 35° | |
| Static Load Rating | 83kN | |
| Dynamic Load Rating | 85kN | |
| Standards/Approvals | No | |
| Series | QJ 211 | |
| Limiting Speed | 11000rpm | |
| Bearing Type | Four Point Contact | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 55 mm | ||
Outside Diameter 100 mm | ||
Race Width 21mm | ||
Ball Material Bearing Steel | ||
Cage Material Machined Brass | ||
Number of Rows 1 | ||
Contact Angle 35° | ||
Static Load Rating 83kN | ||
Dynamic Load Rating 85kN | ||
Standards/Approvals No | ||
Series QJ 211 | ||
Limiting Speed 11000rpm | ||
Bearing Type Four Point Contact | ||
- COO (Country of Origin):
- AT

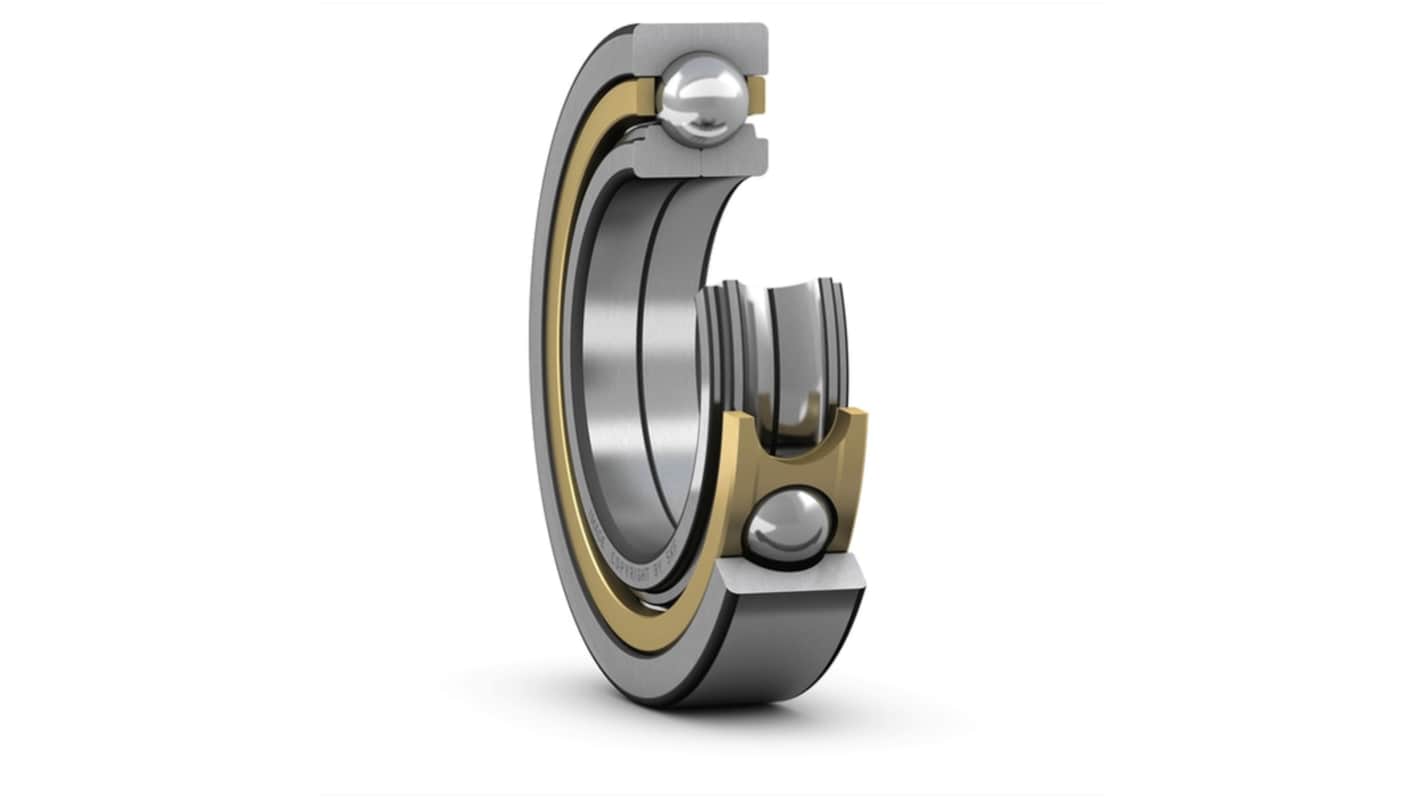

The SKF Four-point contact ball bearings can accommodate high axial loads in both directions and small radial loads. They are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves.
High speed capability
Require considerably less axial space
