SKF 61944 MA/C3 1 Row Ball Bearing - 220 mm ID, 300 mm OD
- RS Stock No.:
- 461-567
- Mfr. Part No.:
- 61944 MA/C3
- Brand:
- SKF
Subtotal (1 unit)*
£1,629.30
(exc. VAT)
£1,955.16
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,629.30 |
*price indicative
- RS Stock No.:
- 461-567
- Mfr. Part No.:
- 61944 MA/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 220mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 300mm | |
| Race Width | 38mm | |
| Ball Material | Steel | |
| Cage Material | Machined Brass | |
| Number of Rows | 1 | |
| Static Load Rating | 180kN | |
| Internal Clearance | 140 μm | |
| Dynamic Load Rating | 151kN | |
| Series | 61944 | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Limiting Speed | 3600rpm | |
| Bearing Type | Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 220mm | ||
Product Type Ball Bearing | ||
Outside Diameter 300mm | ||
Race Width 38mm | ||
Ball Material Steel | ||
Cage Material Machined Brass | ||
Number of Rows 1 | ||
Static Load Rating 180kN | ||
Internal Clearance 140 μm | ||
Dynamic Load Rating 151kN | ||
Series 61944 | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Limiting Speed 3600rpm | ||
Bearing Type Deep Groove Ball | ||
- COO (Country of Origin):
- FR
Gavin

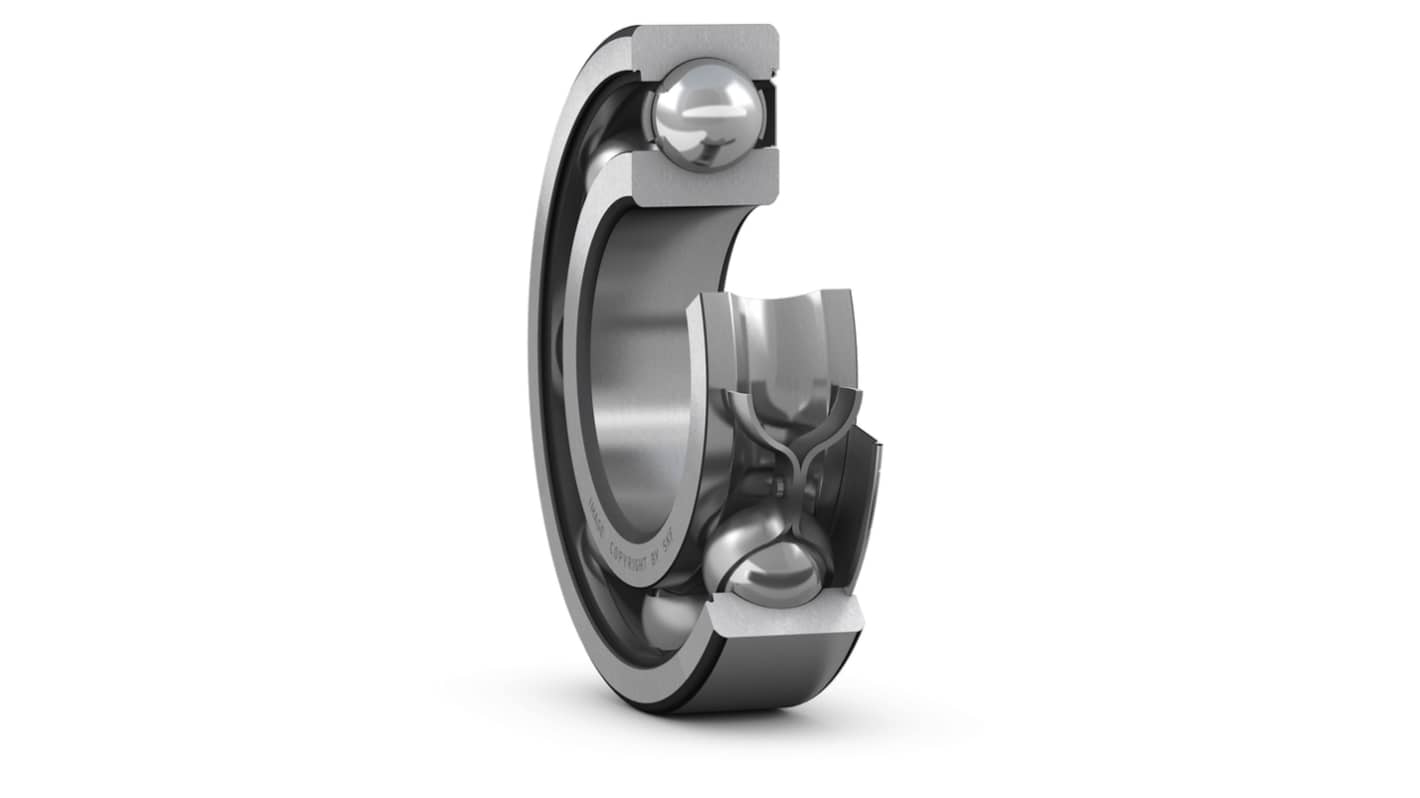

The SKF Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
Low friction
High speed capability
Accommodate radial and axial loads in both directions
