FAG 7316-B-XL-TVP-UA 1 Row Ball Bearing - 80 mm ID, 170 mm OD 39 mm Race Width
- RS Stock No.:
- 313-350
- Mfr. Part No.:
- 7316-B-XL-TVP-UA
- Brand:
- FAG
Subtotal (1 unit)*
£366.52
(exc. VAT)
£439.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £366.52 |
*price indicative
- RS Stock No.:
- 313-350
- Mfr. Part No.:
- 7316-B-XL-TVP-UA
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 80 mm | |
| Outside Diameter | 170 mm | |
| Race Width | 39mm | |
| Cage Material | Fibreglass Reinforced Polyamide | |
| End Type | Unsealed | |
| Number of Rows | 1 | |
| Internal Clearance | Small Axial Internal Clearance | |
| Contact Angle | 40° | |
| Static Load Rating | 124000N | |
| Dynamic Load Rating | 155000N | |
| Standards/Approvals | RoHS | |
| Series | 73-B-XL- TVP | |
| Limiting Speed | 5200rpm | |
| Flange Outside Diameter | 170mm | |
| Bearing Type | Angular Contact | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 80 mm | ||
Outside Diameter 170 mm | ||
Race Width 39mm | ||
Cage Material Fibreglass Reinforced Polyamide | ||
End Type Unsealed | ||
Number of Rows 1 | ||
Internal Clearance Small Axial Internal Clearance | ||
Contact Angle 40° | ||
Static Load Rating 124000N | ||
Dynamic Load Rating 155000N | ||
Standards/Approvals RoHS | ||
Series 73-B-XL- TVP | ||
Limiting Speed 5200rpm | ||
Flange Outside Diameter 170mm | ||
Bearing Type Angular Contact | ||
- COO (Country of Origin):
- DE

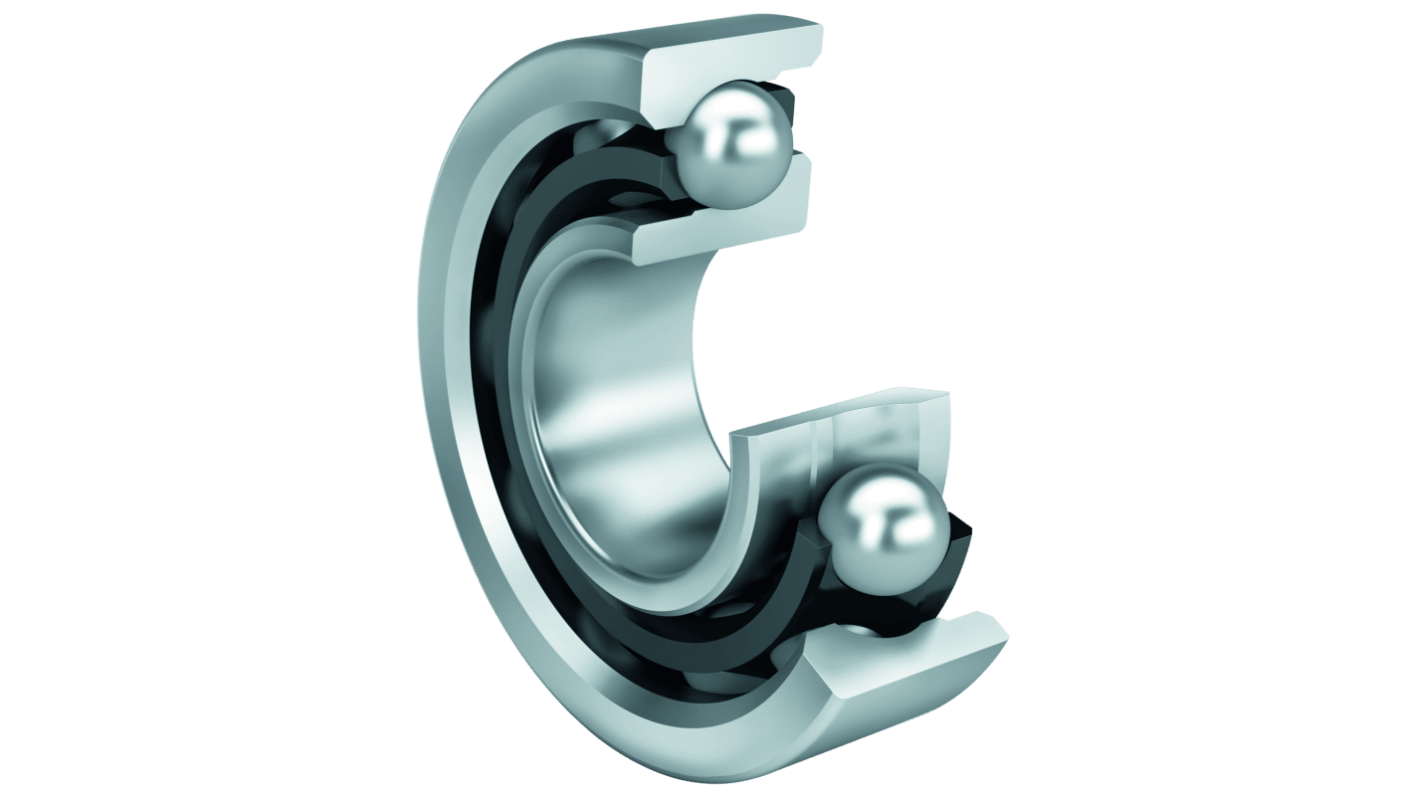

The FAG Angular Contact Ball Bearing is engineered for high precision and durability, designed specifically for applications that require enhanced performance. This product features a single row configuration, ensuring optimal load distribution and improved service life. With its innovative plastic cage made from glass fibre reinforced polyamide, it adeptly manages centrifugal forces whilst providing reduced friction. Notably, its dimensional stabilisation allows for exceptional operational reliability, even under challenging conditions.
Single row design ensures efficient load handling and stability
Plastic cage significantly reduces weight while enhancing wear resistance
Designed for a wide temperature range for versatility in industrial environments
Not sealed for easy maintenance and adaptability with various lubrication types
Engineered for low friction contributing to energy efficiency in operation
