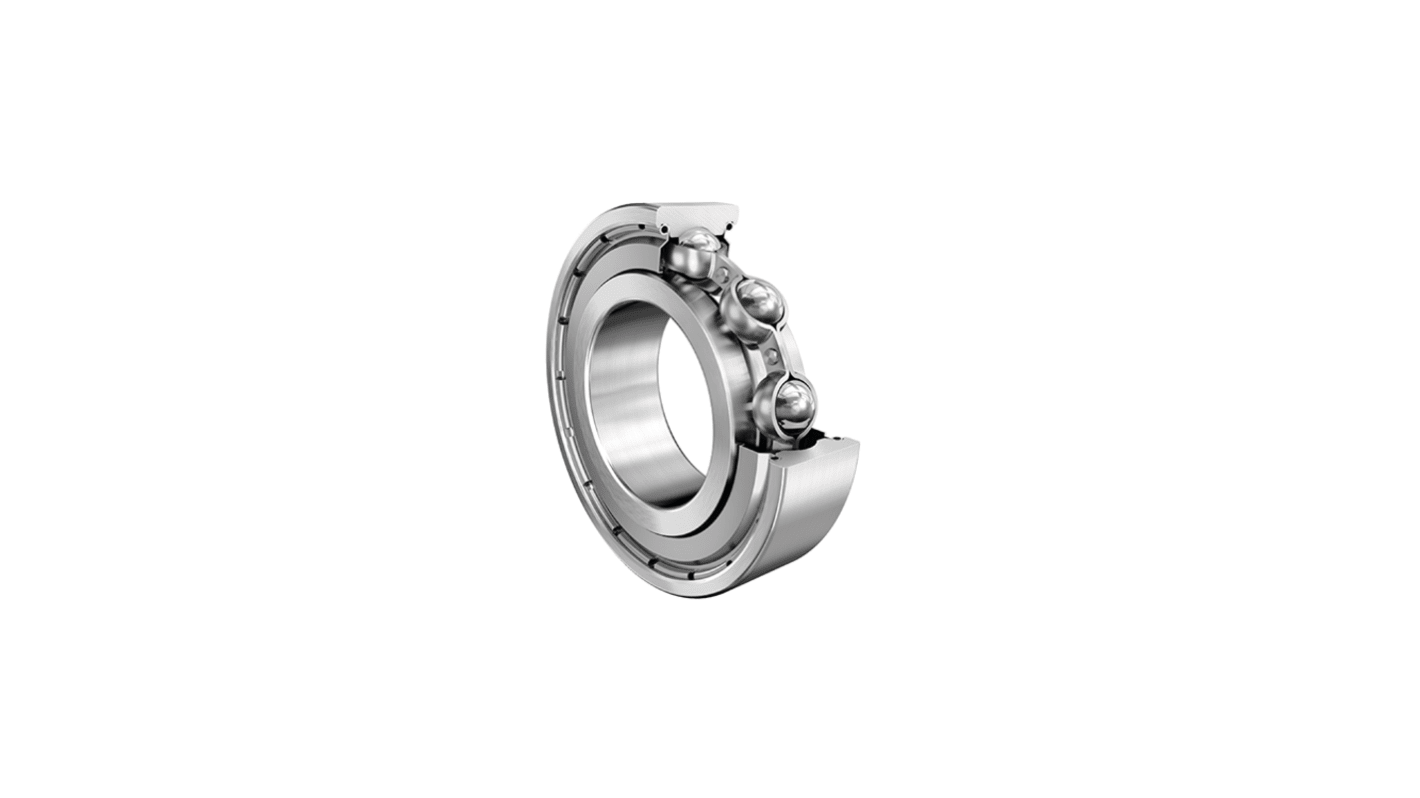

FAG 686-2Z-HLC 1 Row Ball Bearing - 6 mm ID, 13 mm OD
- RS Stock No.:
- 313-138
- Mfr. Part No.:
- 686-2Z-HLC
- Brand:
- FAG
Subtotal (1 pack of 10 units)*
£78.72
(exc. VAT)
£94.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £78.72 | £7.872 |
*price indicative
- RS Stock No.:
- 313-138
- Mfr. Part No.:
- 686-2Z-HLC
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 6 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 13 mm | |
| Race Width | 5mm | |
| Cage Material | Steel Sheet Metal | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 438N | |
| Dynamic Load Rating | 1.08N | |
| Standards/Approvals | RoHS | |
| Series | 686 | |
| Bore Type | Cylindrical | |
| Limiting Speed | 61rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 6 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 13 mm | ||
Race Width 5mm | ||
Cage Material Steel Sheet Metal | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 438N | ||
Dynamic Load Rating 1.08N | ||
Standards/Approvals RoHS | ||
Series 686 | ||
Bore Type Cylindrical | ||
Limiting Speed 61rpm | ||
Bearing Type Deep Groove | ||
- COO (Country of Origin):
- JP
The FAG Deep Groove Ball Bearing is designed for optimal performance in a variety of applications, successfully balancing durability and efficiency. Engineered with precision, it features a robust steel sheet metal cage and non-contact shields, ensuring effective protection against contaminants. The bearing is tailored to endure demanding conditions, with stabilization measures that allow operation at elevated temperatures up to 120°C. Its cylindrical bore type further enhances installation versatility, making it a reliable choice for both industrial and automotive uses.
Lightweight design ensures easy handling and installation
Lifetime lubrication ensures reduced maintenance needs
Radial load capacity enhances reliability under strain
