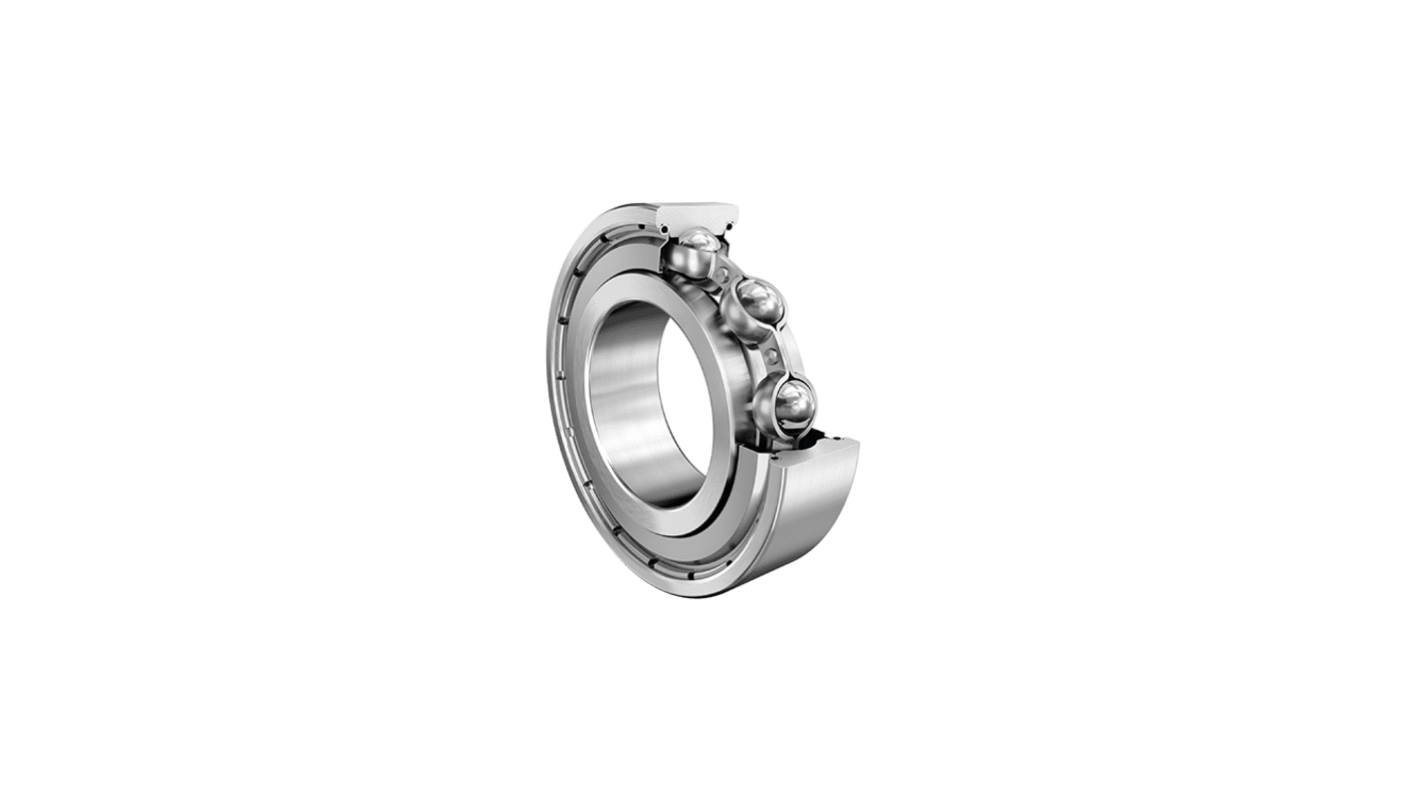

FAG 695-2Z-HLC 1 Row Deep Groove Ball Bearing - 5 mm ID, 13 mm OD
- RS Stock No.:
- 312-894
- Mfr. Part No.:
- 695-2Z-HLC
- Brand:
- FAG
Subtotal (10 units, in packs of 10)*
£94.45
(exc. VAT)
£113.34
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 10 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £94.45 | £9.445 |
*price indicative
- RS Stock No.:
- 312-894
- Mfr. Part No.:
- 695-2Z-HLC
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 5mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 13mm | |
| Race Width | 4mm | |
| Race Material | Bearing Steel | |
| Ball Material | Steel | |
| Cage Material | Steel Sheet Metal | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 430N | |
| Dynamic Load Rating | 1.08N | |
| Bore Type | Cylindrical | |
| Series | 695-2Z-HLC | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 63rpm | |
| Flange Outside Diameter | 13mm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 5mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 13mm | ||
Race Width 4mm | ||
Race Material Bearing Steel | ||
Ball Material Steel | ||
Cage Material Steel Sheet Metal | ||
End Type Shielded | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 430N | ||
Dynamic Load Rating 1.08N | ||
Bore Type Cylindrical | ||
Series 695-2Z-HLC | ||
Standards/Approvals RoHS | ||
Limiting Speed 63rpm | ||
Flange Outside Diameter 13mm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Deep Groove | ||
- COO (Country of Origin):
- CN
Schaeffler 695-2Z-HLC Series Deep Groove Ball Bearing, 5mm Bore Diameter, 13mm Outside Diameter - 695-2Z-HLC
This deep groove ball bearing is designed to support radial and axial loads in rotating assemblies where sealed operation and grease lubrication are required. It incorporates non-contact shields on both sides and a steel sheet-metal cage, offering maintenance‑friendly performance across a broad temperature range and standard internal clearance for typical industrial duty.
Features and Benefits:
• Steel sheet-metal cage reduces risk of cage deformation
• Sealed both sides prevents external contamination ingress
• Normal internal clearance CN allows controlled radial play
• Grease-filled for lifetime lubrication and low upkeep
• Rated dynamic load 1,080 N supports continuous radial stresses
• Operating temperature range −30°C to 120°C enables varied environments
• Sealed both sides prevents external contamination ingress
• Normal internal clearance CN allows controlled radial play
• Grease-filled for lifetime lubrication and low upkeep
• Rated dynamic load 1,080 N supports continuous radial stresses
• Operating temperature range −30°C to 120°C enables varied environments
Applications
• Suitable for Compact electric motors and small drives
• Ideal for precision instrumentation rotating shafts
• Used with handheld power tools requiring sealed bearings
• Can be used for conveyor idler rollers in light industry
• Used for hobbyist robotics and small automation axes
• Ideal for precision instrumentation rotating shafts
• Used with handheld power tools requiring sealed bearings
• Can be used for conveyor idler rollers in light industry
• Used for hobbyist robotics and small automation axes
What shaft and housing shoulder limits must be observed?
Minimum shaft shoulder diameter is 6.4 mm and maximum housing shoulder diameter is 11.6 mm.
How does the bearing perform at elevated temperatures?
Dimensional stability of rings is maintained up to 120°C and lubricant suitability extends operation to that limit.
What are the load ratings relevant to fatigue and static conditions?
The fatigue load limit is 17.5 N and the Basic static radial load rating is 430 N.
What rotational speed capability does it offer?
The limiting speed is 63,000 rpm for applications within the specified lubrication and temperature range.
