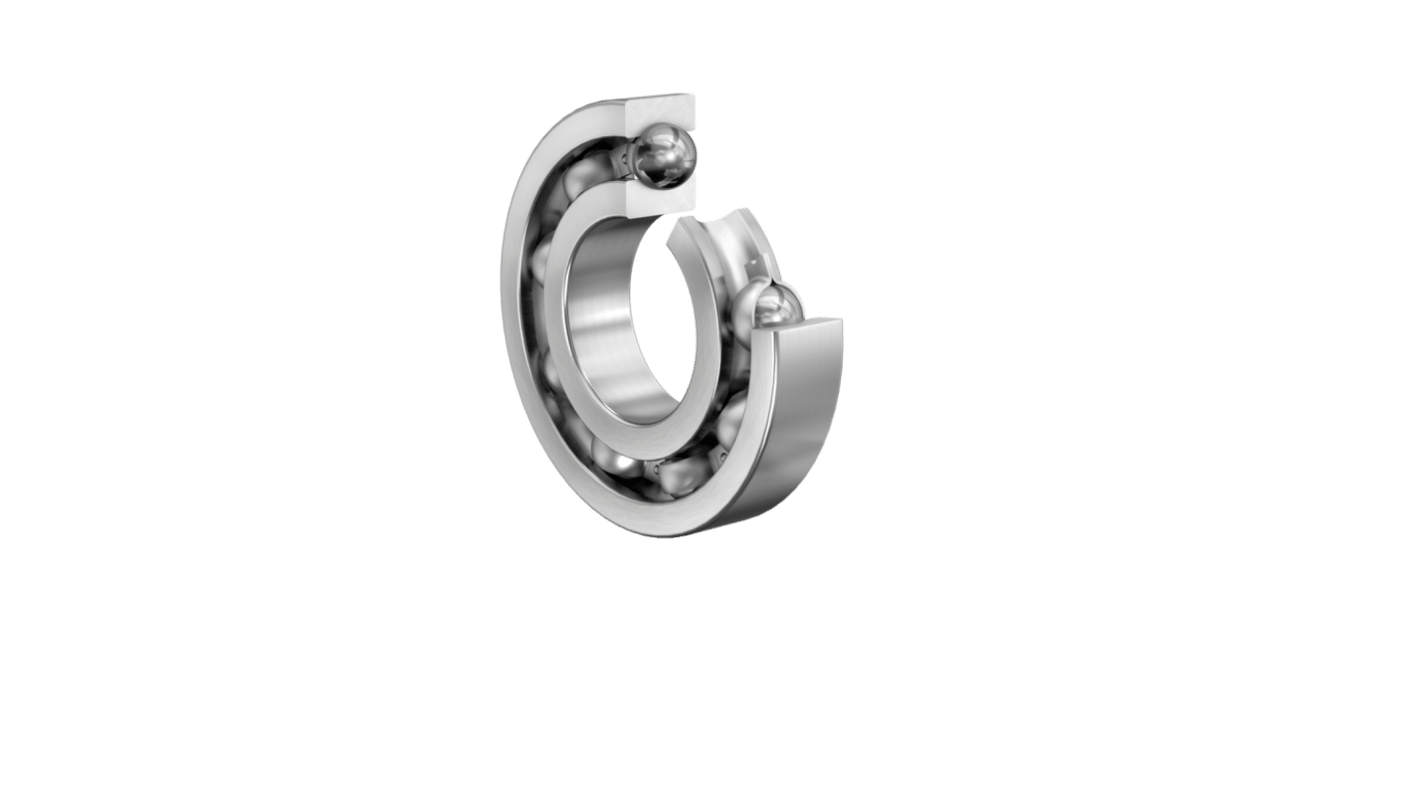

FAG 61802-HLC 1 Row Deep Groove Ball Bearing - 15 mm ID, 24 mm OD
- RS Stock No.:
- 313-095
- Mfr. Part No.:
- 61802-HLC
- Brand:
- FAG
Subtotal (10 units, in packs of 10)*
£113.54
(exc. VAT)
£136.25
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £113.54 | £11.354 |
*price indicative
- RS Stock No.:
- 313-095
- Mfr. Part No.:
- 61802-HLC
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 15mm | |
| Outside Diameter | 24mm | |
| Race Width | 5mm | |
| Cage Material | Steel | |
| Race Material | Steel | |
| Ball Material | Chrome Steel 52100 | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 1260N | |
| Internal Clearance | Normal | |
| Dynamic Load Rating | 2070N | |
| Series | 60 | |
| Standards/Approvals | DIN 625-1 | |
| Bore Type | Cylindrical | |
| Limiting Speed | 45000rpm | |
| Bearing Type | Deep Groove | |
| Race Type | Deep Grooved | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 15mm | ||
Outside Diameter 24mm | ||
Race Width 5mm | ||
Cage Material Steel | ||
Race Material Steel | ||
Ball Material Chrome Steel 52100 | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 1260N | ||
Internal Clearance Normal | ||
Dynamic Load Rating 2070N | ||
Series 60 | ||
Standards/Approvals DIN 625-1 | ||
Bore Type Cylindrical | ||
Limiting Speed 45000rpm | ||
Bearing Type Deep Groove | ||
Race Type Deep Grooved | ||
- COO (Country of Origin):
- JP
The FAG Deep Groove Ball Bearing is engineered for reliability and efficiency in a variety of applications. Designed with a single row structure, it excels in environments that demand steady performance and robustness. Its steel sheet metal cage ensures durability while maintaining optimal functionality. The product’s specifications commend it for precision and stability, providing a solid foundation for machinery operations.
Offers a normal internal clearance which ensuring a balanced load distribution
Boasts an exceptional limiting speed which ensuring high rotational performance
Includes minimum chamfer dimensions to facilitate easier installation
Provides excellent static and dynamic load ratings for reliable operation
Optimised for radial and axial loads making it suitable for diverse mechanical setups
