FAG 62310-2RSR 1 Row Ball Bearing - 50 mm ID, 110 mm OD
- RS Stock No.:
- 312-370
- Mfr. Part No.:
- 62310-2RSR
- Brand:
- FAG
Subtotal (1 unit)*
£110.03
(exc. VAT)
£132.04
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £110.03 |
*price indicative
- RS Stock No.:
- 312-370
- Mfr. Part No.:
- 62310-2RSR
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 50mm | |
| Outside Diameter | 110mm | |
| Race Width | 40mm | |
| Ball Material | Steel | |
| Race Material | Steel | |
| Cage Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 38000N | |
| Internal Clearance | Normal | |
| Dynamic Load Rating | 66000N | |
| Series | 623 | |
| Standards/Approvals | DIN 625-1 | |
| Bore Type | Cylindrical | |
| Limiting Speed | 3950rpm | |
| Flange Outside Diameter | 110mm | |
| Bearing Type | Deep Groove | |
| Race Type | Deep Grooved | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 50mm | ||
Outside Diameter 110mm | ||
Race Width 40mm | ||
Ball Material Steel | ||
Race Material Steel | ||
Cage Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 38000N | ||
Internal Clearance Normal | ||
Dynamic Load Rating 66000N | ||
Series 623 | ||
Standards/Approvals DIN 625-1 | ||
Bore Type Cylindrical | ||
Limiting Speed 3950rpm | ||
Flange Outside Diameter 110mm | ||
Bearing Type Deep Groove | ||
Race Type Deep Grooved | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

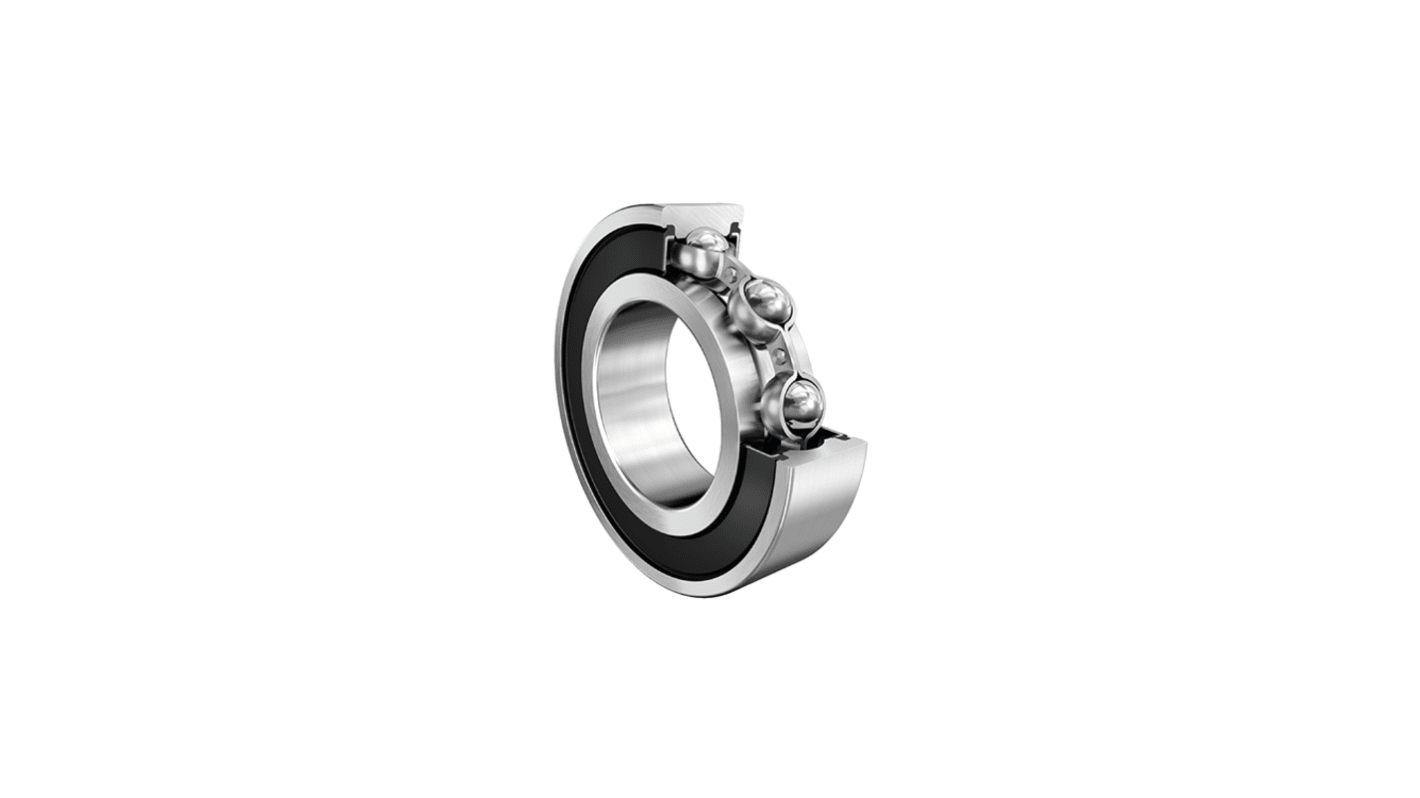

The FAG Deep Groove Ball Bearing is expertly crafted for precision and reliability, serving as a fundamental component in various mechanical applications. Designed to accommodate both radial and axial loads, this bearing ensures smooth and efficient operation. With its robust sealing on both sides, it offers outstanding protection against contaminants, enhancing the longevity and performance of the unit.
Provides lifetime lubrication significantly reducing maintenance needs and downtime
Optimised for use in applications requiring high speed performance
Features a normal internal clearance allowing for versatile mounting options
