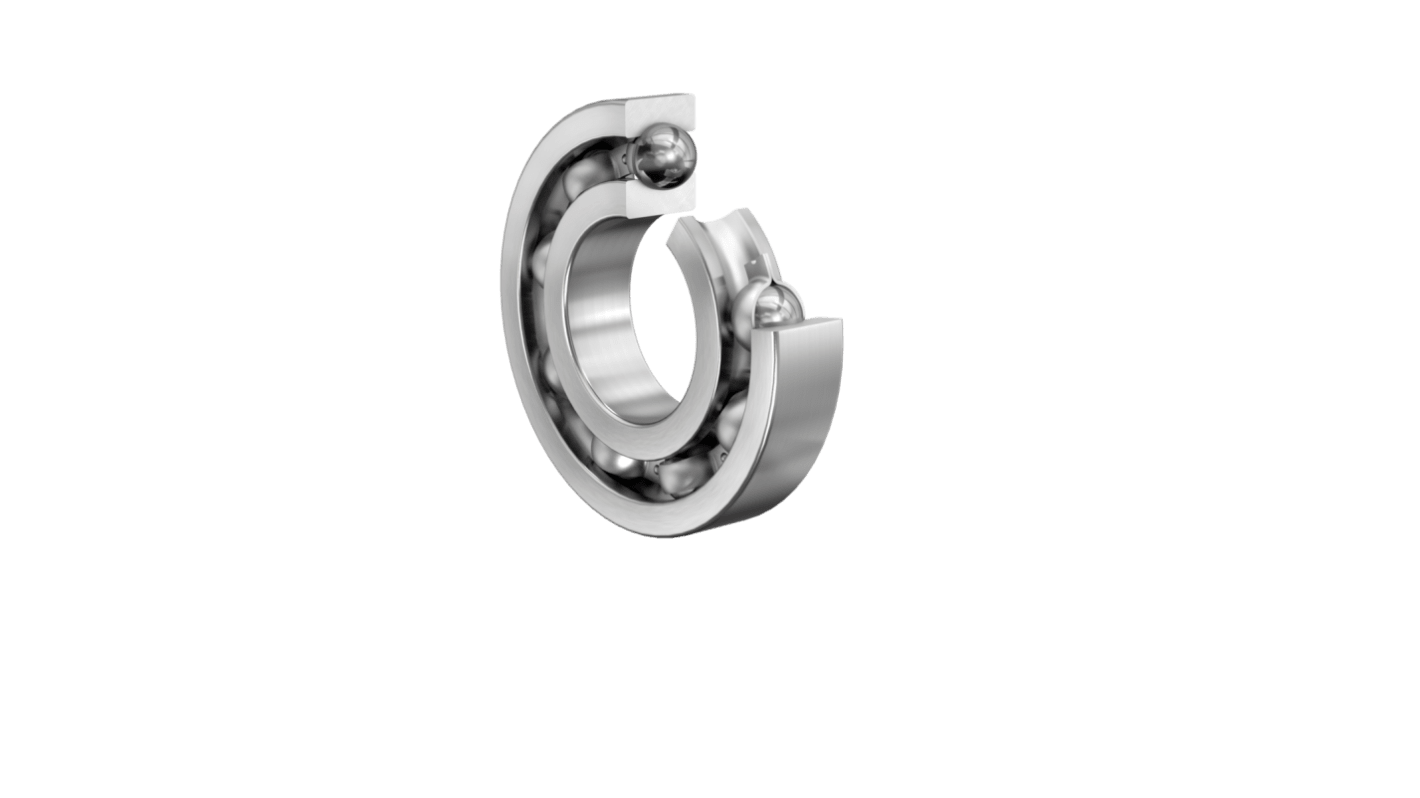

FAG 6304-N 1 Row Deep Groove Ball Bearing - 20 mm ID, 52 mm OD
- RS Stock No.:
- 312-346
- Mfr. Part No.:
- 6304-N
- Brand:
- FAG
Subtotal (1 unit)*
£12.57
(exc. VAT)
£15.08
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.57 |
*price indicative
- RS Stock No.:
- 312-346
- Mfr. Part No.:
- 6304-N
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 20mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 52mm | |
| Race Width | 15mm | |
| Race Material | Steel | |
| Cage Material | Steel | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | Normal | |
| Static Load Rating | 7900N | |
| Dynamic Load Rating | 16900N | |
| Bore Type | Cylindrical | |
| Series | 63 | |
| Standards/Approvals | DIN 625-1 | |
| Limiting Speed | 19800rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Flange Outside Diameter | 52mm | |
| Race Type | Deep Grooved | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 20mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 52mm | ||
Race Width 15mm | ||
Race Material Steel | ||
Cage Material Steel | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance Normal | ||
Static Load Rating 7900N | ||
Dynamic Load Rating 16900N | ||
Bore Type Cylindrical | ||
Series 63 | ||
Standards/Approvals DIN 625-1 | ||
Limiting Speed 19800rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Flange Outside Diameter 52mm | ||
Race Type Deep Grooved | ||
RoHS Status: Exempt
The FAG Deep Groove Ball Bearing is designed for a variety of applications, providing reliability and longevity in operation. Built with a sturdy steel sheet metal cage and a ring groove for a snap ring, this bearing ensures efficient performance under load. Its dimensional stability allows for heat resistance up to 120°C, making it ideal for applications that require durability. With its normal internal clearance and the capacity to sustain both radial and axial loads, this bearing serves as a robust solution for diverse mechanical needs.
Designed for easy integration into existing machinery with standardised dimensions
Ensures effective load distribution due to its well designed geometry
Facilitates smooth operation in both radial and axial load scenarios
Manufactured with precision for consistent quality and performance
