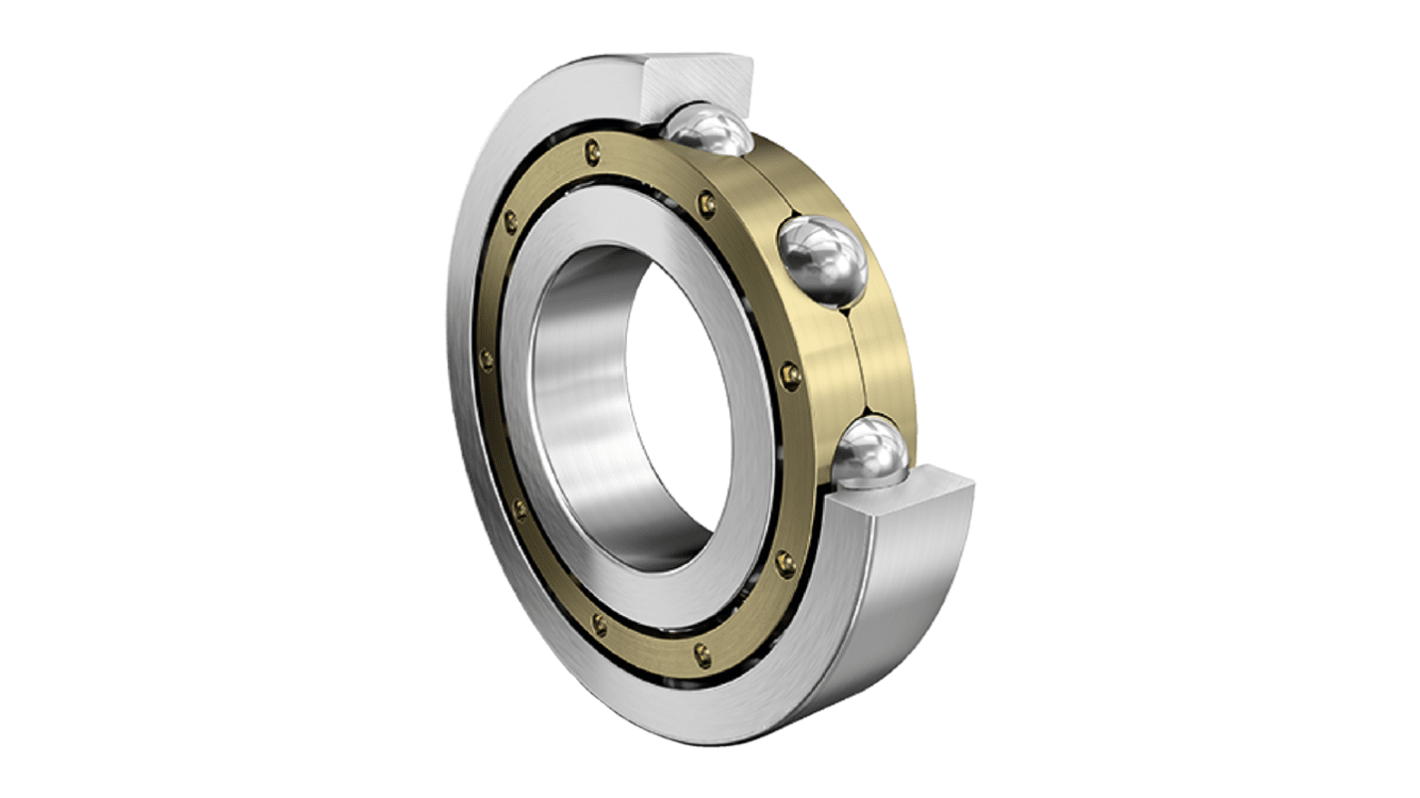

FAG 6052-M-C3 1 Row Deep Groove Ball Bearing - 260 mm ID, 400 mm OD
- RS Stock No.:
- 310-536
- Mfr. Part No.:
- 6052-M-C3
- Brand:
- FAG
Subtotal (1 unit)*
£2,923.75
(exc. VAT)
£3,508.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,923.75 |
*price indicative
- RS Stock No.:
- 310-536
- Mfr. Part No.:
- 6052-M-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 260 mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 400 mm | |
| Race Width | 65mm | |
| Cage Material | Brass | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 405000N | |
| Dynamic Load Rating | 310000N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Limiting Speed | 2750rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 260 mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 400 mm | ||
Race Width 65mm | ||
Cage Material Brass | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 405000N | ||
Dynamic Load Rating 310000N | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Limiting Speed 2750rpm | ||
Bearing Type Deep Groove | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
The FAG Deep Groove Ball Bearing is engineered for durability and efficiency, making it an ideal choice for a variety of applications. Featuring a robust solid brass cage and designed to accommodate high radial loads, this bearing ensures reliable performance even under challenging conditions. With a bore diameter of 260 mm and an impressive outside diameter of 400 mm, this model offers excellent stability.
Solid brass cage that improves load capacity and reduces wear
Designed for high radial load applications which ensuring longevity
Cylindrical bore type for simplified installation and maintenance
Excellent fatigue load limit that supports extended service life
Non sealed design provides flexibility in lubrication methods
