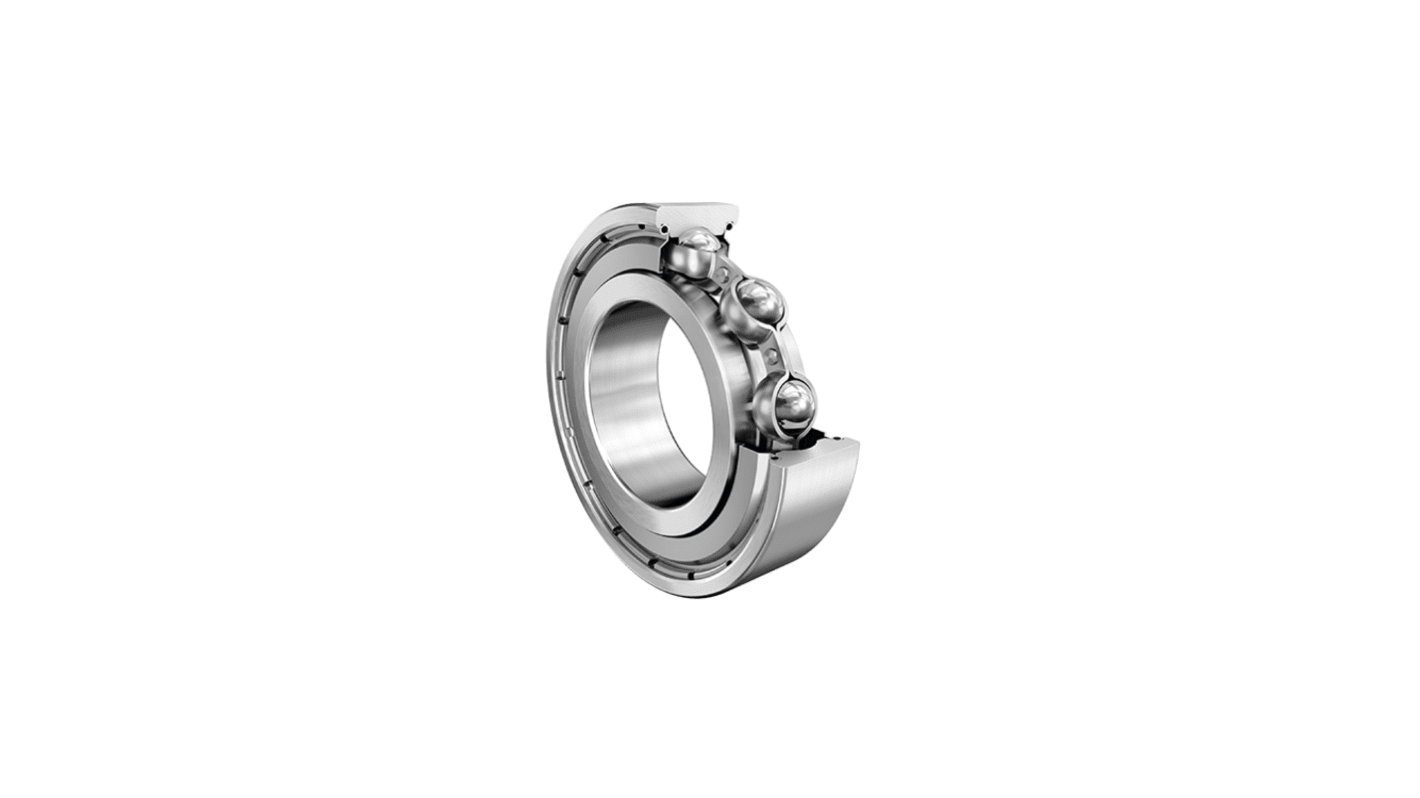

FAG 6026-2Z-C3 1 Row Deep Groove Ball Bearing - 130 mm ID, 200 mm OD
- RS Stock No.:
- 310-523
- Mfr. Part No.:
- 6026-2Z-C3
- Brand:
- FAG
Subtotal (1 unit)*
£282.51
(exc. VAT)
£339.01
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £282.51 |
*price indicative
- RS Stock No.:
- 310-523
- Mfr. Part No.:
- 6026-2Z-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 130mm | |
| Outside Diameter | 200mm | |
| Race Width | 33mm | |
| Cage Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 101000N | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 113000N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Limiting Speed | 3800rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 130mm | ||
Outside Diameter 200mm | ||
Race Width 33mm | ||
Cage Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 101000N | ||
Internal Clearance C3 | ||
Dynamic Load Rating 113000N | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Limiting Speed 3800rpm | ||
Bearing Type Deep Groove | ||
- COO (Country of Origin):
- DE
The FAG Deep Groove Ball Bearing is engineered to deliver optimal performance and reliability in various applications. With its robust design, it ensures minimal friction and high load capacity, making it an ideal choice for industrial machinery. The component features non contact shields on both sides, effectively preventing the ingress of contaminants while maintaining lubrication. Its steel sheet metal cage allows for high speed operation, ensuring longevity and durability.
Non contact shields enhance protection against contaminants
Sturdy steel sheet metal cage contributes to high operational speeds
Dimensionally stabilised design allows for reliable performance at elevated temperatures
High dynamic load rating offers robust performance under heavy loads
Greater internal clearance promotes effective operation in challenging conditions
