Subtotal (1 unit)*
£6.82
(exc. VAT)
£8.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 28 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.82 |
*price indicative
- RS Stock No.:
- 146-231
- Mfr. Part No.:
- 6006EE
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Product Type | Ball Bearing | |
| Inside Diameter | 30mm | |
| Outside Diameter | 55mm | |
| Race Width | 13mm | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 8.3kN | |
| Dynamic Load Rating | 13.9kN | |
| Series | 6006EE | |
| Standards/Approvals | No | |
| Limiting Speed | 8000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Product Type Ball Bearing | ||
Inside Diameter 30mm | ||
Outside Diameter 55mm | ||
Race Width 13mm | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 8.3kN | ||
Dynamic Load Rating 13.9kN | ||
Series 6006EE | ||
Standards/Approvals No | ||
Limiting Speed 8000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- CN

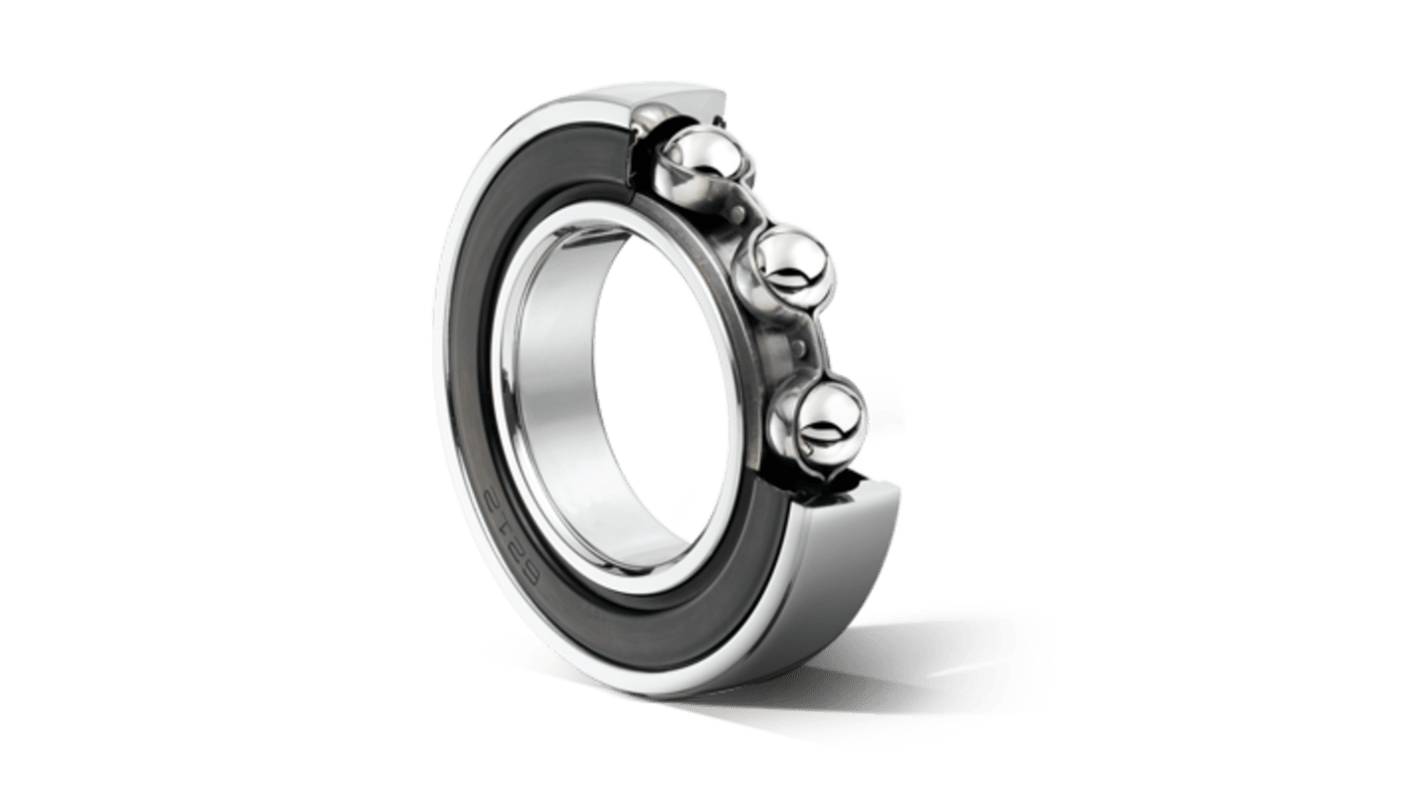

The SNR Single Row Deep Groove Ball Bearings demonstrate strong performance, featuring a dynamic load rating of 13.9 kN and a static load rating of 8.3 kN. With a fatigue limit load of 0.38 kN and a coefficient of 14.8, they ensure efficient operation across various conditions. Designed for high-speed applications, these bearings can reach a mechanical limit speed of 8,000 rpm, providing reliability and durability in diverse operational environments.
4.586 Hz Characteristic outer ring frequency
6.414 Hz Characteristic inner ring frequency
0.417 Hz Characteristic cage frequency
5.853 Hz Characteristic rolling element frequency
