Subtotal (1 unit)*
£4.84
(exc. VAT)
£5.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 71 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.84 |
*price indicative
- RS Stock No.:
- 146-220
- Mfr. Part No.:
- 6004EE
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Product Type | Ball Bearing | |
| Inside Diameter | 20 mm | |
| Outside Diameter | 42 mm | |
| Race Width | 12mm | |
| Cage Material | Steel | |
| Static Load Rating | 5.1kN | |
| Standards/Approvals | RoHS | |
| Bearing Type | Single Row Deep Groove | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Product Type Ball Bearing | ||
Inside Diameter 20 mm | ||
Outside Diameter 42 mm | ||
Race Width 12mm | ||
Cage Material Steel | ||
Static Load Rating 5.1kN | ||
Standards/Approvals RoHS | ||
Bearing Type Single Row Deep Groove | ||
- COO (Country of Origin):
- CN

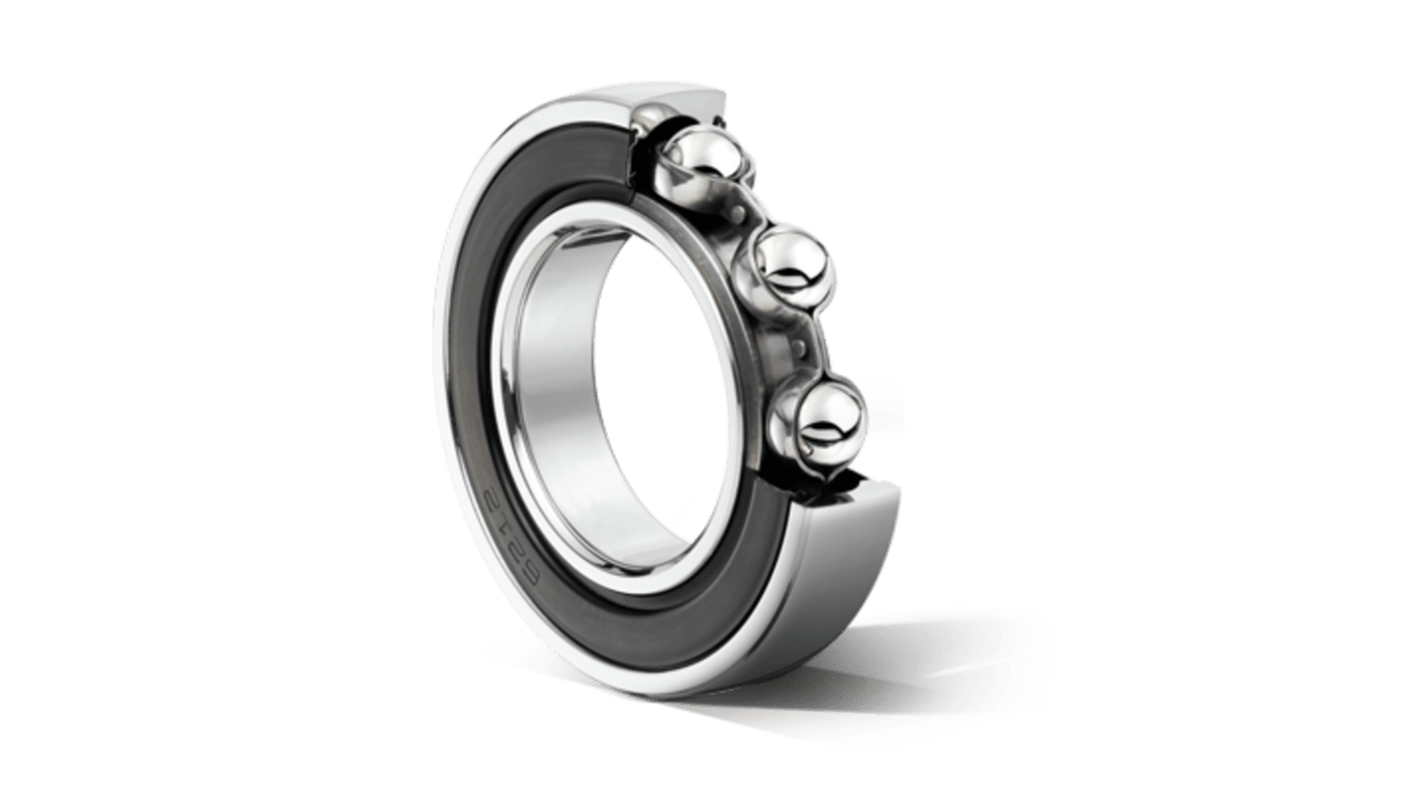

The SNR Single Row Deep Groove Ball Bearings provide excellent performance, featuring a dynamic load rating of 9.9 kN and a static load rating of 5.1 kN. With a fatigue limit load of 0.23 kN and a coefficient of 13.9, they ensure efficient operation under varying conditions. Capable of achieving a mechanical limit speed of 11,000 rpm, these bearings are well-suited for high-speed applications.
3.593 Hz Characteristic outer ring frequency
5.407 Hz Characteristic inner ring frequency
0.399 Hz Characteristic cage frequency
4.759 Hz Characteristic rolling element frequency
