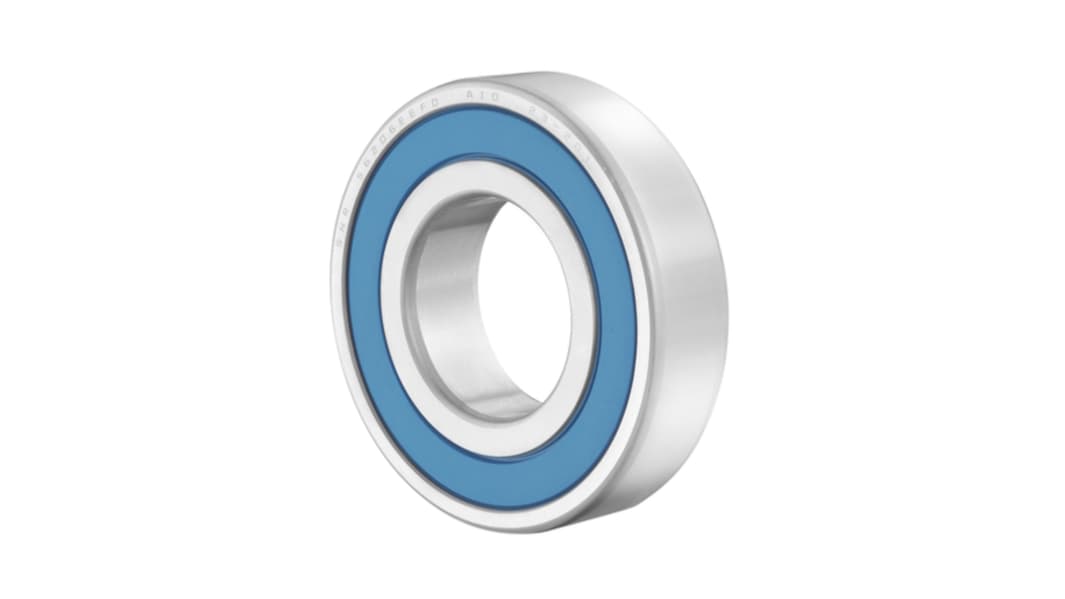

SNR S6004EEFD Ball Bearing - 20 mm ID, 42 mm OD
- RS Stock No.:
- 146-001
- Mfr. Part No.:
- S6004EEFD
- Brand:
- SNR
Subtotal (1 unit)*
£31.49
(exc. VAT)
£37.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £31.49 |
*price indicative
- RS Stock No.:
- 146-001
- Mfr. Part No.:
- S6004EEFD
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Product Type | Ball Bearing | |
| Inside Diameter | 20 mm | |
| Outside Diameter | 42 mm | |
| Race Width | 12mm | |
| Ball Material | Stainless Steel | |
| Cage Material | Stainless Steel | |
| Static Load Rating | 5kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 7.2kN | |
| Standards/Approvals | No | |
| Series | S6004EEFD | |
| Limiting Speed | 11000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Product Type Ball Bearing | ||
Inside Diameter 20 mm | ||
Outside Diameter 42 mm | ||
Race Width 12mm | ||
Ball Material Stainless Steel | ||
Cage Material Stainless Steel | ||
Static Load Rating 5kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 7.2kN | ||
Standards/Approvals No | ||
Series S6004EEFD | ||
Limiting Speed 11000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- CN
The SNR Single row deep groove ball bearing is the most popular bearing. This single row deep groove ball bearings are constructed from stainless steel and feature a pressed stainless steel cage, ensuring enhanced durability and resistance to corrosion.
Seals with stainless steel frame on both sides
Food grease lubrication
