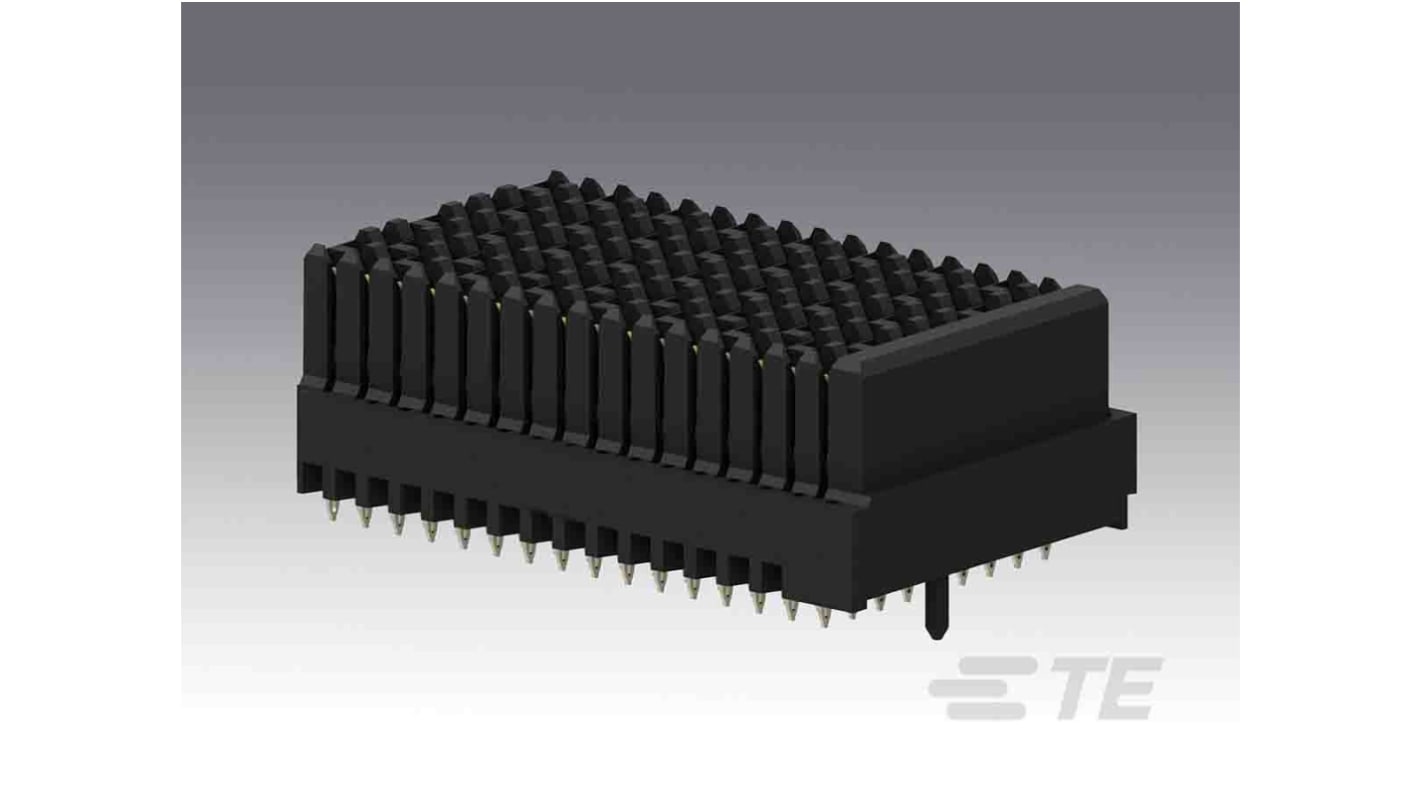

TE Connectivity, MULTIGIG RT 2-R 1.8mm Pitch High Speed Backplane Connector, Female, Vertical, 16 Column, 9 Row, 144
- RS Stock No.:
- 196-3527
- Mfr. Part No.:
- 2102737-1
- Brand:
- TE Connectivity
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£42.67
(exc. VAT)
£51.20
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £42.67 |
| 5 - 9 | £41.30 |
| 10 + | £40.66 |
- RS Stock No.:
- 196-3527
- Mfr. Part No.:
- 2102737-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- US
Product Details
TE’s MULTIGIG RT 2-R ruggedized, light weight, high speed board-to-board interconnect features the modularity and flexibility of the MULTIGIG RT 2 connector, with a new quad-redundant contact structure designed for high vibration levels.
Quad-redundant contact system supports high levels of shock/vibration
Supports Ethernet, Fibre Channel, InfiniBand applications, PCIe and Serial RapidIO high speed protocols
Modular, lightweight connector system
Robust “pinless” interface
Differential, single-ended and power
Ruggedized guide hardware available
Supports 0.8 inch card slot pitches
Can be combined with high power modules (VITA 62), RF modules (VITA 67) and Optical modules (VITA 66)
Applications
Ground Defense
Missile Defense
Electronic Systems / C4ISR
Space
Commercial and Military Aerospace
Supports Ethernet, Fibre Channel, InfiniBand applications, PCIe and Serial RapidIO high speed protocols
Modular, lightweight connector system
Robust “pinless” interface
Differential, single-ended and power
Ruggedized guide hardware available
Supports 0.8 inch card slot pitches
Can be combined with high power modules (VITA 62), RF modules (VITA 67) and Optical modules (VITA 66)
Applications
Ground Defense
Missile Defense
Electronic Systems / C4ISR
Space
Commercial and Military Aerospace
Specifications
sdjkfsjkd | Value |
|---|---|
| Backplane Connector Type | High Speed |
| Gender | Female |
| Number of Contacts | 144 |
| Number of Columns | 16 |
| Number of Rows | 9 |
| Body Orientation | Vertical |
| Housing Material | LCP |
| Pitch | 1.8mm |
| Mounting Type | Board Mount |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated, Tin |
| Current Rating | 1.5A |
| Termination Method | Solder |
| Series | MULTIGIG RT 2-R |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Series Number | 2102737 |
