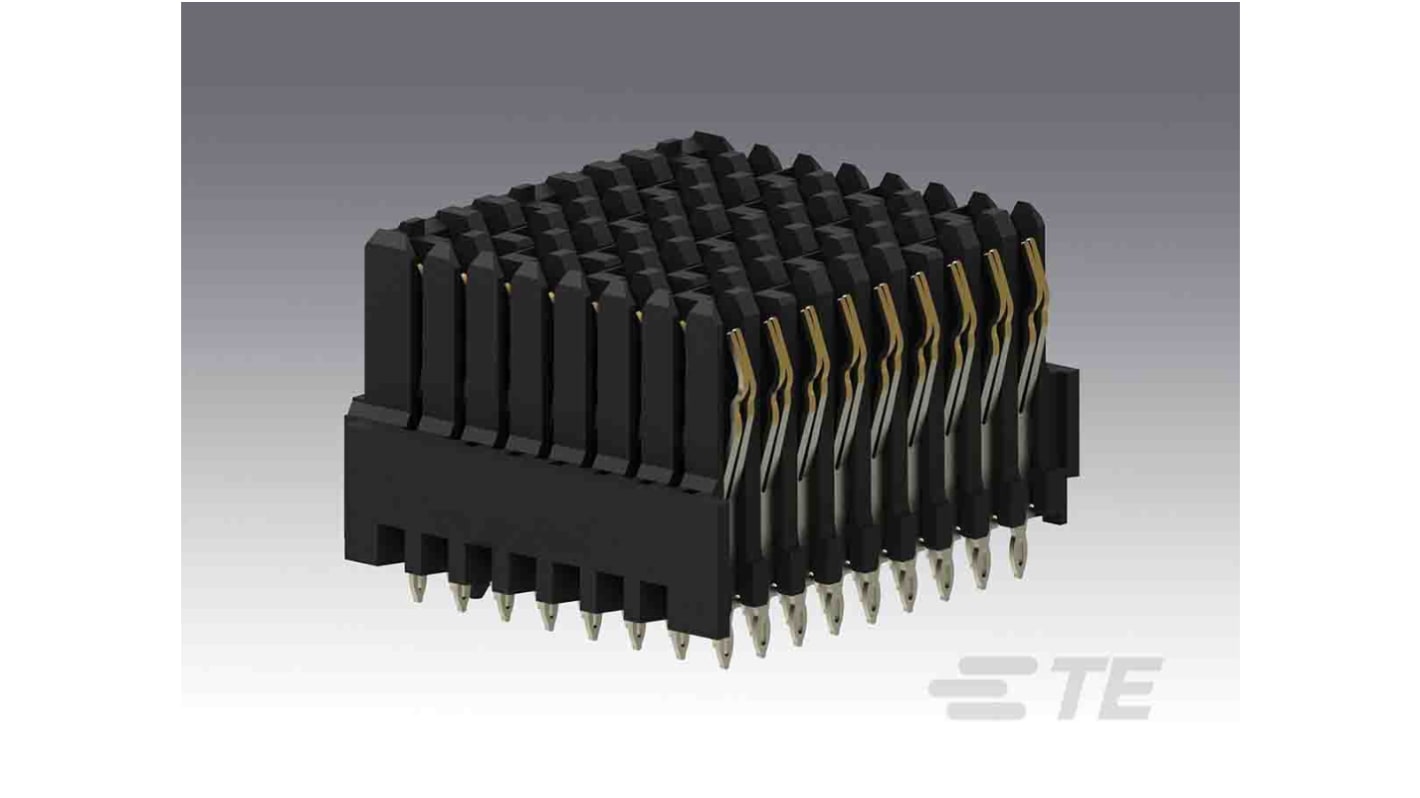

TE Connectivity, 2102735 1.8 mm Pitch High Speed Backplane Connector, Vertical Female, 8 Column, 9 Row, 72 Way
- RS Stock No.:
- 196-3523
- Mfr. Part No.:
- 2102735-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£36.77
(exc. VAT)
£44.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £36.77 |
| 5 - 9 | £35.61 |
| 10 - 19 | £33.92 |
| 20 + | £33.41 |
*price indicative
- RS Stock No.:
- 196-3523
- Mfr. Part No.:
- 2102735-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Backplane Connector Type | High Speed | |
| Product Type | Backplane Connector | |
| Number of Contacts | 72 | |
| Current | 1.5A | |
| Number of Columns | 8 | |
| Orientation | Vertical | |
| Number of Rows | 9 | |
| Connector Gender | Female | |
| Housing Material | Liquid Crystal Polymer | |
| Pitch | 1.8mm | |
| Mount Type | Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold Plated, Tin | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Series | 2102735 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Backplane Connector Type High Speed | ||
Product Type Backplane Connector | ||
Number of Contacts 72 | ||
Current 1.5A | ||
Number of Columns 8 | ||
Orientation Vertical | ||
Number of Rows 9 | ||
Connector Gender Female | ||
Housing Material Liquid Crystal Polymer | ||
Pitch 1.8mm | ||
Mount Type Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold Plated, Tin | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Series 2102735 | ||
Non Compliant
- COO (Country of Origin):
- US
TE’s MULTIGIG RT 2-R ruggedized, light weight, high speed board-to-board interconnect features the modularity and flexibility of the MULTIGIG RT 2 connector, with a new quad-redundant contact structure designed for high vibration levels.
Quad-redundant contact system supports high levels of shock/vibration
Supports Ethernet, Fibre Channel, InfiniBand applications, PCIe and Serial RapidIO high speed protocols
Modular, lightweight connector system
Robust “pinless” interface
Differential, single-ended and power
Ruggedized guide hardware available
Supports 0.8 inch card slot pitches
Can be combined with high power modules (VITA 62), RF modules (VITA 67) and Optical modules (VITA 66)
Applications
Ground Defense
Missile Defense
Electronic Systems / C4ISR
Space
Commercial and Military Aerospace
