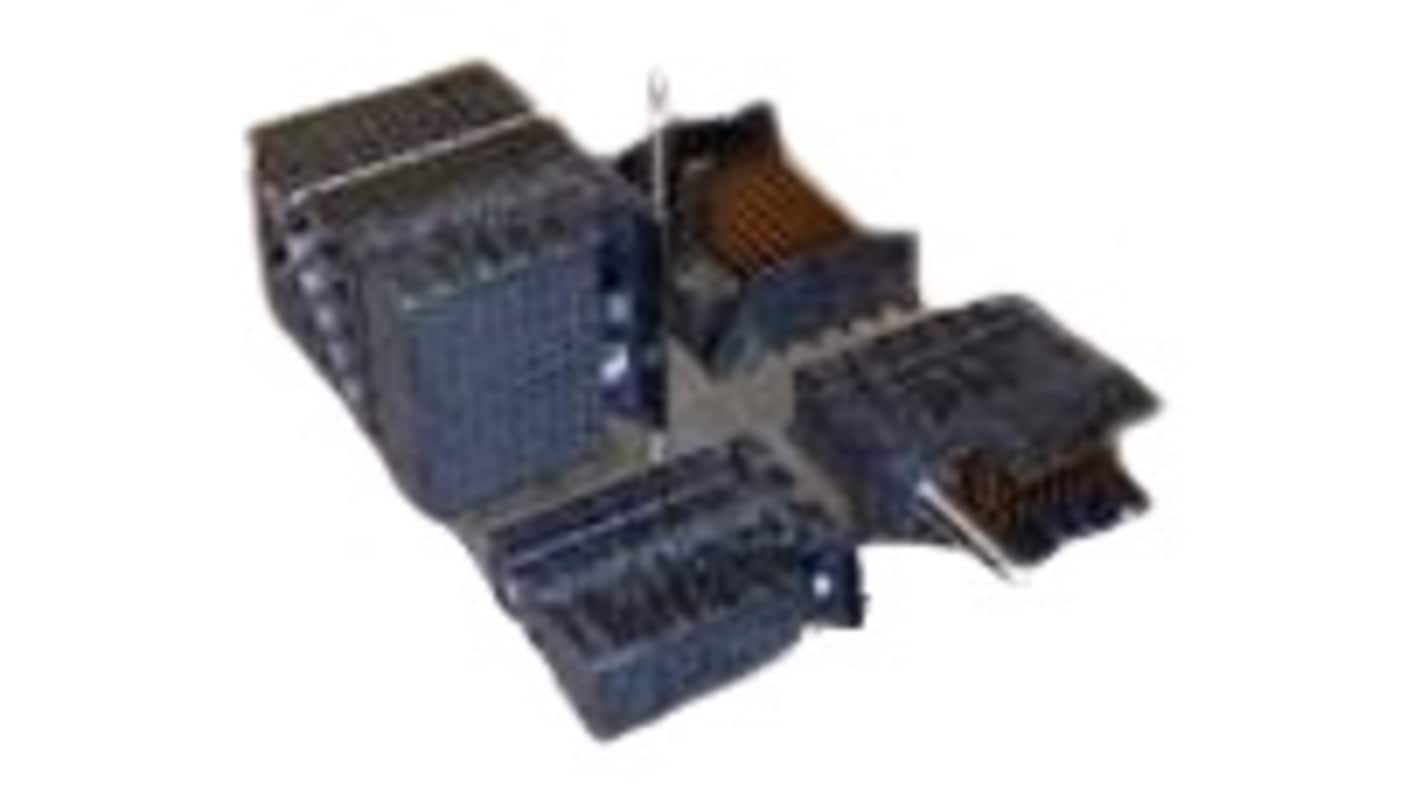

TE Connectivity, 2057689-1 1.9 mm Pitch High Speed Backplane Connector, Right Angle Female, 8 Column, 9 Row, 72 Way

View all Backplane Connectors

Subtotal (1 tube of 20 units)*

£164.08

(exc. VAT)

£196.90

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 +£164.08£8.204

*price indicative

RS Stock No.:
504-935
Distrelec Article No.:
304-49-607
Mfr. Part No.:
2057689-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Backplane Connector Type

High Speed

Product Type

Backplane Connector

Number of Contacts

72

Current

0.75A

Number of Columns

8

Orientation

Right Angle

Voltage

30 V

Connector Gender

Female

Number of Rows

9

Housing Material

Liquid Crystal Polymer

Pitch

1.9mm

Contact Material

Copper Alloy

Mount Type

PCB

Contact Plating

Gold

Minimum Operating Temperature

-55°C

Termination Type

Solder

Maximum Operating Temperature

85°C

Contact Gender

Female

Standards/Approvals

No

Series

2057689-1

COO (Country of Origin):
CN
The TE Connectivity 72 Position High Speed Backplane Connector is designed to meet the demands of modern circuit applications. This connector features a robust 9-row, 8-column configuration, ensuring optimal performance for high-speed data transmission. With its right angle PCB mount receptacle, this unshrouded connector is particularly suited for space-constrained environments. Its liquid crystal polymer housing offers durability while maintaining a compact profile. Engineered for effective signal arrangement, it supports differential signal transmission, making it an ideal choice for intricate circuit designs. The product holds the potential to streamline connectivity in various applications, upholding reliability under stringent operational conditions.

Differential signal arrangement enhances data integrity

Right angle orientation allows for efficient board layout

Constructed from high-quality liquid crystal polymer for durability

Unshrouded design facilitates easier mating in tight spaces

Plating options include gold and tin for improved conductivity

Compliant tail and screw type retention ensure stable mounting

Supports a substantial operating temperature range for versatile applications

Designed for reliable performance with a data rate of 25 Gb/s

Features integrated mating alignment for accurate connection setup
