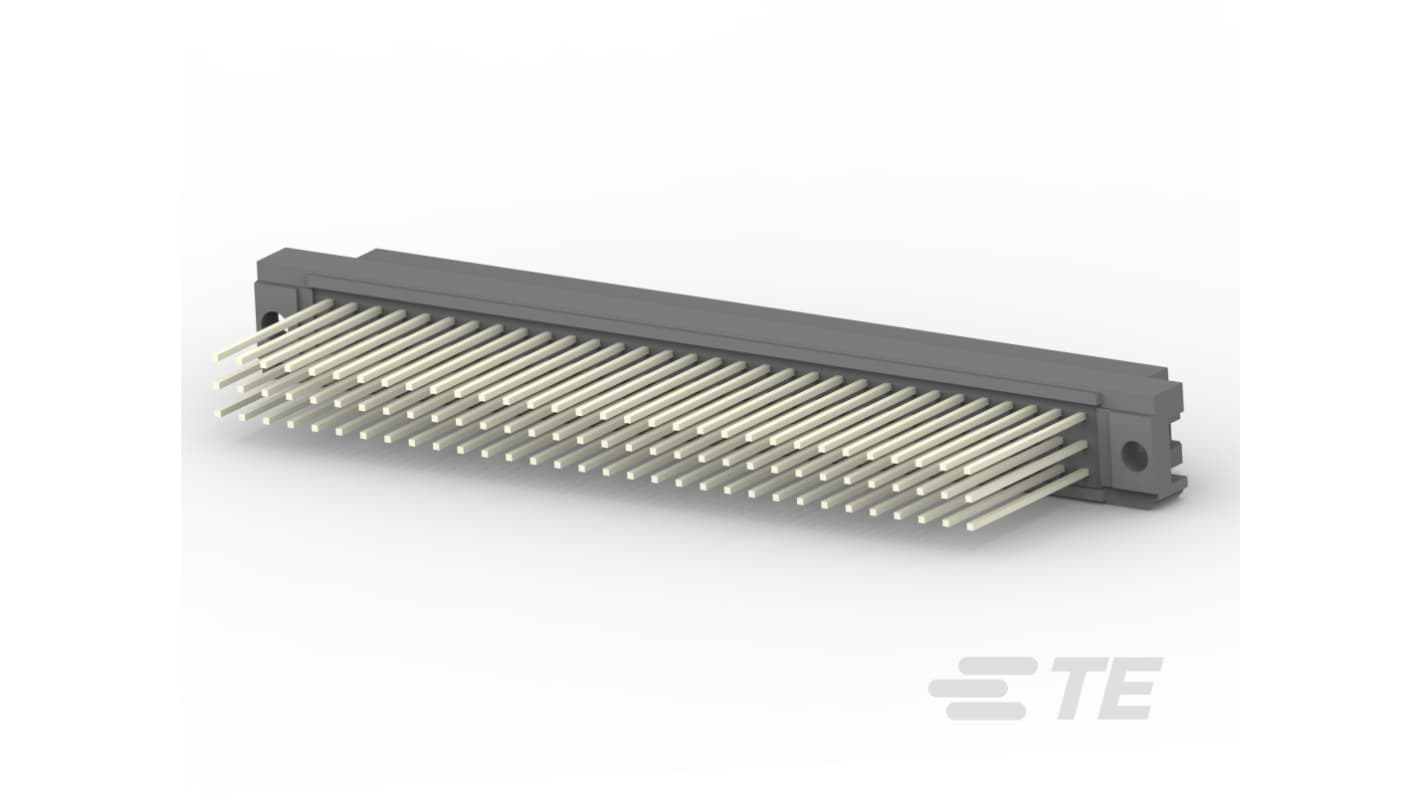

TE Connectivity, 148059 2.54 mm Pitch Connector Backplane Connector, Vertical, Vertical Male, 32 Column, 3 Row, 96 Way

View all Backplane Connectors
Unavailable
RS will no longer stock this product.
RS Stock No.:
471-492
Mfr. Part No.:
1-148059-5
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

Backplane Connector

Backplane Connector Type

Connector

Current

1.5A

Number of Contacts

96

Number of Columns

32

Orientation

Vertical, Vertical

Number of Rows

3

Connector Gender

Male

Pitch

2.54mm

Mount Type

PCB

Termination Type

Solder Pin

Minimum Operating Temperature

-55°C

Contact Gender

Male

Maximum Operating Temperature

125°C

Standards/Approvals

DIN 41612, IEC 60603-2

Series

148059

COO (Country of Origin):
CN
The TE Connectivity Receptacle is designed for seamless board-to-board connectivity, offering a robust solution for high-density applications. With a configuration that supports 96 positions across three rows, this connector is perfect for versatile PCB layouts. Its 2.54 mm centreline ensures compatibility with a wide range of circuit board designs, making it an ideal choice for modern electronic systems. Constructed from durable polyester, the connector is engineered to withstand harsh environments, providing reliable performance over a broad operating temperature range. The design incorporates features for easy installation and secure mating alignment, ensuring efficient and hassle-free assembly.

Built for vertical mounting to save space on PCBs

Utilises a three row 32 column layout for enhanced connectivity

Supports through hole press fit termination for robust attachment

Allows for effective signal transmission in demanding applications

Incorporates mating retention to prevent disconnection during operation

Designed with a PCB thickness compatibility for standard circuit boards

Features a grey body colour for easy identification within assemblies

Constructed with tin lead plated contacts for optimal conductivity

Meets industry standards for flammability to ensure safety
