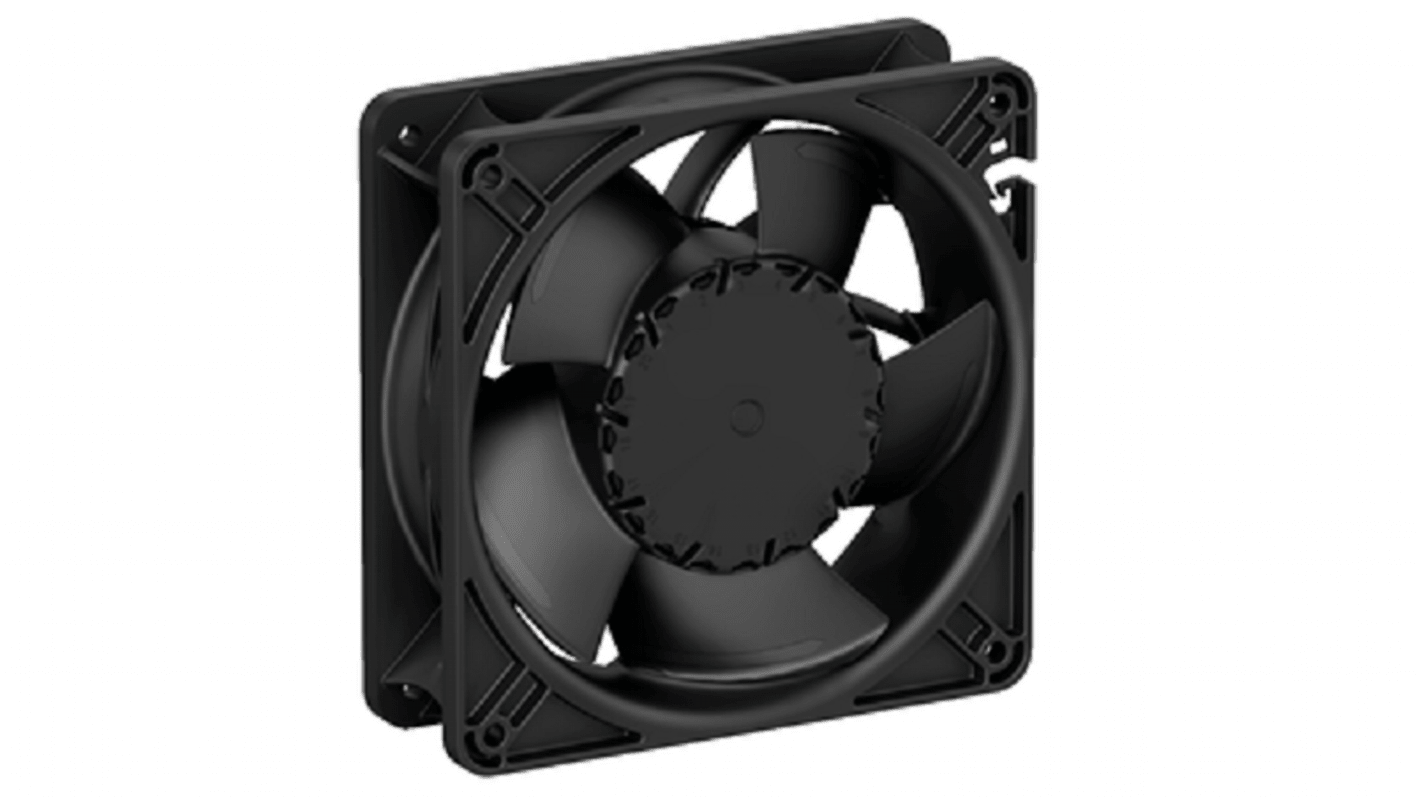

ebm-papst AxiForce 80 Series Axial Fan, 12V dc, 345 m³/h, 30 W, 2.58 A Max 120 mm 120mm 38 mm
- RS Stock No.:
- 238-8846
- Distrelec Article No.:
- 302-20-611
- Mfr. Part No.:
- AF120-00143 12V P/2 6.500
- Brand:
- ebm-papst
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£71.26
(exc. VAT)
£85.51
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £71.26 |
| 10 - 24 | £69.83 |
| 25 - 49 | £66.98 |
| 50 + | £60.57 |
*price indicative
- RS Stock No.:
- 238-8846
- Distrelec Article No.:
- 302-20-611
- Mfr. Part No.:
- AF120-00143 12V P/2 6.500
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Axial Fan | |
| Supply Voltage | 12V dc | |
| Power Consumption | 30W | |
| Maximum Current | 2.58A | |
| Air Flow | 345m³/h | |
| Noise Level | 5dB | |
| External Depth | 38mm | |
| Bearing Type | Ball | |
| Depth | 38mm | |
| Height | 120mm | |
| Standards/Approvals | No | |
| Width | 120mm | |
| Series | AxiForce 80 | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Axial Fan | ||
Supply Voltage 12V dc | ||
Power Consumption 30W | ||
Maximum Current 2.58A | ||
Air Flow 345m³/h | ||
Noise Level 5dB | ||
External Depth 38mm | ||
Bearing Type Ball | ||
Depth 38mm | ||
Height 120mm | ||
Standards/Approvals No | ||
Width 120mm | ||
Series AxiForce 80 | ||
The ebm-papst DC axial fan is a direct-current drive operated general fan motor with developed geometry and provides smooth rotation using three phase motor concept which generates less extra heat in the rotor and stator.
Air flow direction exhaust over struts
Rotational direction counter clockwise, looking towards rotor
Material housing medium power plastic (PBT), high power Aluminium
Material impeller plastic (PA)
PWM control input
