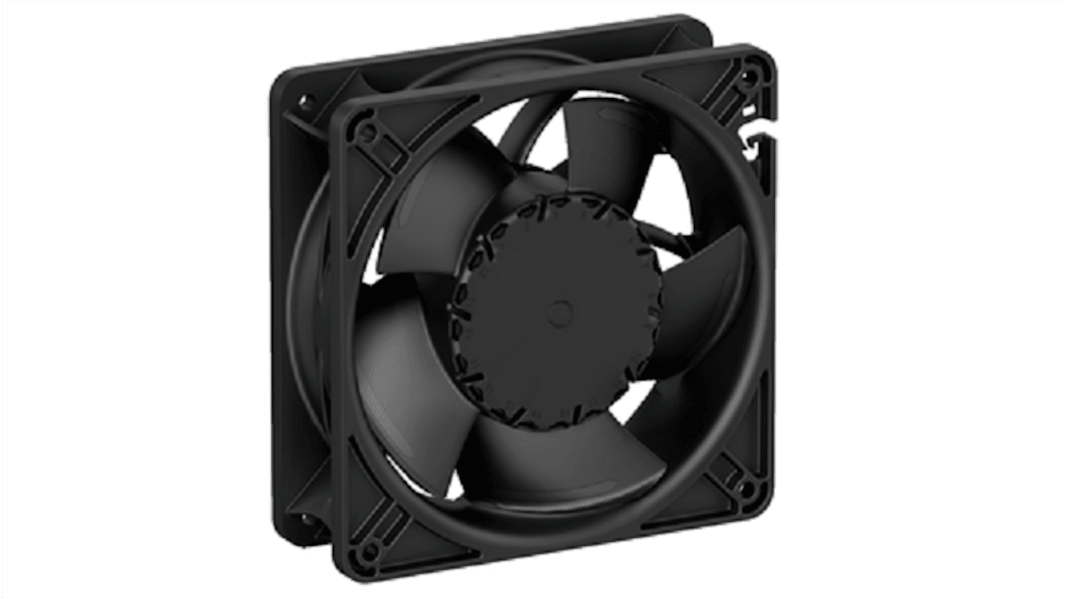

ebm-papst AxiForce 80 Series Axial Fan, 24V dc, 340 m³/h, 30 W, 1.25 A Max 120 mm 120mm 38 mm
- RS Stock No.:
- 238-8845
- Distrelec Article No.:
- 302-20-610
- Mfr. Part No.:
- AF120-00142 24V P/2 6.500
- Brand:
- ebm-papst
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£71.14
(exc. VAT)
£85.37
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
- Plus 36 unit(s) shipping from 10 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £71.14 |
| 10 - 24 | £69.72 |
| 25 - 49 | £66.88 |
| 50 + | £60.47 |
*price indicative
- RS Stock No.:
- 238-8845
- Distrelec Article No.:
- 302-20-610
- Mfr. Part No.:
- AF120-00142 24V P/2 6.500
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Axial Fan | |
| Supply Voltage | 24V dc | |
| Power Consumption | 30W | |
| Maximum Current | 1.25A | |
| Air Flow | 340m³/h | |
| Noise Level | 5dB | |
| External Depth | 38mm | |
| Bearing Type | Ball | |
| Series | AxiForce 80 | |
| Width | 120mm | |
| Standards/Approvals | CSA, UL, VDE, CE, EAC | |
| Depth | 38mm | |
| Height | 120mm | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Axial Fan | ||
Supply Voltage 24V dc | ||
Power Consumption 30W | ||
Maximum Current 1.25A | ||
Air Flow 340m³/h | ||
Noise Level 5dB | ||
External Depth 38mm | ||
Bearing Type Ball | ||
Series AxiForce 80 | ||
Width 120mm | ||
Standards/Approvals CSA, UL, VDE, CE, EAC | ||
Depth 38mm | ||
Height 120mm | ||
- COO (Country of Origin):
- HU
The ebm-papst DC axial fan is a direct-current drive operated general fan motor with developed geometry and provides smooth rotation using three phase motor concept which generates less extra heat in the rotor and stator.
Air flow direction exhaust over struts
Rotational direction counter clockwise, looking towards rotor
Material housing medium power plastic (PBT), high power Aluminium
Material impeller plastic (PA)
PWM control input
