ebm-papst Axial Fan, 200 → 240 V ac, ac Operation, 1805m³/h, 165W, 1.35A Max, IP54, 422 x 132.3mm
- RS Stock No.:
- 646-765
- Mfr. Part No.:
- S3G350AN0130
- Brand:
- ebm-papst
Subtotal (1 unit)*
£933.52
(exc. VAT)
£1,120.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 12 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £933.52 |
*price indicative
- RS Stock No.:
- 646-765
- Mfr. Part No.:
- S3G350AN0130
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ebm-papst | |
Supply Voltage | 200 → 240 V ac | |
AC or DC Operation | ac | |
Height | 422mm | |
Power Consumption | 165W | |
Maximum Current | 1.35A | |
Depth | 132.3mm | |
Air Flow | 1805m³/h | |
Dimensions | 422 x 132.3mm | |
IP Rating | IP54 | |
Select all | ||
---|---|---|
Brand ebm-papst | ||
Supply Voltage 200 → 240 V ac | ||
AC or DC Operation ac | ||
Height 422mm | ||
Power Consumption 165W | ||
Maximum Current 1.35A | ||
Depth 132.3mm | ||
Air Flow 1805m³/h | ||
Dimensions 422 x 132.3mm | ||
IP Rating IP54 | ||
- COO (Country of Origin):
- SI

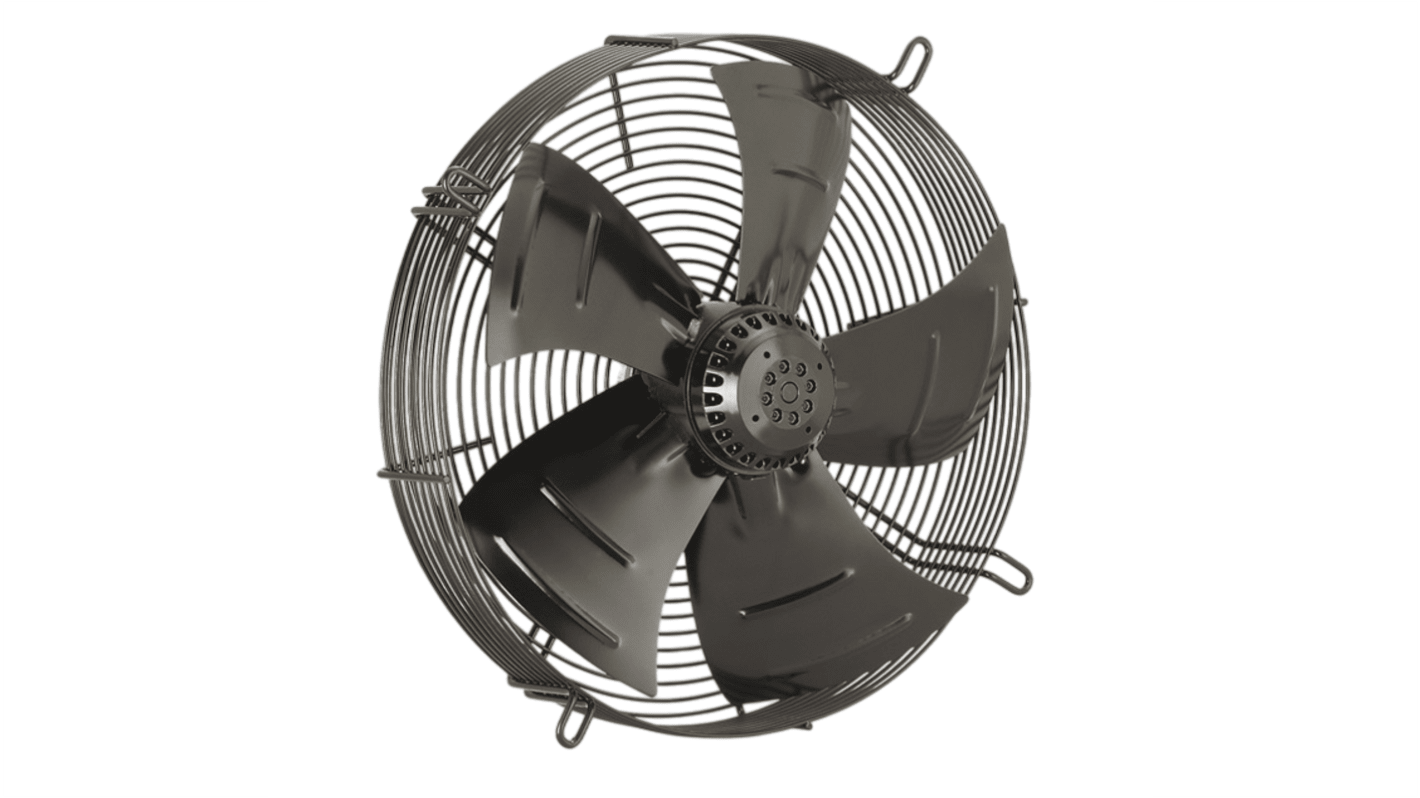

The ebm-papst EC axial panel fan with HyBlade sickle-shaped blades is equipped with a guard grille for short nozzle applications. It rotates counter clockwise when viewed toward the rotor and offers IP54 protection. Built with insulation class B and H1 moisture and environmental protection class, it supports a maximum ambient motor temperature of +80°C and a minimum of -40°C during transport or storage. The fan allows for installation in any position and features a cooling opening on the rotor side. It operates in continuous duty mode S1 and has no condensation drainage holes due to its open rotor design.
Blade material is press-fitted sheet steel blank and sprayed with polypropylene plastic
Guard grille material is steel and coated with black plastic in accordance with RAL 9005
Number of blades is five
Airflow direction is vertical
Guard grille material is steel and coated with black plastic in accordance with RAL 9005
Number of blades is five
Airflow direction is vertical
