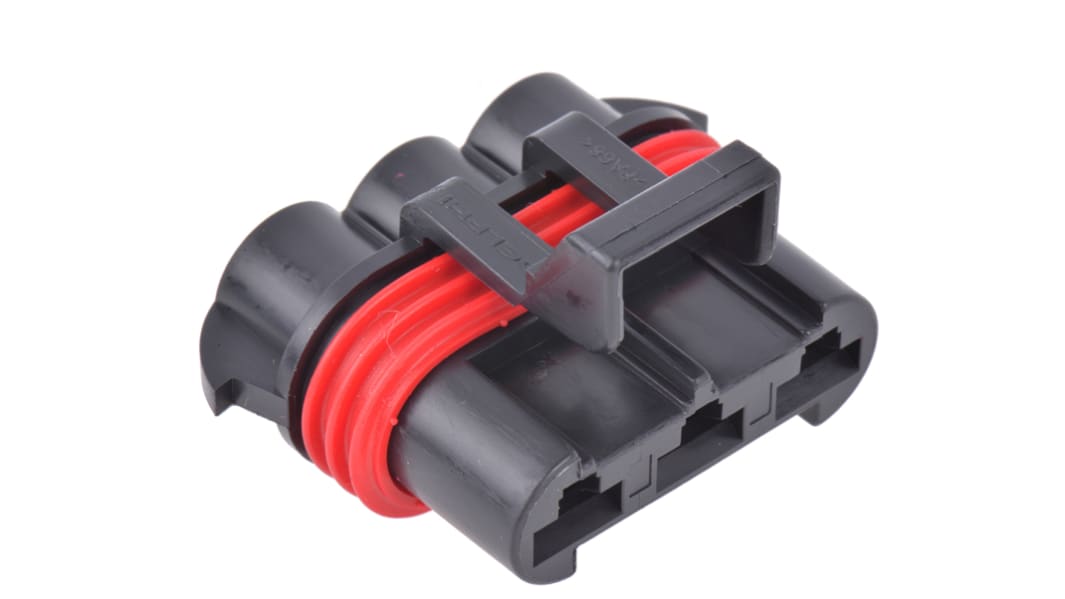

Delphi, Metri-Pack 630 Automotive Connector Socket Black Cable Mount 3 Way, Crimp Termination 12124685
- RS Stock No.:
- 896-1899
- Mfr. Part No.:
- 12124685
- Brand:
- Delphi
Save 17% when you buy 500 units
Subtotal (1 pack of 10 units)*
£11.65
(exc. VAT)
£13.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 90 unit(s) ready to ship
- Plus 40 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £1.165 | £11.65 |
| 100 - 490 | £1.061 | £10.61 |
| 500 + | £0.957 | £9.57 |
*price indicative
- RS Stock No.:
- 896-1899
- Mfr. Part No.:
- 12124685
- Brand:
- Delphi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Delphi | |
| Type | Automotive Connector | |
| Number of Contacts | 3 | |
| Gender | Female | |
| Number of Rows | 1 | |
| Current Rating | 46A | |
| Mounting Type | Cable Mount | |
| Series | Metri-Pack 630 | |
| Colour | Black | |
| Termination Method | Crimp | |
| Height | 27.4mm | |
| Width | 44.6mm | |
| Depth | 31mm | |
| Housing Material | PBT | |
| Contact Plating | Tin | |
| Contact Material | Tin Brass | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Delphi | ||
Type Automotive Connector | ||
Number of Contacts 3 | ||
Gender Female | ||
Number of Rows 1 | ||
Current Rating 46A | ||
Mounting Type Cable Mount | ||
Series Metri-Pack 630 | ||
Colour Black | ||
Termination Method Crimp | ||
Height 27.4mm | ||
Width 44.6mm | ||
Depth 31mm | ||
Housing Material PBT | ||
Contact Plating Tin | ||
Contact Material Tin Brass | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Delphi Metri-Pack 630 Sealed Female Automotive Connectors
From Delphi, a range of robust female housings from the Metri-Pack 630 series. These automotive connectors are designed to exceed requirements for marine, appliance and industrial control applications. Made from a tough PBT housing material, these connectors have an excellent resistance to temperature, chemicals and abrasion. The automotive connector housings can accommodate a cable range of 0.50 – 5.0 mm2 cable and utilise contacts with a 6.3mm blade width.
Contacts and cable seals must be purchased separately. Typical part number 896-1802 for terminals and 896-1925 cable seals.
Contacts and cable seals must be purchased separately. Typical part number 896-1802 for terminals and 896-1925 cable seals.
Delphi Metri-Pack 630 Series Automotive Connectors
