- RS Stock No.:
- 195-5937
- Mfr. Part No.:
- ATHD04-1-4P-L009
- Brand:
- Amphenol Industrial
Available to back order for despatch 12/08/2024
Added
Price Each
£7.01
(exc. VAT)
£8.41
(inc. VAT)
Units | Per unit |
1 - 9 | £7.01 |
10 - 24 | £6.39 |
25 + | £5.73 |
- RS Stock No.:
- 195-5937
- Mfr. Part No.:
- ATHD04-1-4P-L009
- Brand:
- Amphenol Industrial
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Our ATHD Series™ Single-Pole Power Connectors provide an environmentally sealed connection system and viable solution to field splices and terminals in harsh environments. Safety features include an integral latch to prevent inadvertent disconnect and an audible click, tactile feel provide circuit confirmation. Precision machined contact technology maximizes performance and durability while delivering 100A of power. The rugged circular housings can be used as an in-line or easy to install sealed flange mount connection system for heavy-duty applications.
Intermatable with industry standard connectors
Single-Pole Arrangement
Machined Contact Size #4 (Wire Size 6AWG)
Circular, Thermoplastic Housing
In-line (Wire-to-Wire) or Flange Mount Capability
Integral Latch Prevents Inadvertent Disconnect
Applications
Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural
Single-Pole Arrangement
Machined Contact Size #4 (Wire Size 6AWG)
Circular, Thermoplastic Housing
In-line (Wire-to-Wire) or Flange Mount Capability
Integral Latch Prevents Inadvertent Disconnect
Applications
Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural

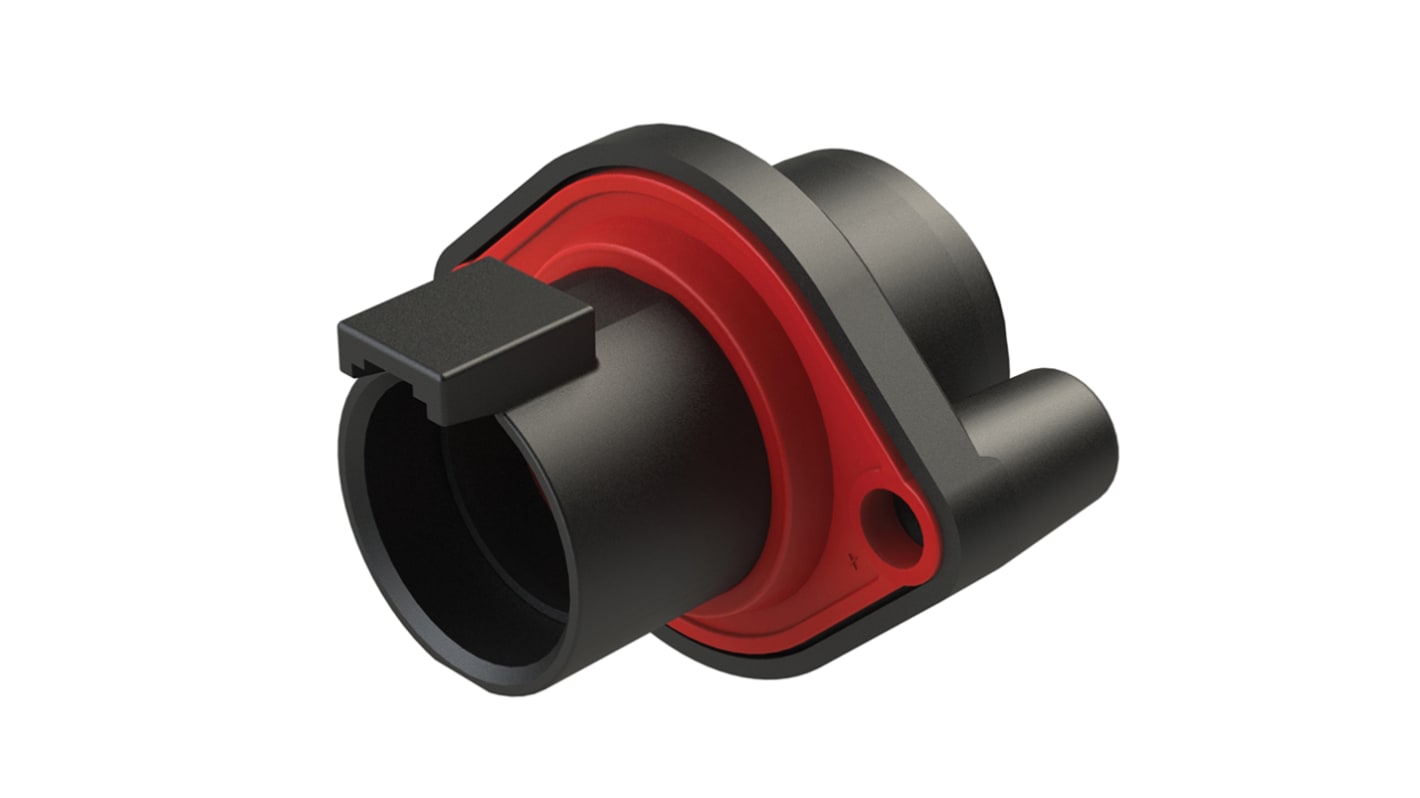

1 Position Receptacle, Flange Mount 100A / 1000V, Pin, environmentally sealed
Specifications
Attribute | Value |
---|---|
Number of Contacts | 1 |
Type | Automotive Connector |
Gender | Male |
Number of Rows | 1 |
Current Rating | 100A |
Mounting Type | Flange Mount |
Series | AT |
Colour | Black |
IP Rating | IP67, IP69K |
Height | 43.3mm |
Width | 57.3mm |
Depth | 52.5mm |
Housing Material | Thermoplastic |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +125°C |
Series Number | ATHD04 |
