RS PRO 2 Core, 0.25 mm² CSA Screened, 3.5mm od, 100m, Blue

View all Audio Cable

Subtotal (1 reel of 100 metres)*

£107.69

(exc. VAT)

£129.23

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£107.69£1.077

*price indicative

RS Stock No.:
214-9604
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Cores

2

Cross Sectional Area

0.25 mm²

Screened/Unscreened

Screened

Insulation Material

XLPE

Outer Diameter

3.5mm

Length

100m

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+70°C

Sheath Colour

Blue

American Wire Gauge

24 AWG

Conductor Resistance

85 Ω/km

Sheath Material

PVC

Core Strands

7/0.2 mm

Conductor Strand Type

Stranded

Shielded/Unshielded

Shielded

Number of Strands

7

Cable Shape

Multicore

Screen Type

Aluminium Foil, Polyester Tape

Capacitance Core To Screen

130pF/m

Capacitance Core To Core

85pF/m

Size of Strands

0.2 mm

Conductor Material

Oxygen Free Copper

COO (Country of Origin):
TW

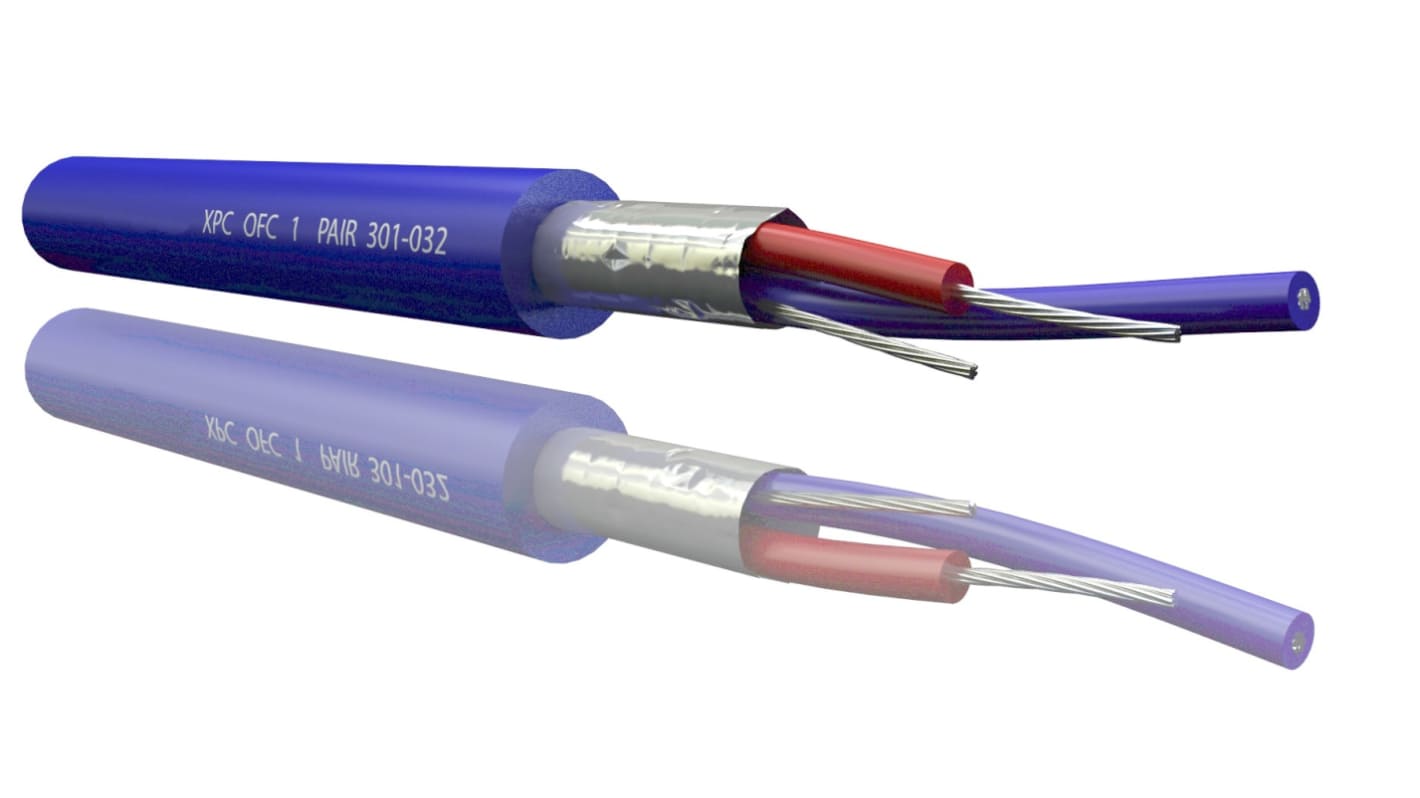

RS PRO Multicore Microphone Cable 100m


RS PRO continues to support sound engineers with the latest high-quality cables, here we are pleased to introduce a two-core screened microphone cable that offers a unique blend of versatility, quality, and strength. The RS PRO multicore microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers, loudspeakers or amplifiers. This shielded multicore cable has a soft flexible PVC jacket and is engineered from pure OFC copper for optimum efficiency due to its durability resistance to shorts and long-life span as it's less likely to corrode than other wires.

Features and Benefits


  • Multicore screened Cable - 2 Core

  • Shielded multicore audio cable

  • Outer diameter 3.5 mm

  • Cross-sectional area 0.25 mm²

  • XLPE insulated

  • 24 AWG

  • Core colours Red and Blue

  • Operating temperature -20°C to +70 °C

  • Conductor resistance 85 Ω

  • Capacitance core to core 85 pF/m

  • Capacitance core to screen 130 pF/m

Applications


High-quality microphone cables are vitally important in audio sound applications. They must be able to relay signals without interference and withstand the twisting and bending commonly associated with live stage and studio setup. The RS PRO multicore microphone cable has all these features and offers XLPE insulation material for flexibility and protection, the ideal solution when creating your own audio, microphone cable assemblies. Multicore cables can be found in industrial and domestic environments such as

Live stages and theatres
Audio & sound system
Professional studio
Touring
Hobbyist and custom audio setups

Why RS PRO?


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
