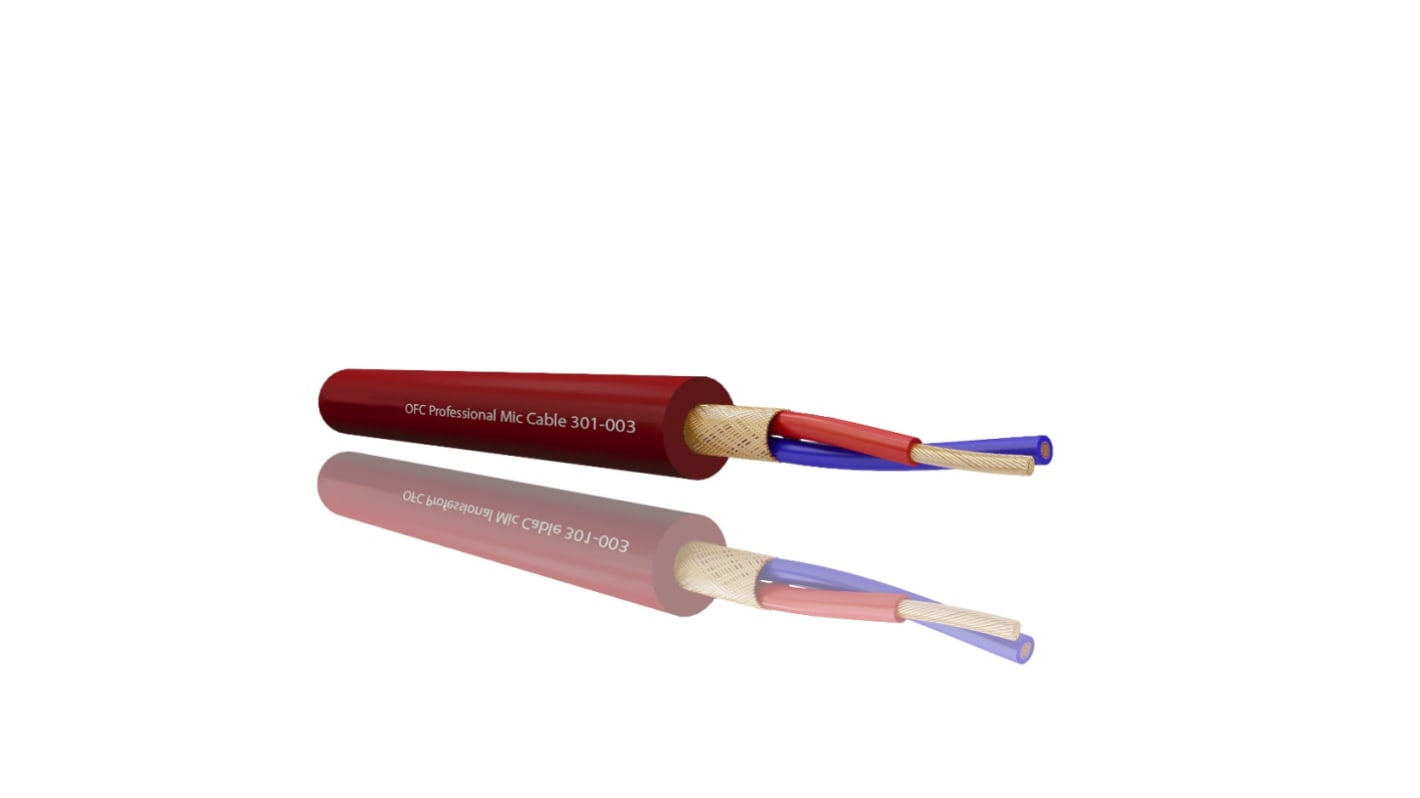

RS PRO 2 Core Microphone, 0.25 mm² CSA Screened, 6.35mm od, 100m, Red
- RS Stock No.:
- 214-9599
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£196.99
(exc. VAT)
£236.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £196.99 | £1.97 |
*price indicative
- RS Stock No.:
- 214-9599
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Audio Cable Type | Microphone | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.25 mm² | |
| Screened/Unscreened | Screened | |
| Insulation Material | XLPE | |
| Outer Diameter | 6.35mm | |
| Length | 100m | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Sheath Colour | Red | |
| American Wire Gauge | 24 AWG | |
| Size of Strands | 0.10 mm | |
| Conductor Material | Oxygen Free Copper | |
| Conductor Resistance | 85 Ω/km | |
| Sheath Material | PVC | |
| Conductor Strand Type | Stranded | |
| Screen Type | Lap | |
| Capacitance Core To Screen | 110pF/m | |
| Capacitance Core To Core | 60pF/m | |
| Shielded/Unshielded | Shielded | |
| Number of Strands | 28 | |
| Cable Shape | Multicore | |
| Core Strands | 28/0.10 mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Audio Cable Type Microphone | ||
Number of Cores 2 | ||
Cross Sectional Area 0.25 mm² | ||
Screened/Unscreened Screened | ||
Insulation Material XLPE | ||
Outer Diameter 6.35mm | ||
Length 100m | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Sheath Colour Red | ||
American Wire Gauge 24 AWG | ||
Size of Strands 0.10 mm | ||
Conductor Material Oxygen Free Copper | ||
Conductor Resistance 85 Ω/km | ||
Sheath Material PVC | ||
Conductor Strand Type Stranded | ||
Screen Type Lap | ||
Capacitance Core To Screen 110pF/m | ||
Capacitance Core To Core 60pF/m | ||
Shielded/Unshielded Shielded | ||
Number of Strands 28 | ||
Cable Shape Multicore | ||
Core Strands 28/0.10 mm | ||
