- RS Stock No.:
- 207-5318
- Brand:
- RS PRO
800 In stock - FREE next working day delivery available
Added
Price Each
£0.939
(exc. VAT)
£1.127
(inc. VAT)
Units | Per unit | Per Reel* |
100 + | £0.939 | £93.90 |
*price indicative |
- RS Stock No.:
- 207-5318
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

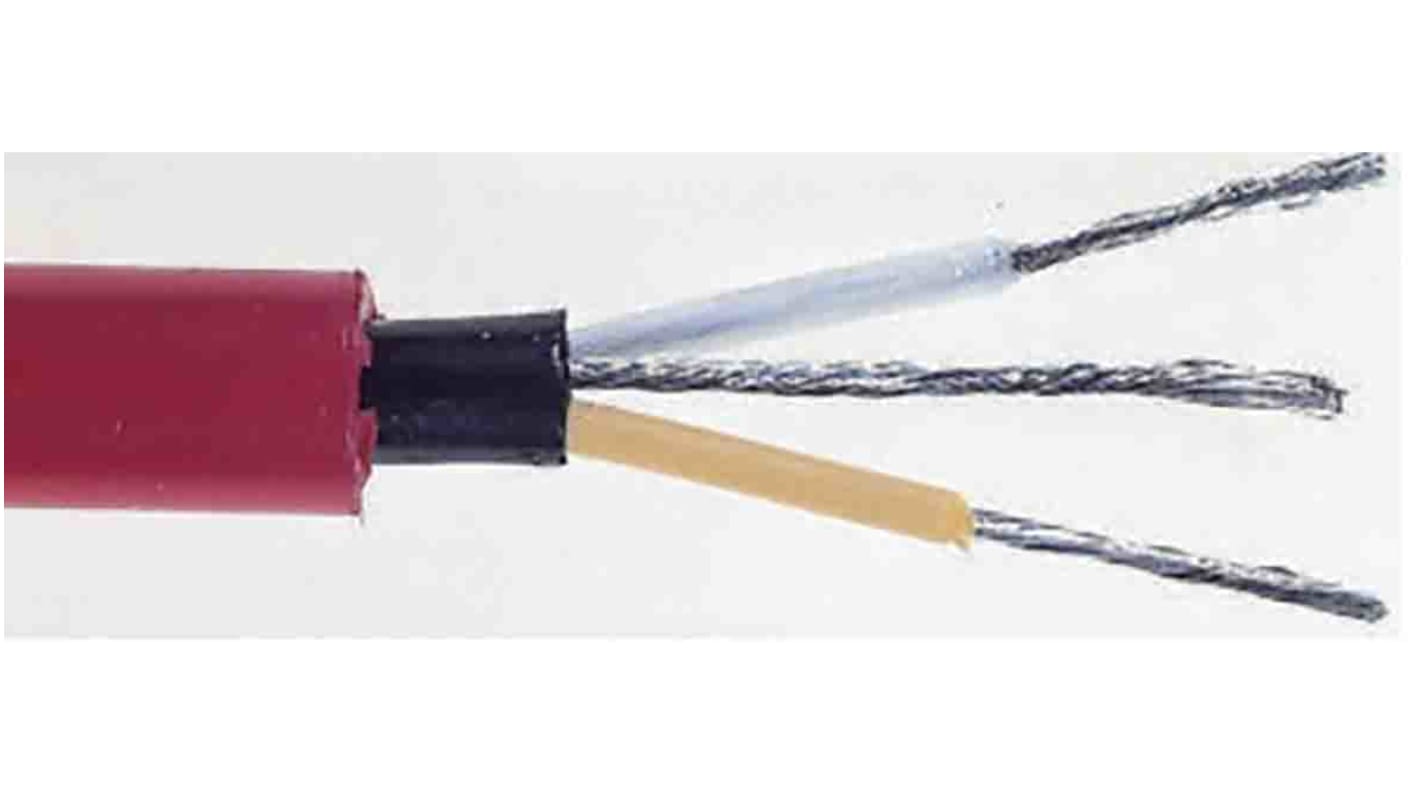

RS PRO 2 Core Screened Multicore Microphone Cable
RS PRO introduces this high quality 2 core lapped screen, flexible cable; designed for use with live and studio microphones but can also be used for equipment interconnect. Intended to fulfil the conflicting requirements of flexibility and screening properties, therefore makes it suitable for free-standing and hand-held microphone applications.
Engineered for a reliable and uninterrupted sound, the audio cable is screened for EMI protection, meaning it has extra protection from interference that could affect sound quality.
The PVC sheath offers an excellent standard of protection and flexibility, this ensures the cable is protected from damage by twisting and bending and impact. Which makes the multicore cable suitable for use in most professional audio applications.
Engineered for a reliable and uninterrupted sound, the audio cable is screened for EMI protection, meaning it has extra protection from interference that could affect sound quality.
The PVC sheath offers an excellent standard of protection and flexibility, this ensures the cable is protected from damage by twisting and bending and impact. Which makes the multicore cable suitable for use in most professional audio applications.
Applications
This multicore cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers or amplifiers.
Multicore cable is suitable for:
Multicore cable is suitable for:
- Live stages and theatres
- Professional studio setups
- Hobbyist and custom audio setups
Features and Benefits
- Audio cable with two cores, screened for EMI protection
- PVC outer sheath which offers protection and flexibility
- PE Semi-Conductive insulation
- Self-extinguishing
- Available in Black and Red Sheath colour
- Voltage rating – 60 V
- 100 m length
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Audio Cable Type | Microphone Cable |
Number of Cores | 2 |
Cross Sectional Area | 0.36 mm² |
Screened/Unscreened | Screened |
Insulation Material | PE |
Outer Diameter | 6.6mm |
Length | 100m |
Minimum Operating Temperature | -20°C |
CPR Certification | Fca |
Maximum Operating Temperature | 80°C |
Fire Behaviour | Self-extinguishing |
Sheath Colour | Red |
Voltage Rating | 60 V |
Conductor Material | Tinned Copper |
Cable Shape | Multicore |
Screen Type | Semi Conductive |
Drain Wire | Yes |
Number of Strands | 32 |
Conductor Resistance | 20°C Ω/km |
Sheath Material | PVC |
