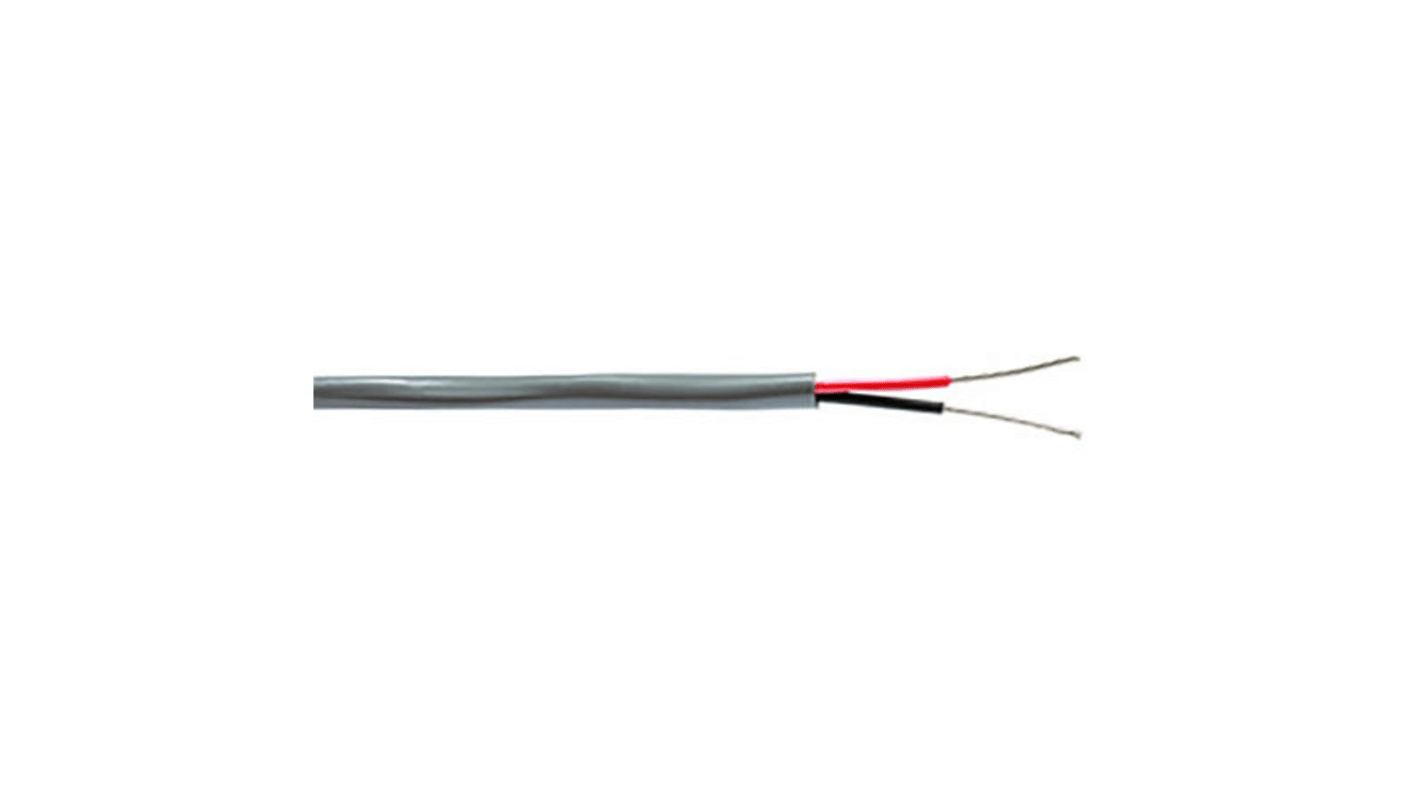

Belden8205 Series 2 Core Line level Low Voltage signal Cable, 0.5 mm² CSA, 4.57mm od, 152m, Chrome

RS Stock No.:: 822-888
Mfr. Part No.:: 8205.00U152
Brand:: Belden

Belden8205 Series 2 Core Line level Low Voltage signal Cable, 0.5 mm² CSA, 4.57mm od, 152m, Chrome

Subtotal (1 reel of 152 metres)*

£256.25

(exc. VAT)

£307.50

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 8 unit(s) shipping from 01 October 2025
Plus 4 unit(s) shipping from 01 October 2025
Plus 4 unit(s) shipping from 23 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£256.25	£1.686

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Belden8205 Series 2 Core, 0.5 mm² CSA, 4.57mm od, 304m, Chrome

RS Stock No.: 822-894

1 Reel of 304 Metre(s)

£514.17

(exc. VAT)

£617.00

(inc. VAT)

RS Stock No.:: 822-888
Mfr. Part No.:: 8205.00U152
Brand:: Belden

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Audio Cable Type	Line level Low Voltage signal Cable
	Number of Cores	2
	Cross Sectional Area	0.5 mm²
	Insulation Material	PVC
	Outer Diameter	4.57mm
	Length	152m
	Minimum Operating Temperature	-20°C
	CPR Certification	Eca
	Maximum Operating Temperature	+60°C
	Sheath Colour	Chrome
	American Wire Gauge	20 AWG
	Core Strands	7/28
	Conductor Strand Type	Stranded
	Cable Shape	Twisted Pair
	Standards Met	UL-1685
	Current Rating	3.7 A
	Sheath Material	Polyvinyl Chloride PVC
	Shielded/Unshielded	Unshielded
	Conductor Resistance	10 Ω/0.34 km
	Number of Strands	7
	Capacitance Core To Core	24.5pF/m
	Size of Strands	28 AWG
	Conductor Material	Tinned Copper
	Series	8205
	Voltage Rating	300 V

	Select all
	Brand Belden
	Audio Cable Type Line level Low Voltage signal Cable
	Number of Cores 2
	Cross Sectional Area 0.5 mm²
	Insulation Material PVC
	Outer Diameter 4.57mm
	Length 152m
	Minimum Operating Temperature -20°C
	CPR Certification Eca
	Maximum Operating Temperature +60°C
	Sheath Colour Chrome
	American Wire Gauge 20 AWG
	Core Strands 7/28
	Conductor Strand Type Stranded
	Cable Shape Twisted Pair
	Standards Met UL-1685
	Current Rating 3.7 A
	Sheath Material Polyvinyl Chloride PVC
	Shielded/Unshielded Unshielded
	Conductor Resistance 10 Ω/0.34 km
	Number of Strands 7
	Capacitance Core To Core 24.5pF/m
	Size of Strands 28 AWG
	Conductor Material Tinned Copper
	Series 8205
	Voltage Rating 300 V

COO (Country of Origin):: NL

Belden Unscreened Two-Core Speaker Cable, 20 AWG, 305m Length - 8205

Use this Belden two-core speaker cable to transmit high-quality signals to audio output devices. It uses highly conductive tinned copper conductors to ensure a reliable connection. The material also offers protection against harmful corrosion and oxidation. With a current rating of 3.7A and a voltage rating of 300V AC (alternating current), this speaker cable is suitable for low voltage applications. It has a low core-to-core capacitance of 24.5pF/ft (picofarad per foot), which means it delivers high signal quality with minimal signal loss. A cable like this is often used in industrial instrumentation and automation applications.

Features & Benefits

• Polyvinyl chloride (PVC) sheath material protects the inner wires from moisture, oil, flames and damage caused by light physical impact and weathering
• Operating temperature range of -20°C to +60°C means it's suitable for use in demanding industrial applications

Applications

• Home cinema systems
• Television broadcasting studios

Does this cable offer protection against electric shocks?

Yes, it does. This speaker cable uses PVC (polyvinyl chloride) insulation that offers reliable protection against electrical hazards, so it's safe for general use.
