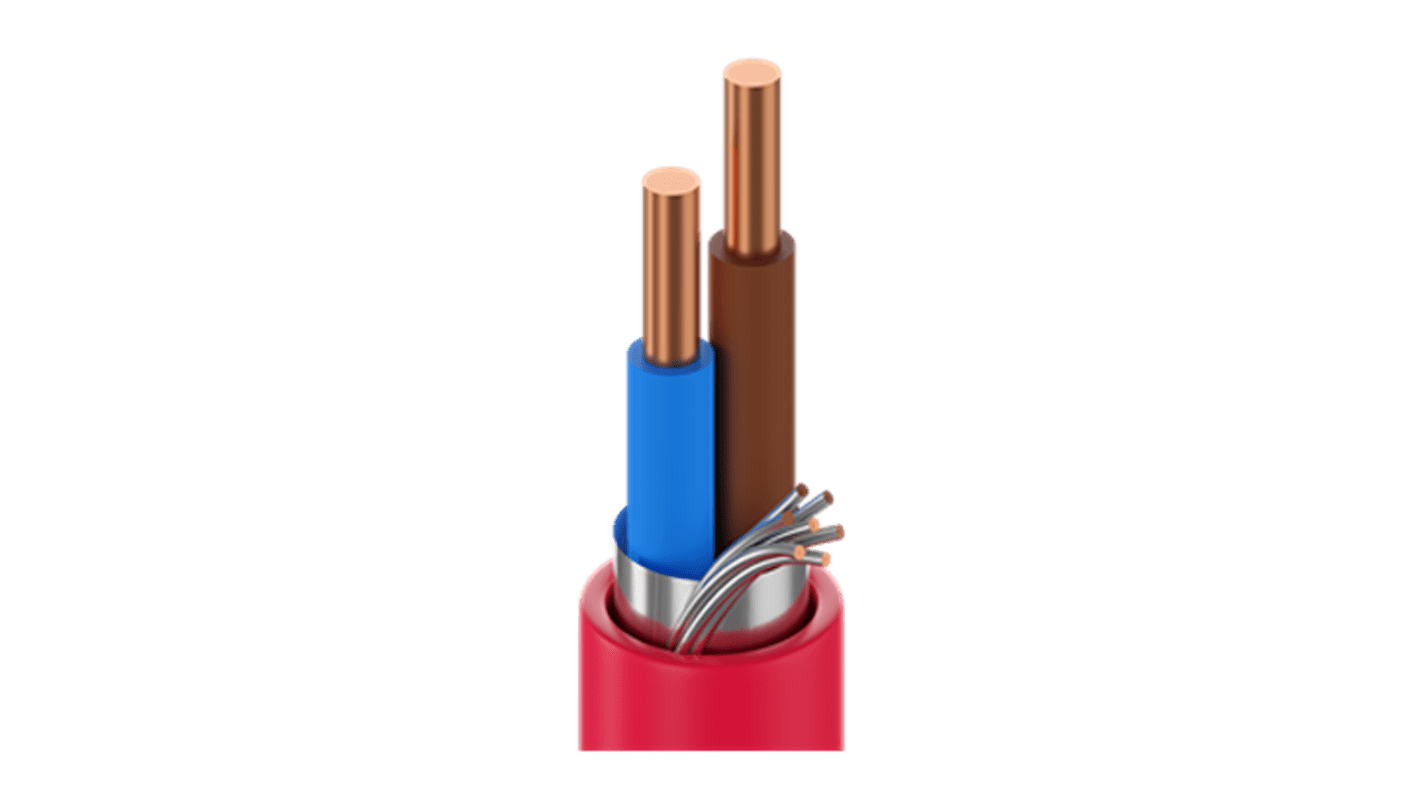

Belden 79001FS Series 2 Core, 1.5 mm² CSA Screened, 7.85 mm OD, 500 m, Red
- RS Stock No.:
- 644-606
- Mfr. Part No.:
- 79001FS.00500
- Brand:
- Belden
Subtotal (1 reel of 500 metres)*
£1,696.32
(exc. VAT)
£2,035.58
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £1,696.32 | £3.393 |
*price indicative
- RS Stock No.:
- 644-606
- Mfr. Part No.:
- 79001FS.00500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Product Type | Speaker Cable | |
| Number of Cores | 2 | |
| Cross Sectional Area | 1.5 mm² | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 7.85mm | |
| Cable Length | 500m | |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Solid | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | EN 50200 PH30/PH60/PH120 + Annex E30, BS 6387 CWZ, IEC 60754‑1/‑2, IEC 60331‑2, UKCA, IEC 61034‑2, EN 60228, CE, RoHS 2, IEC 60332‑3‑24/‑25, IEC 60332‑1‑2 | |
| Jacket Colour | Red | |
| Jacket Material | Silicone Rubber | |
| Voltage | 500V | |
| Series | 79001FS | |
| Conductor Material | Bare Copper | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Product Type Speaker Cable | ||
Number of Cores 2 | ||
Cross Sectional Area 1.5 mm² | ||
Screened/Unscreened Screened | ||
Outside Diameter 7.85mm | ||
Cable Length 500m | ||
Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH) | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Solid | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals EN 50200 PH30/PH60/PH120 + Annex E30, BS 6387 CWZ, IEC 60754‑1/‑2, IEC 60331‑2, UKCA, IEC 61034‑2, EN 60228, CE, RoHS 2, IEC 60332‑3‑24/‑25, IEC 60332‑1‑2 | ||
Jacket Colour Red | ||
Jacket Material Silicone Rubber | ||
Voltage 500V | ||
Series 79001FS | ||
Conductor Material Bare Copper | ||
- COO (Country of Origin):
- NL
Belden 79001FS Series Multi-Core Microphone & Instrument Cable, 500m Cable Length, Red Jacket - 79001FS.00500
This multi-core microphone & instrument cable is a screened audio lead designed for professional and industrial environments. It connects microphones and instruments while providing enhanced safety characteristics for installations where fire performance and low toxic emissions are important.
Features and Benefits:
• Screened construction provides consistent signal integrity under interference
• Bare copper solid conductors deliver stable contact and low resistance
• Flame-retardant low-smoke formulation reduces fire propagation risk
• Silicone rubber jacket permits operation up to 90°C
• 500V rating allows use in higher-voltage audio distribution systems
• Colour-coded red jacket aids Rapid identification on complex rigs
• Bare copper solid conductors deliver stable contact and low resistance
• Flame-retardant low-smoke formulation reduces fire propagation risk
• Silicone rubber jacket permits operation up to 90°C
• 500V rating allows use in higher-voltage audio distribution systems
• Colour-coded red jacket aids Rapid identification on complex rigs
Applications
• Suitable for stage microphone runs in theatres and venues
• Ideal for instrument connections in touring sound systems
• Used for audio cabling in control rooms within industrial plants
• Can be used for low-noise signal distribution in automation panels
• Ideal for instrument connections in touring sound systems
• Used for audio cabling in control rooms within industrial plants
• Can be used for low-noise signal distribution in automation panels
What conductor size and core count does it provide?
It contains two cores, each with a 1.5mm² cross-sectional area of solid bare copper for consistent electrical continuity.
How does the cable behave in fire and smoke conditions?
The compound is low smoke zero halogen and flame-retardant, formulated to limit toxic emissions and flame spread under thermal stress.
Is the cable suitable for prolonged high-temperature exposure?
The outer silicone rubber sheath is specified to withstand continuous use at temperatures up to 90°C and down to −40°C.
What mechanical profile should installers expect?
The cable has an outside diameter of 7.85mm and is supplied on a 500m reel for long runs without frequent joins.
Which standards cover its fire resistance and emissions performance?
It meets multiple industry test regimes for fire endurance and smoke/acid gas emissions, including specified EN and IEC test categories.
